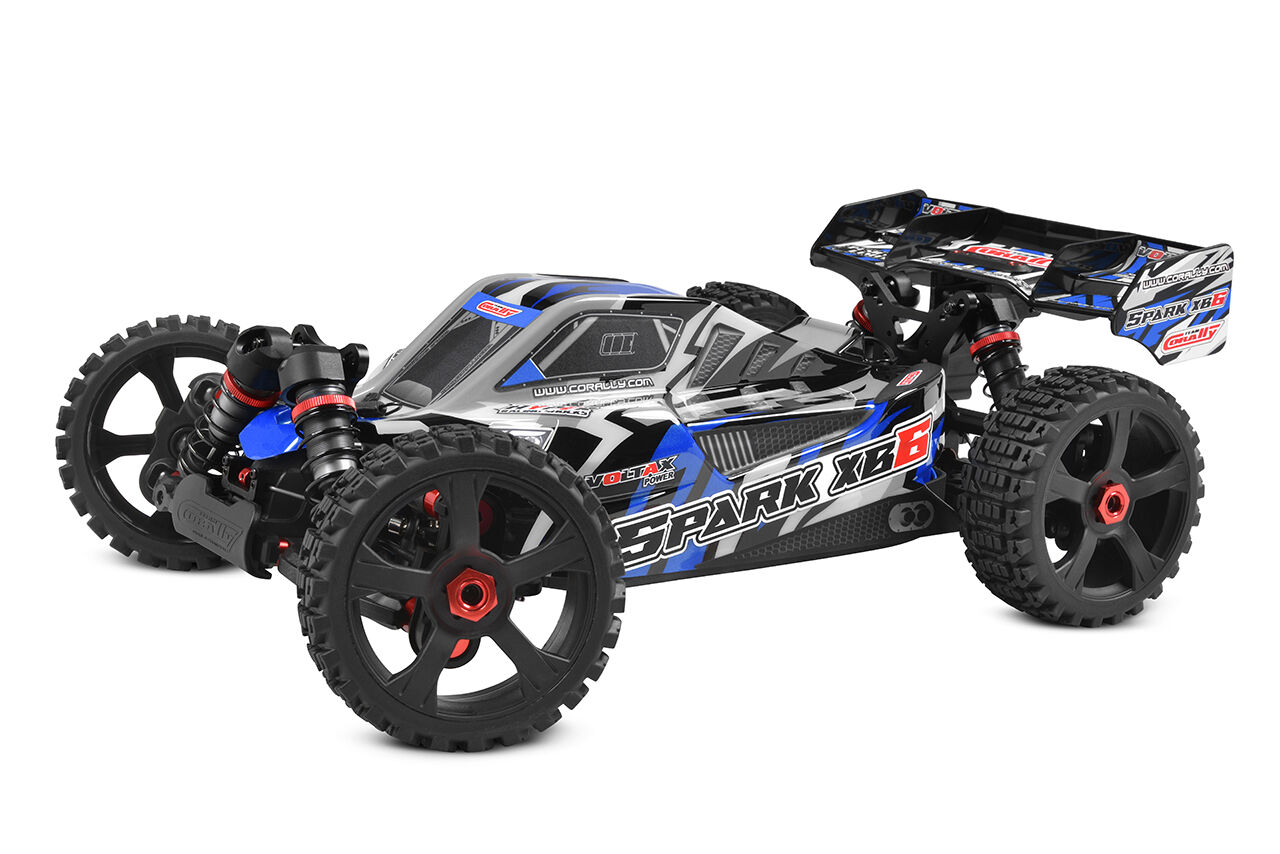

VehiclesTeam Corally Spark XB-6
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 13TStock | Stock |
| Spur | 46TStock | Stock |
| Transmission & axle | 3.31:1Stock | Stock |
| Final drive | 11.71:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Wheel hex | 17 mmStock | Stock |
| Power | ||
| Motor | 2050KVStock | Stock |
| Motor shaft | 5 mmStock | Stock |
| Battery | Up to 6SLiPoStock | Stock |
| Stock motor | Kuron 825Stock | Stock |
| Stock ESC | Torox 185Stock | Stock |
| Battery connector | XT90Stock | Stock |
| Performance | ||
| Theoretical top speed | Not published | |
| Advertised top speed | 68mphMaker's claim | Maker's claim |
| Chassis | ||
| Weight | 3.65 kg (8 lb)without batteryStock | Stock |
| Length | 495 mm19.5 inStock | Stock |
| Width | 308 mm12.1 inStock | Stock |
| Height | 175 mm6.9 inStock | Stock |
| Wheelbase | 327 mm12.9 inStock | Stock |
| Diff oil, front | 20KStock | Stock |
| Diff oil, center | 50KStock | Stock |
| Diff oil, rear | 10KStock | Stock |
| Vehicle | ||
| Part number | C-00285 | |
| Scale | 1/8 | |
| Class | Buggy | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 13T | Mod 1 | 5 mm | C-72813 (opens in a new tab) |
| Spur | 46T | Mod 1 | Not applicable | C-00180-091 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft (5 mm on the stock motor). Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Corally's product page prints Motor Pinion 13T, Spur Gear 46T, Gear Pitch MOD 1.0, Internal Drive Ratio 3.31 and Overall Drive Ratio 11.71.
- The manual (revised 2026-03-19) agrees: its speed gear chart (p. 8) marks the 13T pinion on the 46T spur as factory fitted at 11.71, and the text says the car is equipped with a 13-tooth pinion from the factory.
- Team Corally USA prints the same total as 'Gear Ratio (out of the box - RTR): 11.7'.
- The tire diameter is left blank because Corally's page prints Tire Dia. 116mm while Team Corally USA prints a 'Wheel Size (diameter, width)' of 114x42mm.
- The advertised 110 km/h (68 mph) is more than this gearing allows on 6S at 4.2V per cell with either tire figure (about 59 to 60 mph), so the claim does not confirm the ratio.
- The Torox 185 ESC is rated 3-6S and the Kuron 825 motor is 2050KV.
- Team Corally USA lists 3370g against the 3650g on Corally's page and in the manual; the maker's figure is shown.
- The roller version is C-00485.
Documents
- ManualInstruction manual, Spark XB-6 RTR C-00285 (Team Corally USA PDF) (opens in a new tab)
- Gearing chartSpeed gear chart in the Spark XB-6 RTR manual (Team Corally USA PDF) (opens in a new tab)Speed gear chart, p. 8
- Exploded viewExploded view, Spark XB-6 (Team Corally USA PDF) (opens in a new tab)
- Parts listParts list, Spark XB-6 (Team Corally USA PDF) (opens in a new tab)
Sources
- team-corally-spark-xb-6-rtr…corally.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- cor00285-b-spark-xb6-1-8-6s…corallyus.com (opens in a new tab)
- spares-spark-xb-6corally.com (opens in a new tab)
- spares-spark-xb-6corally.com (opens in a new tab)
- team-corally-spur-gear-46t-…corally.com (opens in a new tab)
- team-corally-m10-pinion-sho…corally.com (opens in a new tab)
- team-corally-electric-motor…corally.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
