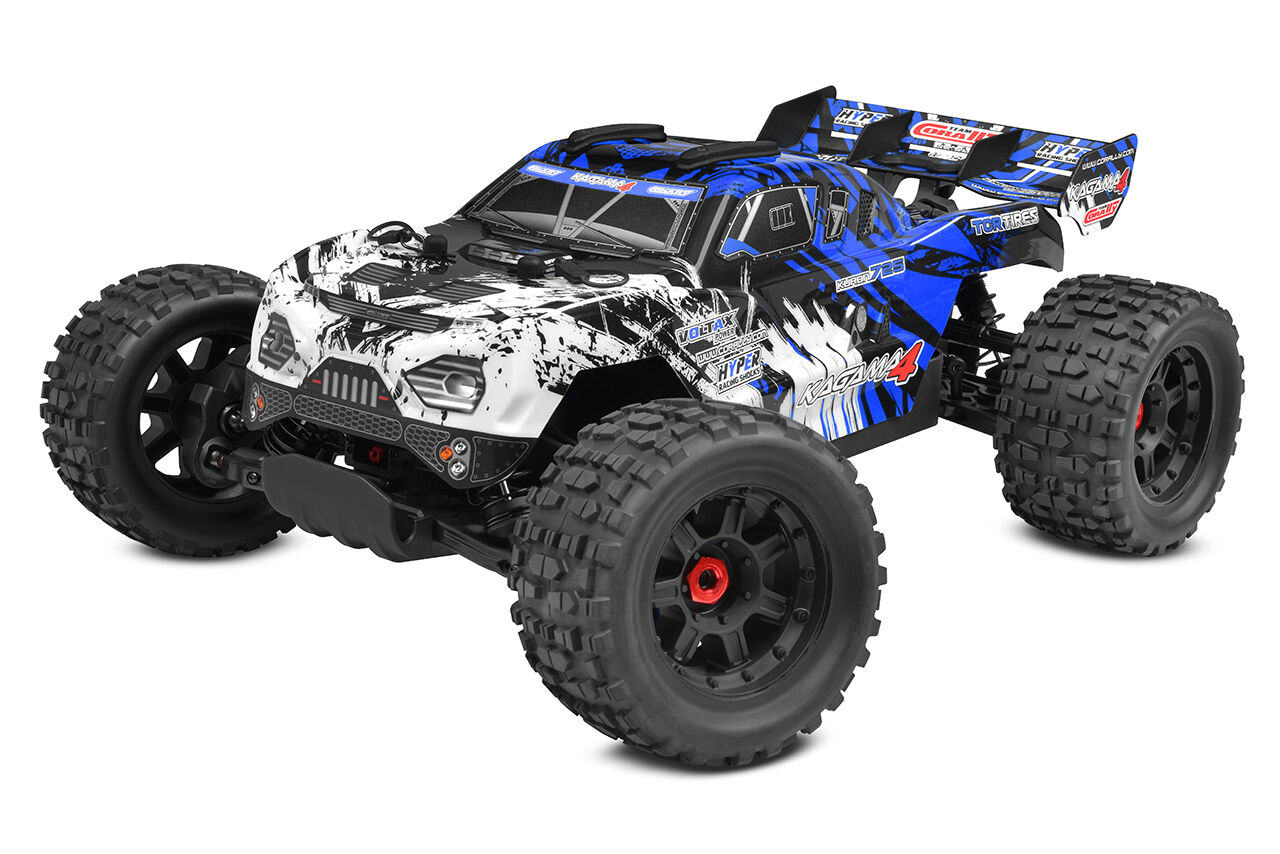

Team Corally Kagama 4

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft (5 mm on the stock motor). Linked part numbers go to the maker's or official distributor's page for that part.

How these numbers were settled

Corally's product page prints a 13T pinion, 52T spur, 3.31 internal drive ratio and 13.23 overall drive ratio, and the manual's speed gear chart (p. 8) marks the 13T pinion on the 52T spur as factory fitted at 13.23.

• The manual's spare parts list names the 13T pinion C-72813 and the 52T CNC steel spur C-00180-607, whose part page lists the Kagama 4.
• The Punisher 4 (C-00292) is the same truck with a different body, and the figures here apply to it: its product page, the same spur part page and its Corally US parts list give the 13T and 52T set, while the Punisher 4 manual's gear chart and spare parts list print the Syncro's 46T spur and 11.71.
• Tire diameter is left blank because the product page prints 133x69mm and the showroom page 134x70mm.
• Weight, length, height and battery space are left blank because the product page, the showroom page and Corally US print different figures (4000g, 4250g and 9.3 lbs for weight).
• The 75+ km/h (45+ mph) claim is above what 13.23 allows on 4S at full charge, and the manual's own chart gives 70 km/h, so no stock top speed is shown here.
• Factory shock oil is 1000CPS front and 800CPS rear; the manual gives the diff oils only as part numbers.

Documents

• ManualInstruction manual, Kagama 4 C-00293 (Team Corally PDF, Corally US) (opens in a new tab)
• Gearing chartSpeed gear chart, Kagama 4 manual (Team Corally PDF) (opens in a new tab)Speed gear chart, PDF p. 8
• Parts listParts list, Kagama 4 C-00293 (Team Corally PDF, Corally US) (opens in a new tab)

Sources

• team-corally-kagama-4-rtr-b…corally.com (opens in a new tab)
• Manual (PDF)cdn.shopify.com (opens in a new tab)
• Manual (PDF)cdn.shopify.com (opens in a new tab)
• team-corally-spur-gear-52t-…corally.com (opens in a new tab)
• kagama4world.corally.com (opens in a new tab)
• cor00293-g-kagama-4-xl4s-mo…corallyus.com (opens in a new tab)
• team-corally-m10-pinion-sho…corally.com (opens in a new tab)
• C-54054corally.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
