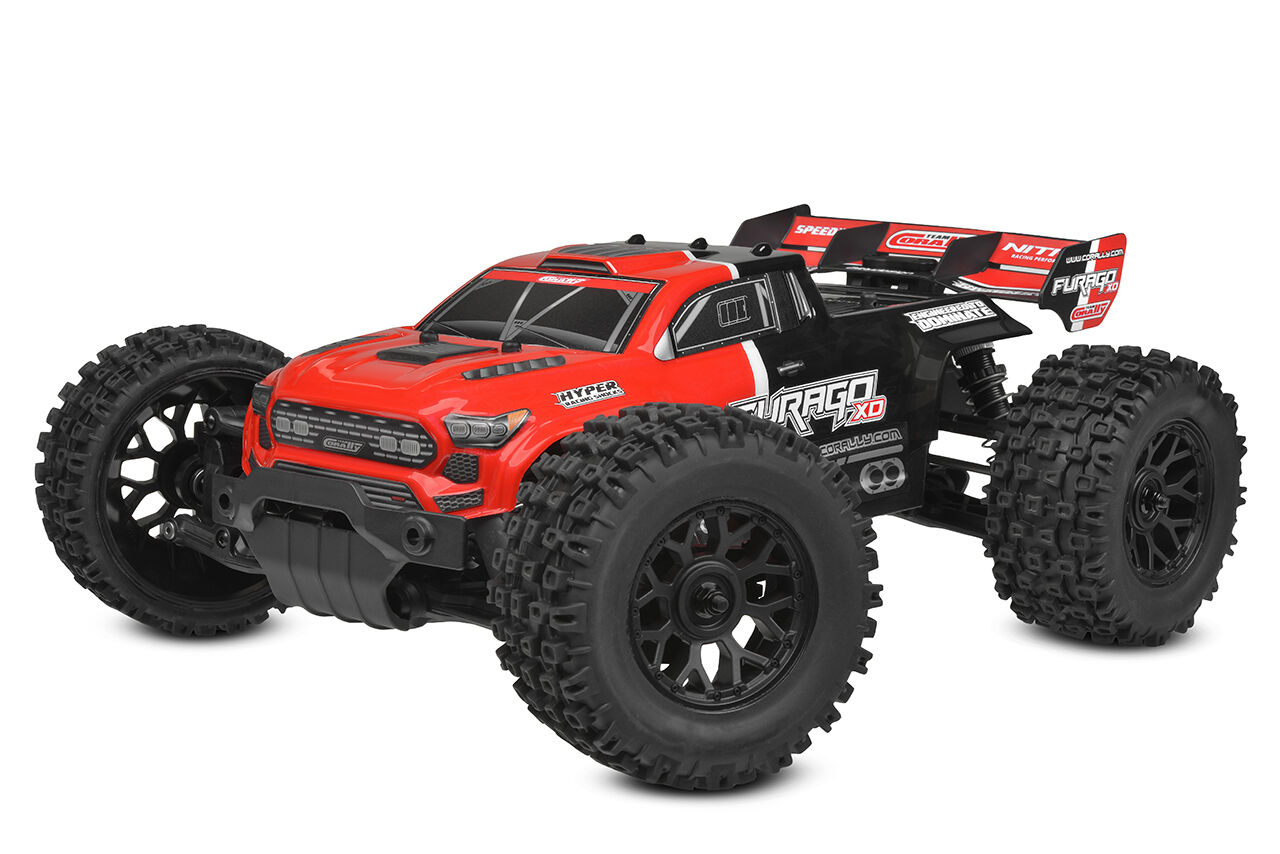

VehiclesTeam Corally Furago XD
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 19TStock | Stock |
| Spur | 74TStock | Stock |
| Transmission & axle | Not published | |
| Final drive | Not published | |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Wheel hex | 12 mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not published | |
| Battery | Up to 2SLiPoStock | Stock |
| Stock motor | Turbo 540 17TStock | Stock |
| Stock ESC | 2in1 Brushed Controller 60A + ReceiverStock | Stock |
| Battery connector | XT60Stock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Advertised top speed | 25mphMaker's claim | Maker's claim |
| Chassis | ||
| Weight | 1.6 kg (3.5 lb)without batteryStock | Stock |
| Length | 340 mm13.4 inStock | Stock |
| Width | 265 mm10.4 inStock | Stock |
| Height | 125 mm4.9 inStock | Stock |
| Wheelbase | 220 mm8.7 inStock | Stock |
| Vehicle | ||
| Part number | C-00230 | |
| Scale | 1/12 | |
| Class | Monster truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 19T | 48P | 3.14 mm | C-00230-0126 (opens in a new tab) |
| Spur | 74T | 48P | Not applicable | Not published |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Corally prints a 19T pinion and a 74T spur, both 48 pitch, with 'Gear Ratio (internal): 2.5' and 'Gear Ratio (out of the box): 10.88' on both its product page and its showroom page.
- Those figures do not agree: 74/19 x 2.5 is 9.74, while 10.88 fits a 17T pinion.
- The manual's spare parts list and the pinion's own part page (C-00230-0126, '48 DP Pinion - 19T') confirm the 19T pinion, so both ratios are left blank until Corally publishes the tooth counts after the spur.
- Tire diameter is left blank because the product page prints 99x45mm and the showroom page 100x44mm.
- The motor is a brushed Turbo 540 17T, so there is no KV, and the 60A 2in1 ESC and receiver is rated for 2S.
- The Punisher XD (C-00231) is the same truck with a different body and the same published figures throughout.
- The 40+ km/h (25+ mph) claim is for the stock truck on the included 2S pack.
- Both diffs are packed with grease rather than oil, and the shocks hold 500 CPS oil.
Documents
Sources
- team-corally-furago-xd-rtr-…corally.com (opens in a new tab)
- furago-xdworld.corally.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- C-00230-0126corally.com (opens in a new tab)
- 00230-r-furago-xd-4wd-2s-sm…corallyus.com (opens in a new tab)
- punisher-xdworld.corally.com (opens in a new tab)
- c-00230-furago-xdcorally.com (opens in a new tab)
- C-00230-0127corally.com (opens in a new tab)
- C-00230-0128corally.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
