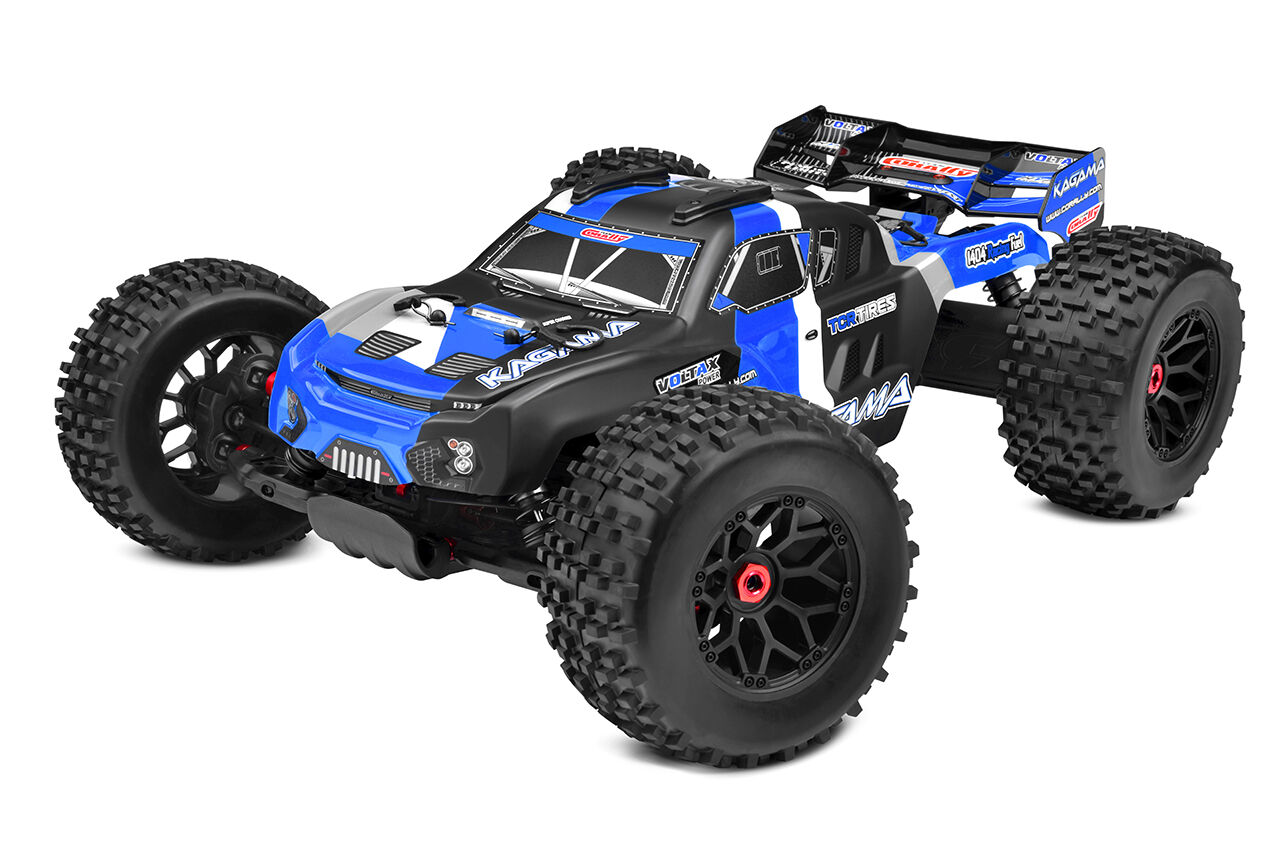

VehiclesTeam Corally Kagama XP 6S Roller
Team Corally Kagama XP 6S Roller
1/8 scale · monster truck · C-00474
- Final drive
- 13.23:1
- Tire
- 170mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 13TStock | Stock |
| Spur | 52TStock | Stock |
| Transmission & axle | 3.31:1Stock | Stock |
| Spur ÷ pinion | 4.000:1Calculated | Calculated |
| Final drive | 13.23:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 170mmStock | Stock |
| Rollout | 40.3mm per motor turnCalculated | Calculated |
| Wheel hex | 17 mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Chassis | ||
| Diff oil, front | 20KStock | Stock |
| Diff oil, center | 100KStock | Stock |
| Diff oil, rear | 10KStock | Stock |
| Vehicle | ||
| Part number | C-00474 | |
| Scale | 1/8 | |
| Class | Monster truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 13T | Mod 1 | 5 mm | C-72813 (opens in a new tab) |
| Spur | 52T | Mod 1 | Not applicable | C-00180-607 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Roller: motor, ESC, servo, radio and battery are not included, so KV and cell count are the buyer's.
- Corally's roller page prints Motor Pinion 13T, Spur Gear 52T, Gear Pitch MOD 1.0 and Overall Drive Ratio 13.23, and the roller manual's speed gear chart (p. 10) marks the 13T pinion as factory fitted.
- The roller's list of parts required for operation names a motor, ESC, servo and batteries but no pinion.
- The roller page prints the internal ratio as 3.32, while the roller manual and the RTR page print 3.31 (43T bevel gear on a 13T bevel pinion); 3.31 is shown here.
- The tire is Corally's printed Tire Dia. of 170mm.
- The roller page repeats the RTR's 5400g weight while Team Corally USA gives 4725g for the roller, so the weight is left blank.
- The ready-to-run version is C-00274.
Documents
- ManualInstruction manual, Kagama roller C-00474 (Team Corally USA PDF) (opens in a new tab)
- Gearing chartSpeed gear chart in the Kagama roller manual (Team Corally USA PDF) (opens in a new tab)Speed gear chart, p. 10
- Exploded viewExploded view, Kagama (Team Corally USA PDF) (opens in a new tab)
- Parts listParts list, Kagama (Team Corally USA PDF) (opens in a new tab)
