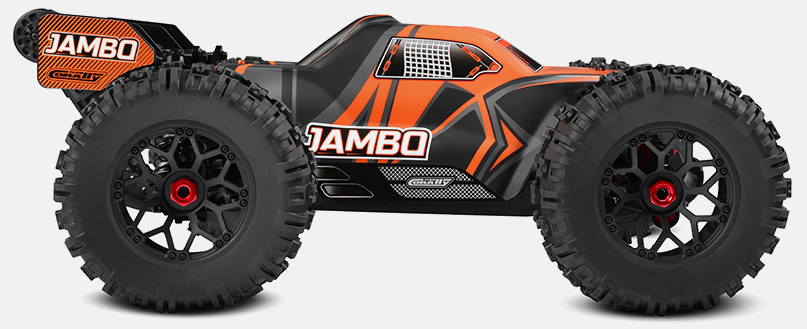

VehiclesTeam Corally Jambo XP 6S
Team Corally Jambo XP 6S
1/8 scale
- Top speed
- 69mphcalculated
- Final drive
- 13.23:1
- Tire
- 171mm
Open in Top Speedverified
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not published | |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | 13.23:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 171mmStock | Stock |
| Rollout | 40.6mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 2050KVStock | Stock |
| Battery | Up to 6SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | 68.9mph on 6SCalculated | Calculated |
| Motor speed | 45,510rpm, no loadCalculated | Calculated |
| Advertised top speed | 60mphMaker's claim | Maker's claim |
| Vehicle | ||
| Scale | 1/8 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower. The maker advertises 60 mph, which is their own claim on their own conditions.
How these numbers were settled
Corally publishes 'Gear Ratio (out of the box): 13.23 (MOD.1)' and 'Wheel Size (diameter, width): 171x88mm'.
- Kuron 825 2050kV, 4-6S.
- The advertised 100+ km/h (60 mph) is 77% of the 78.2 mph this gearing allows at 4.2V/cell.
- Pinion and spur are not published.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
