Tamiya TD2 Chassis

Name: Tamiya TD2
Brand: Tamiya

1/10 scale · 2WD buggy chassis · sold as kits

Tamiya's TD2 is a 1/10 rear-wheel-drive buggy chassis built from a kit, with a monocoque frame, a mid-mounted motor and a ball differential, sold as the Astute.

It pairs the 70T spur with a 2.60:1 gearbox and axle stage on a 284 mm wheelbase. Tamiya's chart for that spur runs from 7.28:1 on a 25T pinion to 11.38:1 on a 16T, so the pinion you fit sets the gearing. The pinion, motor and tires come with each kit rather than with the chassis, so enter yours in the gearing tool.

Transmission & axle: 2.60:1
Spur: 70T
Wheelbase: 284mm
Introduced: 2022

Gearing Top speedverified

The pinion, motor and tires come with each kit: enter yours in the gearing tool.

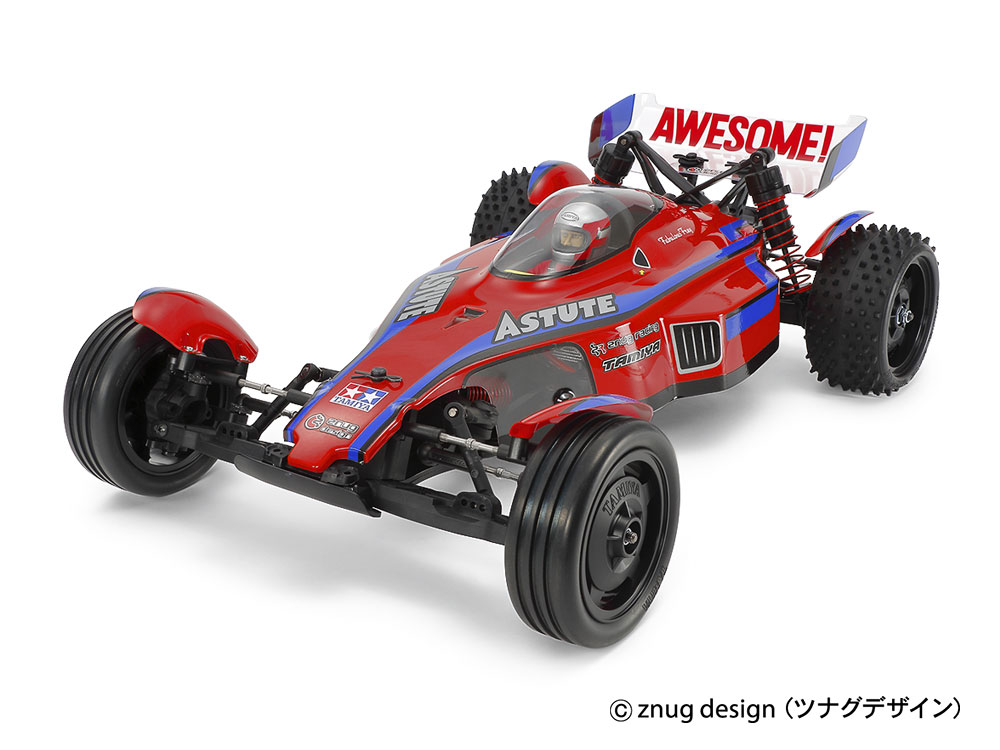

Tamiya TD2 — Photo: Tamiya (opens in a new tab)

Kits on this chassis Built on the TD2

Each kit adds its own body, tires, pinion and motor. The chassis figures below apply to all of them.

Kit	Part no.	Maker page

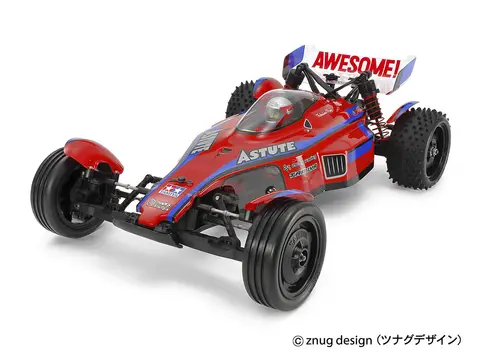

Astute 2022	58697	tamiya.comPage (opens in a new tab)

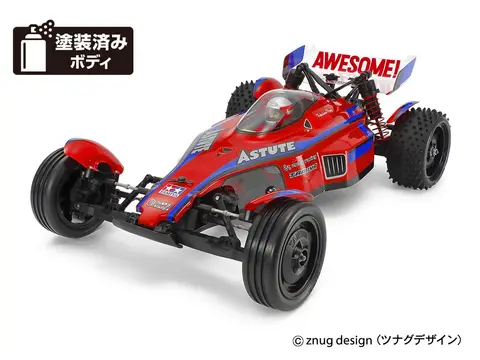

Astute 2022 Painted Body	47482	tamiya.comPage (opens in a new tab)

Specifications

Last modified Sep 28, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Buggies are low, light off-road cars built for jumps and fast corners on dirt, clay or turf tracks. Drive Only one axle is driven, the rear on almost every 2WD RC car. It is lighter and simpler, and it takes more throttle control on loose ground. Build A kit you build yourself from parts. Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body. The manual lists what to add. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
Class	Buggy
Drive	2WD
Build	Kit
Scale	1/10
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. Final drive How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed. The range comes from the maker's gearing chart for the pinions it lists.
Pinion	With each kit
Spur	70TStock	Stock
Transmission & axle	2.60:1Stock	Stock
Final drive	7.28 to 11.38:1 on 25T to 16T pinionsMaker's chart	Maker's chart
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. Race tires wear down over a day, and a smaller tire gears the car shorter.
Tire diameter	With each kit
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	With each kit
Battery	With each kit
Size & weight
Wheelbase The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly.
Wheelbase	284 mm11.2 inStock	Stock

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
With each kit means each kit on this chassis brings its own, so enter yours in the gearing tool.
Maker’s chart is the ratios the maker prints for this chassis with the pinions it names.

How these numbers were settled

Every TD2 kit shares the 70T spur and the gearbox and axle stage after it.

The Astute 2022 manual names the 70T spur gear (MA27, PDF p. 4) and prints the formula 'Spur gear teeth (70T) / Pinion gear teeth x 2.6', with a pinion chart for the kit 70T spur, 11.38:1 on a 16T pinion to 7.28:1 on a 25T, the kit 17T marked at 10.71:1 (PDF p. 25).
Tamiya's page prints the same 'Gear Ratio = 10.71:1'.
Rear-wheel drive with a ball differential in a sealed gearbox and a mid-mounted motor, per Tamiya's page, which prints a 284mm wheelbase.
The pinion, motor and tires come with each kit, so they are not part of the chassis figures: enter yours in the gearing tool.

Sources

Every figure on this page traces to one of these; where they disagreed, the note above says which was used and why. Links open in a new tab.

Maker documents

Astute 2022 (TD2) instruction manual (Tamiya PDF) (opens in a new tab)70T spur MA27, PDF p. 4; gearing chart Setting up, PDF p. 25d7z22c0gz59ng.cloudfront.netUsed forMain specs

Parts and electronics

Products 58697 (opens in a new tab)tamiya.comUsed forMain specsSize
Products 58697 (opens in a new tab)tamiya.comUsed forMain specsSize
TD2 parts catalog (PDF) (opens in a new tab)d7z22c0gz59ng.cloudfront.netUsed forMain specs
