Tamiya MB-01 Chassis

Name: Tamiya MB-01
Brand: Tamiya

1/10 scale · 2WD chassis · sold as kits

Tamiya's MB-01 is a 1/10 two-wheel-drive chassis that you build from a kit, sold under compact classic and touring car bodies.

Every kit on it shares the 65T spur and a 2.60:1 gearbox and axle stage, and the chassis builds to three wheelbases, 210 mm, 225 mm and 239 mm, with front or rear drive chosen at assembly. A larger pinion gives more top speed and a smaller one more punch out of slow corners. The pinion, motor and tires come with each kit rather than with the chassis, so enter yours in the gearing tool.

Transmission & axle: 2.60:1
Spur: 65T
Wheelbase: 210 / 225 / 239mm
Introduced: 2023

Gearing Top speedsourced

The pinion, motor and tires come with each kit: enter yours in the gearing tool.

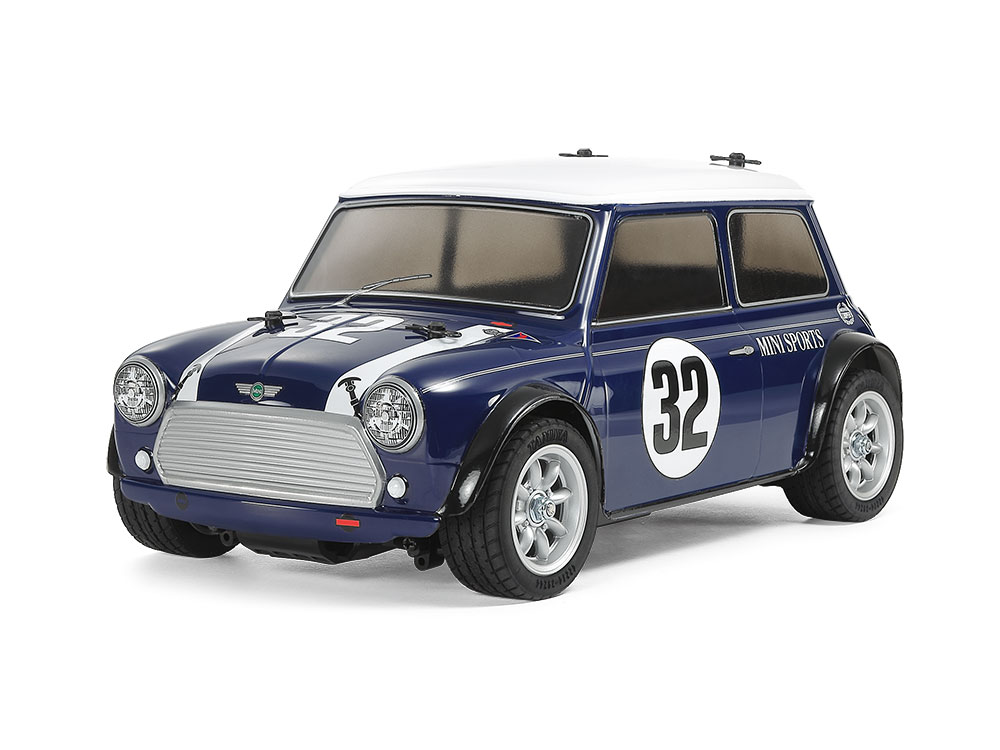

Tamiya MB-01 — Photo: Tamiya (opens in a new tab)

Kits on this chassis Built on the MB-01

Each kit adds its own body, tires, pinion and motor. The chassis figures below apply to all of them.

Kit	Part no.	Maker page
Mini Cooper Racing	58747	tamiya.comPage (opens in a new tab)
Mini Cooper Racing Blue Painted Body	47515	tamiya.comPage (opens in a new tab)
Volkswagen Golf II GTI 16V	58748	tamiya.comPage (opens in a new tab)
Citroën DS	58734	tamiya.comPage (opens in a new tab)
Alfa Romeo Giulia Sprint GTA Club Racer	58732	tamiya.comPage (opens in a new tab)

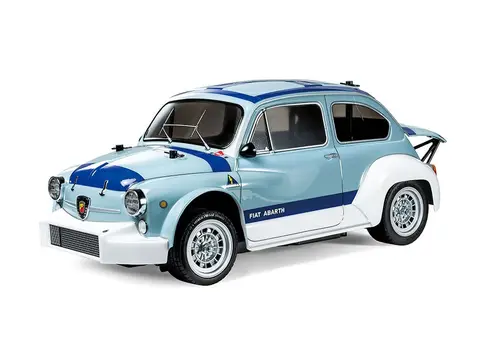

Fiat Abarth 1000 TCR Berlina Corse	58721	tamiya.comPage (opens in a new tab)

Specifications

Last modified Sep 29, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Touring cars are 4WD on-road cars for asphalt and carpet tracks, often raced in classes with fixed motor and battery rules. The maker does not name a class for this one, so this is the site's judgment from its design. Drive Only one axle is driven, the rear on almost every 2WD RC car. It is lighter and simpler, and it takes more throttle control out of corners. Build A kit you build yourself from parts. Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body. The manual lists what to add. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
Class	Touringour call
Drive	2WD
Build	Kit
Scale	1/10
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. This one is worked out from the tooth counts the maker publishes. Final drive How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed. On-road racers often compare gearing by rollout instead, because tire sizes differ between cars.
Pinion	With each kit
Spur	65TStock	Stock
Transmission & axle	2.60:1Derived	Derived
Final drive	With each kit
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. Race tires wear down over a day, and a smaller tire gears the car shorter.
Tire diameter	With each kit
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	With each kit
Battery	With each kit
Size & weight
Wheelbase The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly. This chassis can be set to more than one wheelbase.
Wheelbase	210 or 225 or 239mm, 3 settingsStock	Stock

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how.
With each kit means each kit on this chassis brings its own, so enter yours in the gearing tool.

How these numbers were settled

Every MB-01 kit shares the 65T spur and the gearbox and axle stage after it.

Tamiya's Mini Cooper Racing page prints 'ギヤ比＝5.83(キット標準の29Tピニオン/65Tスパーギヤ使用時）' (5.83:1 with the kit-standard 29T pinion and 65T spur), so the ratio after the spur is derived: 5.83 x 29/65 = 2.60.
Every current MB-01 kit page prints the same 5.83:1 on the 29T pinion, and Tamiya says the gearbox takes the TT-02 hop-up differentials.
The pinion, motor and tires come with each kit, so they are not part of the chassis figures: enter yours in the gearing tool.
Tamiya says the chassis 'gives a choice of three types of wheelbase': the kit pages print 210mm (short), 225mm (middle) and 239mm (long), so all three are shown.
Front or rear drive is chosen at assembly by turning the final gears and steering linkage around.

Sources

Every figure on this page traces to one of these; where they disagreed, the note above says which was used and why. Links open in a new tab.

Maker documents

Mini Cooper Racing (MB-01) assembly manual (Tamiya PDF) (opens in a new tab)d7z22c0gz59ng.cloudfront.net

Parts and electronics

Products 58747 (opens in a new tab)tamiya.comUsed forMain specs
Products 58721 (opens in a new tab)tamiya.comUsed forMain specs
Products 58748 (opens in a new tab)tamiya.comUsed forMain specs
Products 58734 (opens in a new tab)tamiya.comUsed forMain specs
Products 58732 (opens in a new tab)tamiya.comUsed forMain specs
Products 47515 (opens in a new tab)tamiya.comUsed forMain specs
