Tamiya BT-01 Chassis

Name: Tamiya BT-01
Brand: Tamiya

1/10 scale · 2WD chassis · sold as kits

Tamiya's BT-01 is a 1/10 two-wheel-drive chassis that builds as front-wheel or rear-wheel drive, sold as kits under classic touring and sports car bodies.

Every kit shares the 70T spur and the 2.60:1 gearbox and axle stage, with wheelbases of 251 mm and 257 mm. The pinion, motor and tires come with each kit. With only two driven wheels, a smaller pinion helps traction out of slow corners.

Transmission & axle: 2.60:1
Spur: 70T
Wheelbase: 251 / 257mm
Introduced: 2024

Gearing Top speedverified

The pinion, motor and tires come with each kit: enter yours in the gearing tool.

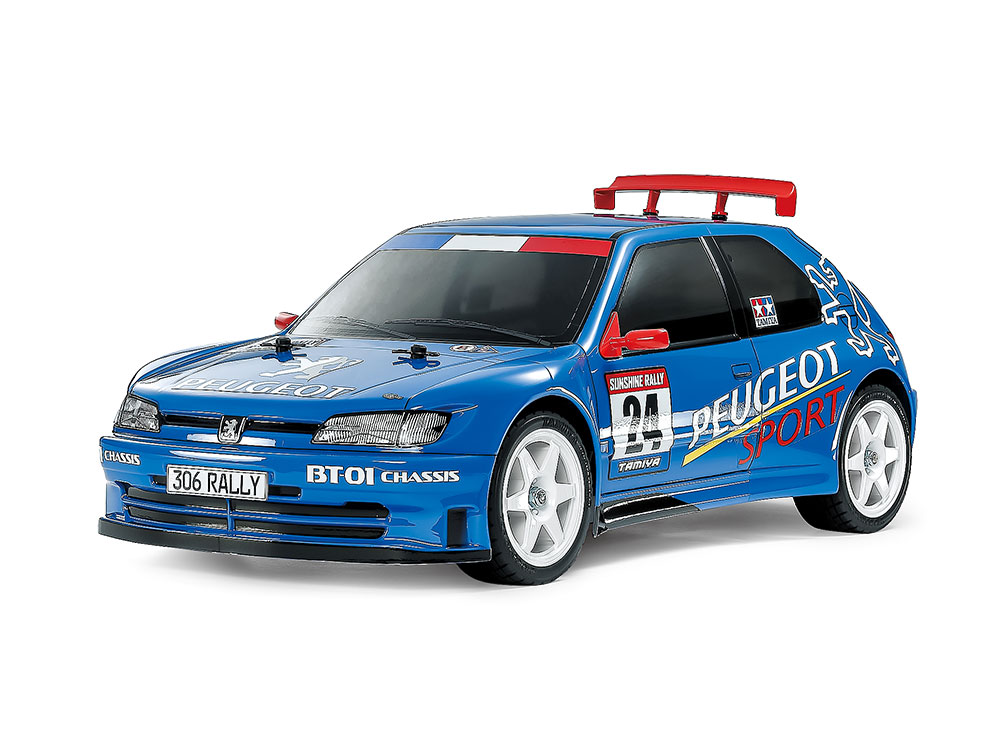

Tamiya BT-01 — Photo: Tamiya (opens in a new tab)

Kits on this chassis Built on the BT-01

Each kit adds its own body, tires, pinion and motor. The chassis figures below apply to all of them.

Kit	Part no.	Maker page
Peugeot 306 Maxi	58746	tamiya.comPage (opens in a new tab)
Porsche 911 Carrera RSR 2.8	58740	tamiya.comPage (opens in a new tab)
Toyota Supra (JZA80)	58733	tamiya.comPage (opens in a new tab)

Specifications

Last modified Sep 29, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Touring cars are 4WD on-road cars for asphalt and carpet tracks, often raced in classes with fixed motor and battery rules. The maker does not name a class for this one, so this is the site's judgment from its design. Drive Only one axle is driven, the rear on almost every 2WD RC car. It is lighter and simpler, and it takes more throttle control out of corners. Build A kit you build yourself from parts. Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body. The manual lists what to add. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
Class	Touringour call
Drive	2WD
Build	Kit
Scale	1/10
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. This one is worked out from the tooth counts the maker publishes. Final drive How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed. On-road racers often compare gearing by rollout instead, because tire sizes differ between cars.
Pinion	With each kit
Spur	70TStock	Stock
Transmission & axle	2.60:1Derived	Derived
Final drive	With each kit
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. Race tires wear down over a day, and a smaller tire gears the car shorter.
Tire diameter	With each kit
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	With each kit
Battery	With each kit
Size & weight
Wheelbase The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly. This chassis can be set to more than one wheelbase.
Wheelbase	251 or 257mm, 2 settingsStock	Stock

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how.
With each kit means each kit on this chassis brings its own, so enter yours in the gearing tool.

How these numbers were settled

BT-01 is a two-wheel-drive chassis built as front-wheel drive or rear-wheel drive, with standard and short wheelbases.

Every kit page prints 'ギヤ比＝8.27：1(キット標準22Tピニオン使用時)', and Tamiya's 2024 Grand Prix rules list the BT-01 on 70T/25T at 7.27:1.
Both give the stage after the 70T spur: 8.27 x 22/70 = 2.599 and 7.27 x 25/70 = 2.596, so 2.6 is derived.
The pinion, motor and tires come with each kit.
The kit pages print 257mm (standard) and 251mm (short), so both wheelbases are shown.

Sources

Every figure on this page traces to one of these; where they disagreed, the note above says which was used and why. Links open in a new tab.

Maker documents

BT-01 (MR-L) instruction manual (Tamiya PDF) (opens in a new tab)d7z22c0gz59ng.cloudfront.net

Parts and electronics

Products 58746 (opens in a new tab)tamiya.comUsed forMain specs
Products 58740 (opens in a new tab)tamiya.comUsed forMain specs
Products 58733 (opens in a new tab)tamiya.comUsed forMain specs
REGULATION2024RCCGP (PDF) (opens in a new tab)tamiya.comUsed forMain specs
