Redcat Racing Wendigo Builder's Kit

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.

How these numbers were settled

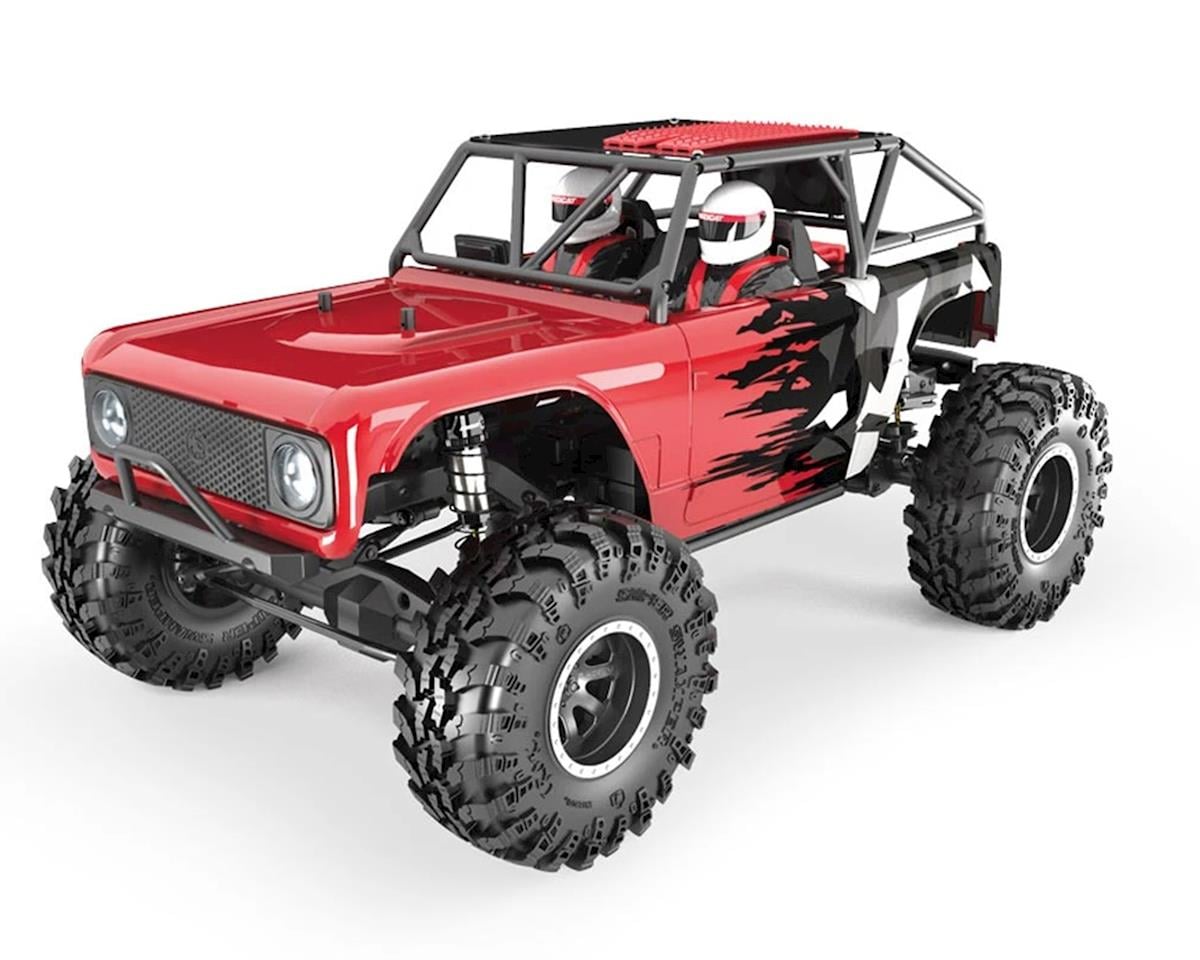

Unassembled kit version of the Wendigo.

• HobbyTown reproduces Redcat's not-included list, '2 Channel Radio System (minimum), ESC, Motor, Servo, Battery, AA Batteries, Charger, Polycarbonate Paint, Tools', so the buyer supplies the whole power system: KV, cell count, the pinion and hence the final drive do not apply to this SKU.
• The gearbox is the same as the RTR's, so the 8.61 ratio after the spur, computed from Redcat's published stage ratios (20/13 x 25/13 x 32/11), applies, and the 45T spur is confirmed by Redcat's RER11358 parts page, which lists WENDIGO KIT by name.
• Tires and wheels are in the box (licensed Interco Super Swamper 2.2in TC5 on Raceline Avengers) but Redcat publishes no diameter, so the tire diameter is a genuine unknown, not a figure that does not apply.

Sources

• p1247354hobbytown.com (opens in a new tab)
• redcat-wendigo-1-10-4wd-rtr…rccaraction.com (opens in a new tab)
• rer11358redcatracing.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
