VehiclesRedcat Racing Everest-16

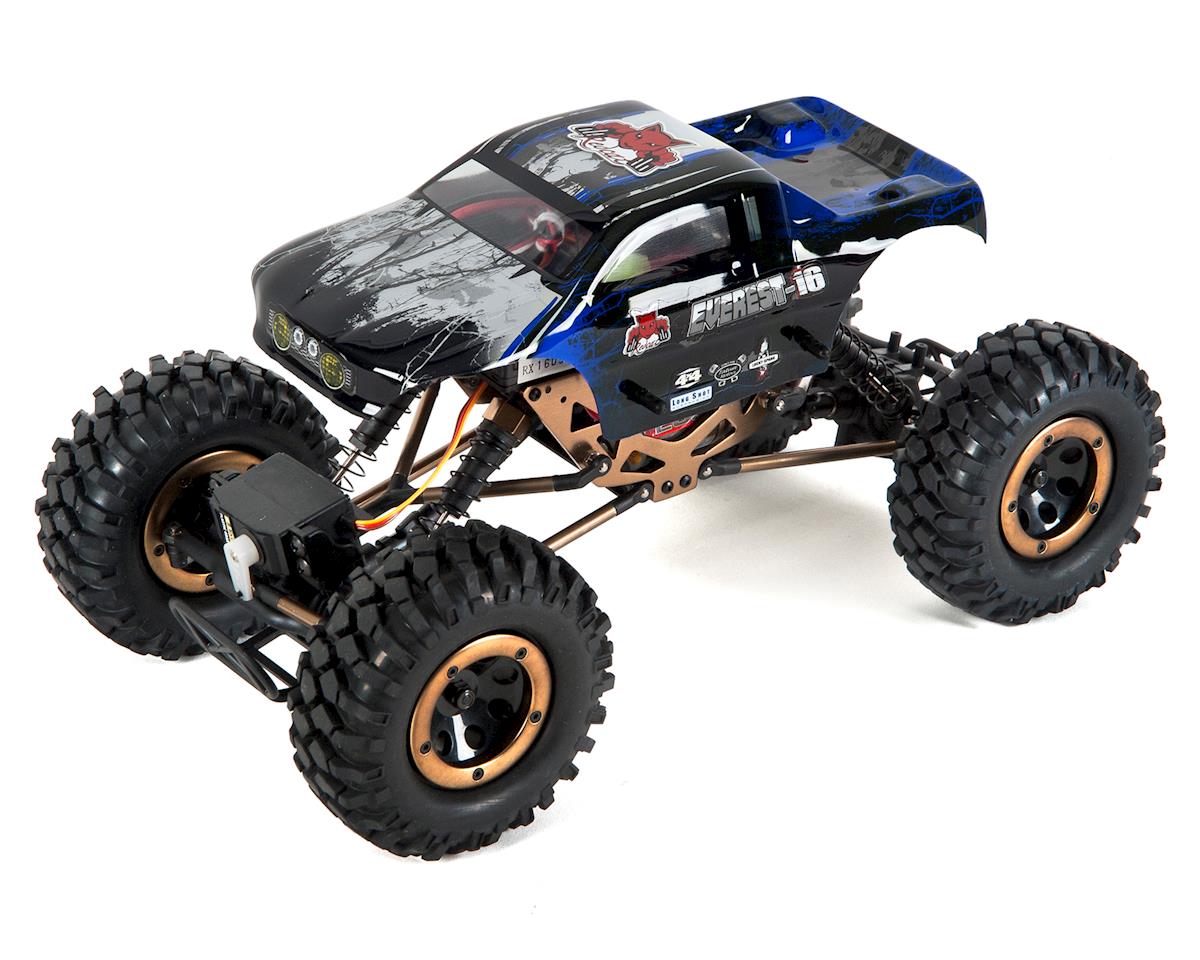

Redcat Racing Everest-16
1/16 scale · scale crawler · REREVEREST-16-BLUE
- Final drive
- 88.00:1
- Tire
- 95mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 14TStock | Stock |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | 88.00:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 95mmStock | Stock |
| Rollout | 3.4mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not published | |
| Battery | Not published | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | REREVEREST-16-BLUE | |
| Scale | 1/16 | |
| Class | Scale crawler | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 14T | Not published | Not published | 68054 |
| Spur | Not published | Not recorded | Not applicable | Not recorded |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft.
How these numbers were settled
Redcat's Everest-16 manual is a single parts and exploded-view sheet, and its specification table prints 'Gear Ratio 1:88', 'Diameter of Wheel 95mm' and 'Width of Wheel 34mm'.
- The 88:1 is taken as the complete reduction: the table gives no other ratio, and 88:1 on a 260-size motor gives a crawler's walking pace, where 88 before the axles would not.
- The 95mm can only be the tire, since a 1/16 wheel rim is far smaller.
- The same sheet lists the pinion as '68054 - Motor Gear (14T)' and the axle main gear as 38T (68009), but the transmission ships as a complete gearbox (68025) with no tooth counts, so the spur and the ratio after it are left blank.
- The motor is an RC260 brushed can, so no KV.
- The 25A brushed ESC ships with a 7.2V NiMH pack and no LiPo rating is published, so the cell count is left blank.
- The sheet's dimensions (305mm long, 170mm wide, 135mm high) match the retail listing, which gives the wheelbase as 225mm where the sheet says 215mm.
Documents
- Parts listEverest-16 parts and exploded-view sheet (image) (opens in a new tab)Spare Part table, top left: 68054, 68050
Sources
- viewdrive.google.com (opens in a new tab)
- manualsredcatracing.com (opens in a new tab)
- p467040hobbytown.com (opens in a new tab)
- p467040amainhobbies.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
