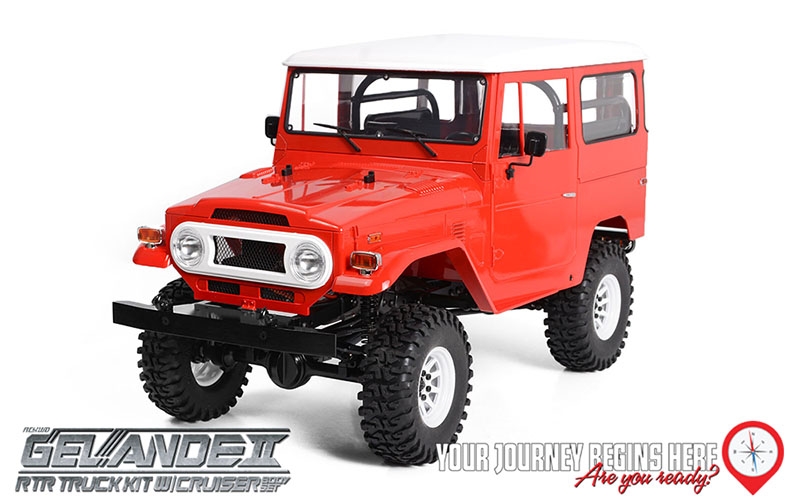

RC4WD Gelande II RTR Cruiser (Red, Tomahawk tires)

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft.

How these numbers were settled

RC4WD's manual for this Gelande II Cruiser RTR prints the whole drivetrain: a 14T pinion on a 64T spur (4.57:1), the R3 single-speed transmission at 1.78:1, the Hammer transfer case at 1.47:1 and 15/40 axle gears at 2.67:1, for a printed final drive of 31.9:1.

• The ratio after the spur is the product of the three printed stages, 1.78 x 1.47 x 2.67 = 6.99, and 64/14 x 6.99 = 31.94 matches the printed total.
• The motor is RC4WD's 45T brushed 540 crawler can, so there is no KV.
• This earlier Cruiser RTR ships on Tomahawk 1.9 scale tires; no maker outer diameter for them was read, so the tire size is left blank.
• The Outcry III ESC is rated '2-3S LiPo or 5-9 NiMH' in RC4WD's own ESC sheet; the truck ships with a 6-cell NiMH pack.
