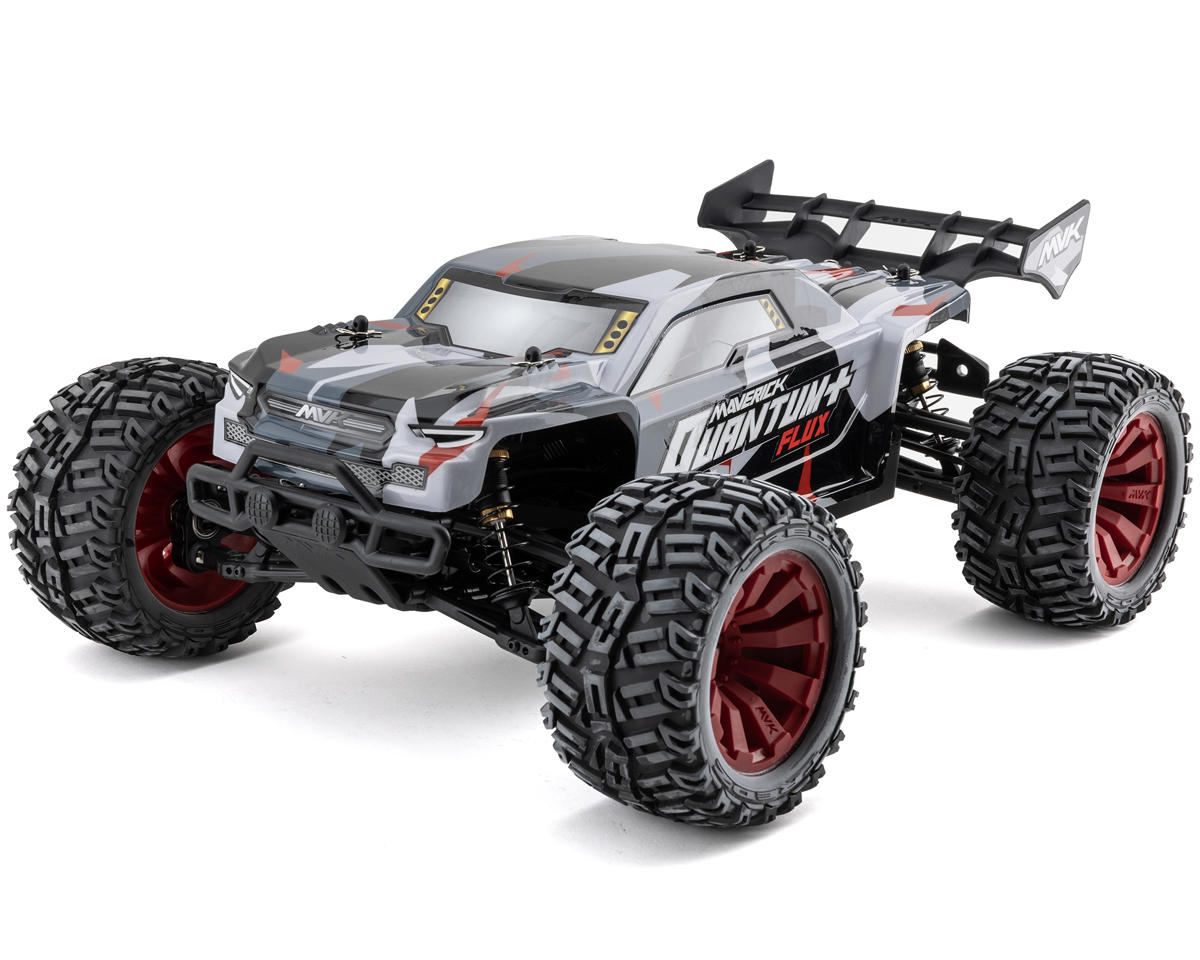

Maverick Quantum+ XT Flux
1/10 scale · 150301
- Top speed
- 42mphcalculated
- Final drive
- 12.56:1
- Tire
- 130mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 12TStock | Stock |
| Spur | 49TStock | Stock |
| Transmission & axle | 3.08:1Derived | Derived |
| Spur ÷ pinion | 4.083:1Calculated | Calculated |
| Final drive | 12.56:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 130mmStock | Stock |
| Rollout | 32.5mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 3100KVStock | Stock |
| Motor shaft | 5 mmStock | Stock |
| Battery | Up to 3SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | 41.7mph on 3SCalculated | Calculated |
| Motor speed | 34,410rpm, no loadCalculated | Calculated |
| Vehicle | ||
| Part number | 150301 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 12T | Mod 1 | 5 mm | 150256 (opens in a new tab) |
| Spur | 49T | Mod 1 | Not applicable | 150255 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft (5 mm on the stock motor). Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The kit page states '3S Optimized Gearing - 49T spur/12T Pinion', and the quick start guide's parts list names the same 12T Mod 1 pinion and 49T spur.
- The quick start guide's parts list names the 40T/13T differential bevel gear set and no other reduction after the spur, so the after-spur ratio is worked out as 40/13 = 3.08; the train is read from the parts list, as no gearing diagram is printed.
- The total is 49/12 x 3.08 = 12.56.
- The kit's standard parts list names the Tredz Entanglement tire, 130x70mm (3.2in) on its part page.
- The kit page lists a 3665 3100KV brushless motor and a 100A ESC and calls the truck '3S LiPo Capable'.
Documents
- ManualQuantum+ instruction manual (Maverick PDF) (opens in a new tab)Parts list, p. 13
- Exploded viewQuantum+ exploded diagram (Maverick PDF) (opens in a new tab)
Sources
- 150301hpiracing.com (opens in a new tab)
- Manual (PDF)hpiracing.com (opens in a new tab)
- 150245hpiracing.com (opens in a new tab)
- 150256hpiracing.com (opens in a new tab)
- 150255hpiracing.com (opens in a new tab)
- 150239hpiracing.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
