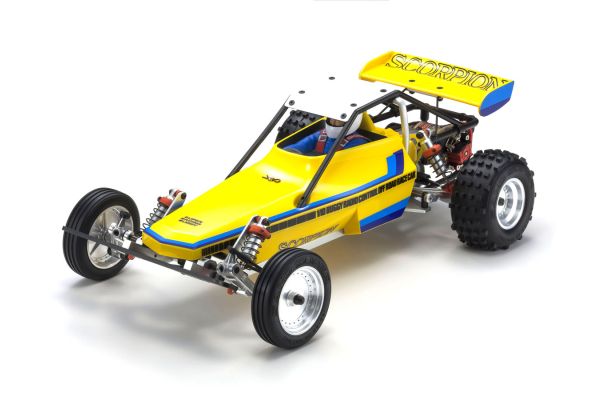

VehiclesKyosho Scorpion 2014
Kyosho Scorpion 2014
1/10 scale · buggy · 30613D
- Tire
- 85mm
Sold without a motor, so there is no stock KV: compare gearing by rollout.
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Vehicle | ||
| Class | Buggy | |
| Drive | 2WD | |
| Power | Motor not included | |
| Scale | 1/10 | |
| Part number | 30613D | |
| Drivetrain | ||
| Pinion | Not applicable | |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | Not published | |
| Wheels & tires | ||
| Tire diameter | 85mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
How these numbers were settled
A reissue of the 2014 Scorpion buggy, released in September 2023 and since discontinued.
- Kyosho's Technical Data gives two gear ratios, an H setting of 6.9:1 and an L setting of 8.3:1, with both gear sets in the kit and neither marked as fitted, so the overall ratio is left blank.
- The rear tire measures 85 by 41mm, while the front is 75 by 20mm, and the weight is about 985 grams without the radio system and battery.
- These are the same tire and gear figures as the Tomahawk, released the same month, though Kyosho lists it under its own body and chassis name.
- The gearbox and oil shocks come pre-assembled, and the 540-class motor, speed controller and battery are sold separately.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
