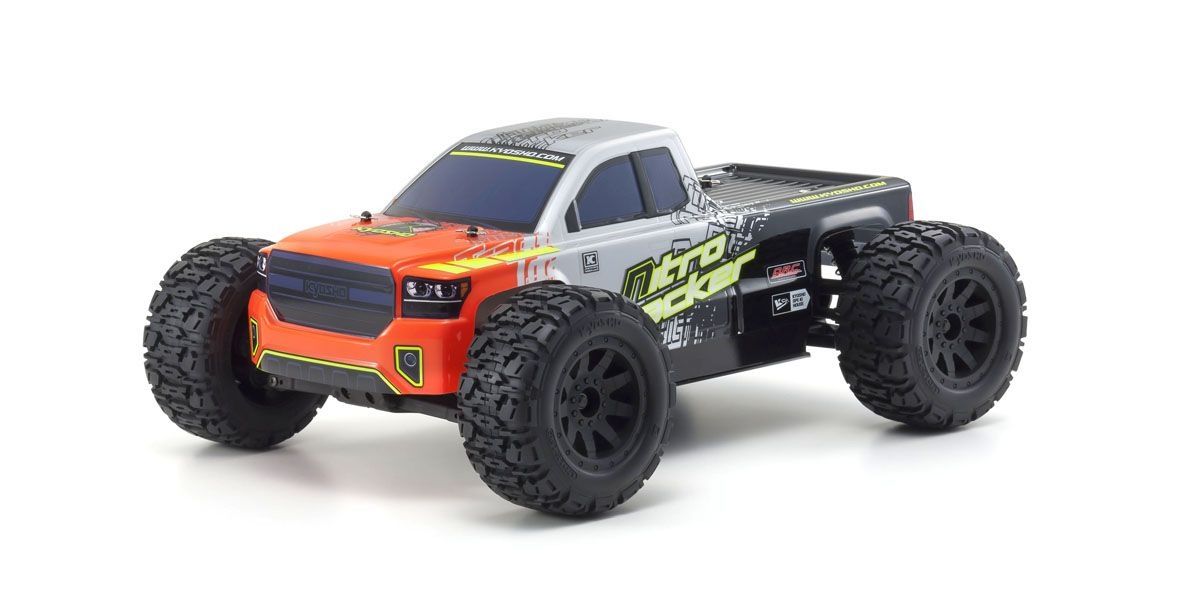

Kyosho Nitro Tracker Readyset

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

In our catalog, half of 1/10 monster trucks run between 11.0:1 and 15.2:1 on stock gearing; this one is 13.9:1. What's a normal final drive for your RC?

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.

Buying a new pinion or spur? Check what’s fitted first: Why your RC's gear specs might not add up

How these numbers were settled

The 1/10 Nitro Tracker runs a KE15SP engine through a 2-speed automatic transmission with a radio-shifted reverse (QRC).

• Kyosho's Technical Data gives 'Forward (1st) 20.9:1 / (2nd) 13.9:1' and 'Reverse (1st) 24.1:1 / (2nd) 16.0:1'; second gear forward, 13.9:1, is shown here.
• The spare parts list names the 2-speed clutch bell as 11T-15T (NT025) and the spur set as 43T/39T (NT015).
• The pairing, 15T on 39T for second gear and 11T on 43T for first, is worked out rather than printed: both pairs add up to 54 teeth, and only that pairing matches the step between Kyosho's two forward ratios (20.9 / 13.9 = 1.50, and (43/11) / (39/15) = 1.50).
• That puts the ratio after the spur at 13.9 x 15 / 39 = 5.35.
• The tires are 'φ120×56mm'.
• Kyosho lists this Readyset as discontinued (sale date July 2019).

Documents

• ManualInstruction manual, Nitro Tracker (Kyosho PDF) (opens in a new tab)
• Exploded viewExploded view, Nitro Tracker (Kyosho PDF) (opens in a new tab)
• Parts listSpare and option parts list, Nitro Tracker (Kyosho PDF) (opens in a new tab)NT015 p. 1

Sources

• 33101rc.kyosho.com (opens in a new tab)
• Manual (PDF)kyosho.com (opens in a new tab)
• 1rc.kyosho.com (opens in a new tab)
• nt015rc.kyosho.com (opens in a new tab)
• nt025rc.kyosho.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
