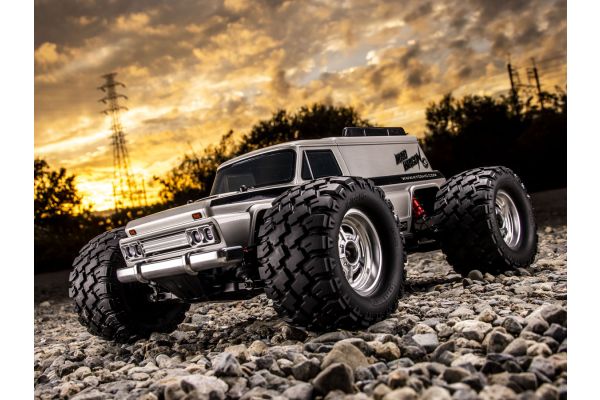

VehiclesKyosho KB10W Mad Wagon Kit
Kyosho KB10W Mad Wagon Kit
1/10 scale · 34702
- Final drive
- 15.22:1
- Tire
- 128mm
Sold without a motor, so there is no stock KV: compare gearing by rollout.
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Vehicle | ||
| Drive | 4WD | |
| Power | Motor not included | |
| Build | Kit | |
| Scale | 1/10 | |
| Part number | 34702 | |
| Drivetrain | ||
| Pinion | Not applicable | |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | 15.22:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 128mmStock | Stock |
| Rollout | 26.4mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
How these numbers were settled
A 1/10 electric 4WD monster truck kit released in April 2024 and since discontinued.
- Kyosho's Technical Data gives a 15.22:1 gear ratio and a 128 by 70mm tire, with a weight of about 3,610 grams.
- The motor, speed controller and battery are sold separately, and Kyosho does not print the spur count or the transmission ratio for this kit.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
