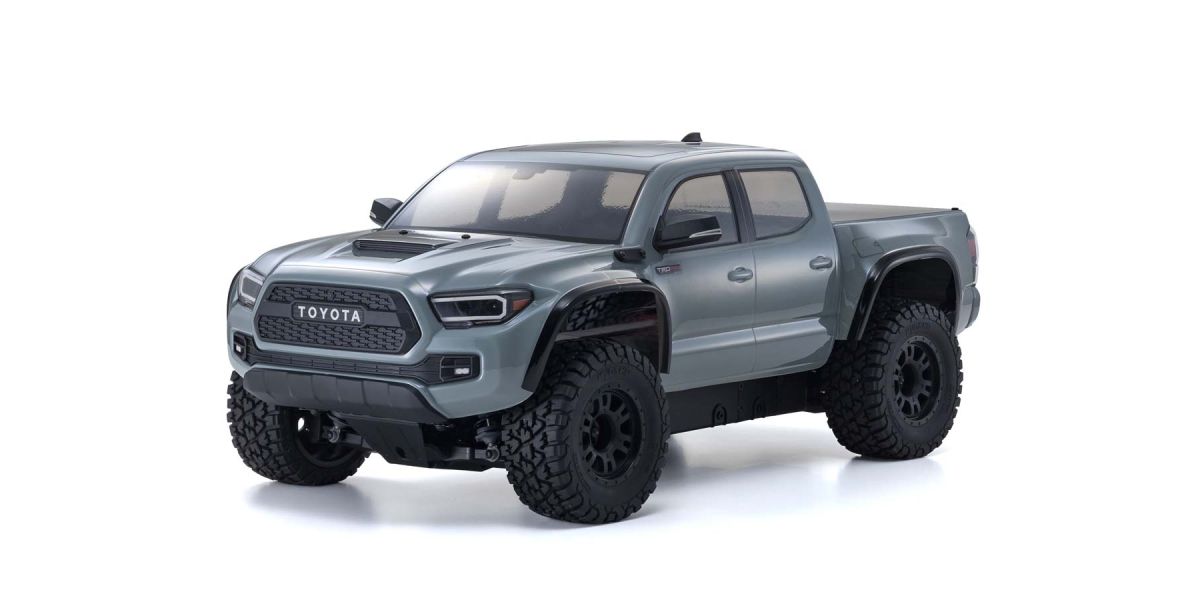

Kyosho KB10L 2021 Toyota Tacoma TRD Pro Readyset

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not published means it exists but no source we could find prints it. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower.

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.

How these numbers were settled

Kyosho's Technical Data gives 'Gear Ratio 10.41:1' and 'Tires (F & R) φ110 x 47mm'.

• The manual's primary gear ratio chart (p. 32) marks the 19T pinion on the 46T spur as standard at 2.42, and runs from 12T to 20T on 46T or 44T spurs.
• The parts list names KB030-19 'Sintered Pinion Gear 19T (M1.0/KB10)', KB031-46 'Spur Gear 46T (M1.0/KB10)', and a 10T drive bevel (KB032-10) with a 43T ring gear (KB033-43) in each axle.
• That puts the ratio after the spur at 43/10 = 4.3, and 2.42 x 4.3 = 10.41, matching Kyosho's figure.
• The KB10L chassis has a center diff (#10000 oil from the factory) and front and rear diffs with #5000.
• The motor is the TORX10L at 2850KV, and the manual's settings table for the BRAINZ 10 Plus ESC runs to 3 LiPo cells.
• Kyosho quotes 'about 75km/h', slightly above the roughly 71 km/h this gearing gives in theory on a fully charged 3S pack, so that figure is not shown here.
• The battery space is given as 143x47x30mm.
• The 34703T2 Electric Lime version is the same truck in another colour.

Documents

• ManualInstruction manual, KB10L Toyota Tacoma (Kyosho PDF) (opens in a new tab)ESC cell settings p. 20
• Gearing chartPrimary gear ratio chart, 12T to 20T on 46T/44T (in manual, Kyosho PDF) (opens in a new tab)p. 32
• Exploded viewExploded view, KB10L Toyota Tacoma (Kyosho PDF) (opens in a new tab)
• Parts listSpare and option parts list, KB10L Toyota Tacoma (Kyosho PDF) (opens in a new tab)

Sources

• 34703t1rc.kyosho.com (opens in a new tab)
• Manual (PDF)kyosho.com (opens in a new tab)
• 1rc.kyosho.com (opens in a new tab)
• kb030-19rc.kyosho.com (opens in a new tab)
• kb031-46rc.kyosho.com (opens in a new tab)
• 70616rc.kyosho.com (opens in a new tab)
• 82250rc.kyosho.com (opens in a new tab)
• 34703t2rc.kyosho.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
