Kyosho Fazer Mk2 FZ02 Chassis

Name: Kyosho Fazer Mk2 FZ02
Brand: Kyosho

1/10 scale · 4WD touring chassis · sold as kits

Kyosho's Fazer Mk2 FZ02 is a 1/10 four-wheel-drive, shaft-driven touring chassis on a 260 mm wheelbase, sold as readysets under many scale bodies.

Every kit on it shares the 68T spur and a 3.08:1 gearbox and axle stage, so the final drive depends only on the pinion fitted to the motor. Kyosho's motor mount has a hole for each pinion size, so a change needs no mesh setting. The motor, pinion and tires come with each kit rather than with the chassis, so enter yours in the gearing tool.

Transmission & axle: 3.08:1
Spur: 68T
Wheelbase: 260mm
Introduced: 2019

Gearing Top speedsourced

The pinion, motor and tires come with each kit: enter yours in the gearing tool.

Kyosho Fazer Mk2 FZ02 — Photo: Kyosho (opens in a new tab)

Kits on this chassis Built on the Fazer Mk2 FZ02

Each kit adds its own body, tires, pinion and motor. The chassis figures below apply to all of them.

Kit	Part no.	Maker page
Toyota Supra (A80) Color Type1 (FZ02-D drift)	34471T1	rc.kyosho.comPage (opens in a new tab)
1969 Chevy Camaro Z/28 RS Supercharged VE Tuxedo Black (brushless)	34493T1	rc.kyosho.comPage (opens in a new tab)
1969 Chevy Camaro Z/28 Le Mans Blue	34418T1C	rc.kyosho.comPage (opens in a new tab)
1970 Toyota Celica GT Tuned Ver. Orion Turquoise	34429T1	rc.kyosho.comPage (opens in a new tab)
2020 Mercedes-AMG GT3	34424C	rc.kyosho.comPage (opens in a new tab)
1972 Mazda Savanna GT Tuned Ver. Green	34428T1	rc.kyosho.comPage (opens in a new tab)
2018 Porsche 911 GT3 RS Lizard Green	34445T1	rc.kyosho.comPage (opens in a new tab)

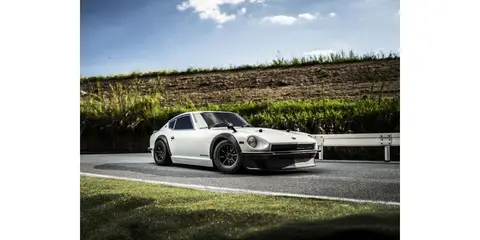

1971 Datsun 240Z Tuned Ver. White	34427T1	rc.kyosho.comPage (opens in a new tab)

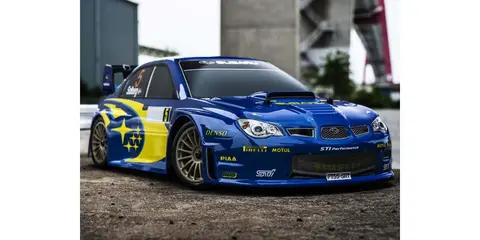

Subaru Impreza WRC 2006	34426T1	rc.kyosho.comPage (opens in a new tab)
Nissan Skyline 2000GT-R (KPGC10) Tuned Ver. Silver	34425T1C	rc.kyosho.comPage (opens in a new tab)
2020 Mercedes-AMG GT3 50 Years Legend of Spa	34424T2	rc.kyosho.comPage (opens in a new tab)

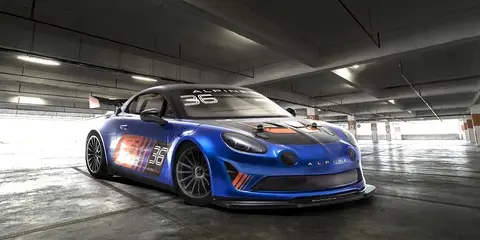

Alpine GT4	34423	rc.kyosho.comPage (opens in a new tab)

Show 6 more kits

Kit	Part no.	Maker page
Audi R8 LMS 2015 Red	34422T1	rc.kyosho.comPage (opens in a new tab)

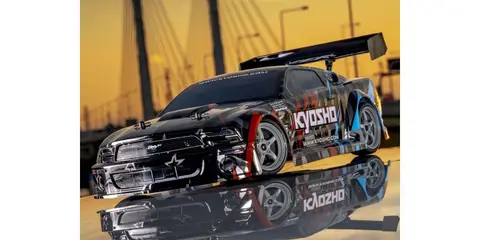

2005 Ford Mustang GT-R Color Type1 (FZ02-D drift)	34472T1	rc.kyosho.comPage (opens in a new tab)

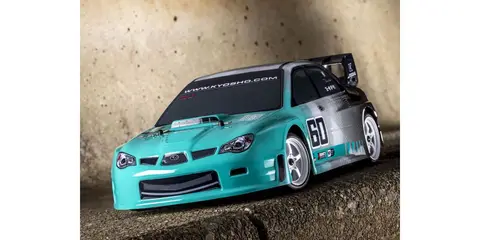

Subaru Impreza 2006 Color Type1 (FZ02-D drift)	34473T1	rc.kyosho.comPage (opens in a new tab)

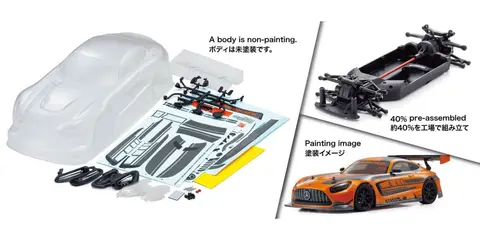

2020 Mercedes-AMG GT3 Chassis Kit	34441	rc.kyosho.comPage (opens in a new tab)

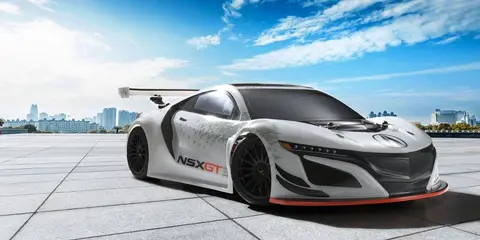

Acura NSX GT3 Racecar	34421	rc.kyosho.comPage (opens in a new tab)
1969 Chevy Camaro Z/28 Frost Green	34418T2	rc.kyosho.comPage (opens in a new tab)

Specifications

Last modified Sep 28, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Touring cars are 4WD on-road cars for asphalt and carpet tracks, often raced in classes with fixed motor and battery rules. Drive All four wheels are driven, which puts power down more evenly and keeps the car steadier accelerating out of corners. The cost is more parts to maintain. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
Class	Touring
Drive	4WD
Scale	1/10
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. The Gearing parts table below shows this car's pitch and part numbers. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. This one is worked out from the tooth counts the maker publishes. Final drive How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed. On-road racers often compare gearing by rollout instead, because tire sizes differ between cars.
Pinion	With each kit
Spur	68TStock	Stock
Transmission & axle	3.08:1Derived	Derived
Final drive	5.66 to 7.22:1 on 37T to 29T pinionsMaker's chart	Maker's chart
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. Race tires wear down over a day, and a smaller tire gears the car shorter.
Tire diameter	With each kit
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	With each kit
Battery	With each kit
Size & weight
Wheelbase The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly.
Wheelbase	260 mm10.2 inStock	Stock

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how.
With each kit means each kit on this chassis brings its own, so enter yours in the gearing tool.
Maker’s chart is the ratios the maker prints for this chassis with the pinions it names.

Other versions of this chassis

Gearing parts

Pinion and spur parts for the Kyosho Fazer Mk2 FZ02: fitted, and optional gearing supplied in the box
Component	Teeth	Pitch	Bore	Part number
Fitted at the factory
Spur	68T	Not published	Not applicable	FA556-68 (opens in a new tab)

About teeth, pitch and bore

Tooth counts are the ones in the specifications above.
Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close.
Bore is the pinion’s hole, listed separately from the motor shaft.
Linked part numbers go to the maker’s or official distributor’s page for that part.

How these numbers were settled

Every FZ02 readyset shares the 68T spur and the gearbox and axle stage after it.

Kyosho prints the complete motor-to-wheel ratio on each kit, 'Gear Ratio 6.54:1', and says the 'Standard spur and pinion gear setting is 68T and 32T', with nine pinions from 29T to 37T usable; the ratio after the spur works out at 6.54 x 32 / 68 = 3.078.
Older bodies such as the Alpine GT4 and Audi R8 LMS 2015 readysets print the total rounded to 6.5:1 with the same 68T and 32T gears.
The FZ02-D drift readysets use the same gears and 260mm wheelbase with drift tires, and the FZ02 VE readyset fits a brushless motor on the same 6.54:1 gearing.
The spur is Kyosho's FA556-68 'TC Spur Gear 68T FZ02'.
The pinion, motor and tires come with each kit, so they are not part of the chassis figures: enter yours in the gearing tool.
Every FZ02 kit page prints a 260mm wheelbase; the long-wheelbase FZ02L, the rally FZ02-R and the FZ02 Chassis Kit (34461C) have sheets of their own.
The manual lists 29T to 37T pinions for the stock spur; the ratios 7.22:1 to 5.66:1 are worked out from them with the figures above.

Sources

Every figure on this page traces to one of these; where they disagreed, the note above says which was used and why. Links open in a new tab.

Maker documents

Instruction manual, FZ02/FZ02L (Kyosho PDF) (opens in a new tab)kyosho.comUsed forMain specs

Parts and electronics

34429T1 (opens in a new tab)rc.kyosho.comUsed forMain specsSize
34424C (opens in a new tab)rc.kyosho.comUsed forMain specsSize
34445T1 (opens in a new tab)rc.kyosho.comUsed forMain specs
34426T1 (opens in a new tab)rc.kyosho.comUsed forMain specs
EN 34423 (opens in a new tab)rc.kyosho.comUsed forMain specs
Fazer FZ02 (opens in a new tab)rc.kyosho.comUsed forMain specs
Kyosho FA556-68 spur gear (opens in a new tab)rc.kyosho.comUsed forMain specsGearing
FZ02 FZ02L T04 IM (PDF) (opens in a new tab)kyosho.comUsed forMain specs
