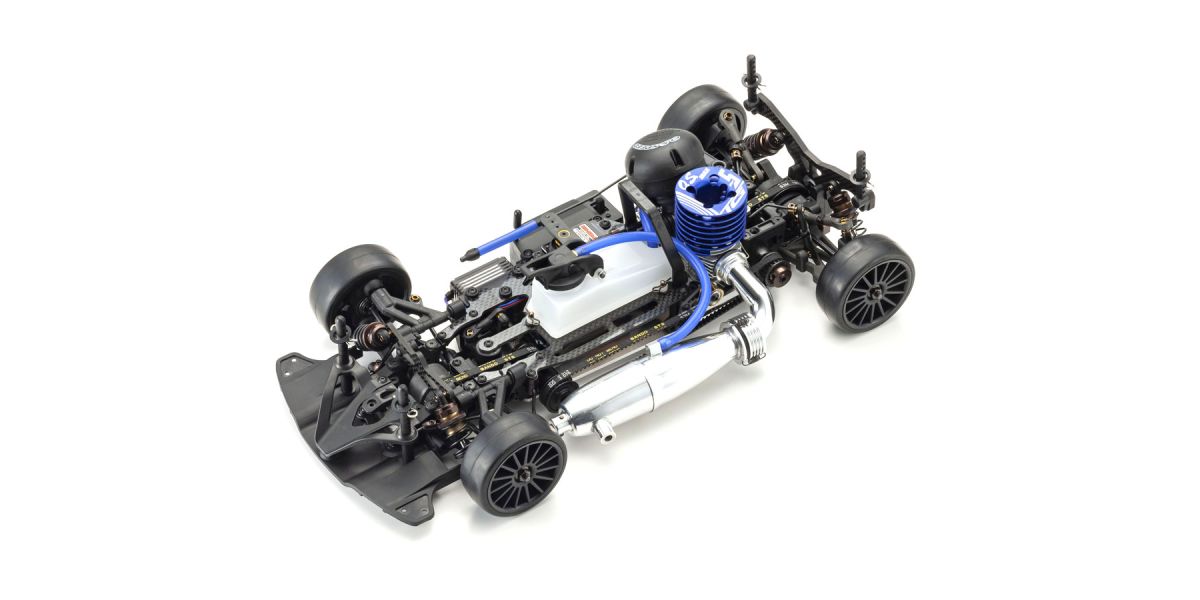

Kyosho V-ONE R4 Evo.3
1/10 scale · touring and drift body · 33217
- Final drive
- 5.09:1
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 21TStock | Stock |
| Spur | 56TStock | Stock |
| Transmission & axle | 1.91:1Derived | Derived |
| Final drive | 5.09:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | 33217 | |
| Scale | 1/10 | |
| Class | Touring and drift body | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 21T | Mod 0.8 | Not applicable | VZW231-21C (opens in a new tab) |
| Spur | 56T | Not published | Not applicable | VZ413-56B (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Nitro 1/10 touring car kit with a two-speed transmission; the 12-15 class engine and rubber tires are sold separately.
- Kyosho's Technical Data gives 'Gear Ratio 7.18／5.09：1', and second gear, 5.09, is stored as the fitted total.
- The spare-parts list gives a 0.8 module 21T second gear (VZW231-21C) and a 56T second spur (VZ413-56B), so the ratio after the spur works out to 5.09 x 21/56 = 1.909.
- The tire size is left blank.
Documents
- ManualInstruction manual (Kyosho PDF) (opens in a new tab)
- Exploded viewExploded view (Kyosho PDF) (opens in a new tab)2-speed gears, top right of p. 41
- Parts listOption parts list (Kyosho PDF) (opens in a new tab)Optional 1st/2nd gears and spurs
Sources
- 33217rc.kyosho.com (opens in a new tab)
- vzw231-21crc.kyosho.com (opens in a new tab)
- Manual (PDF)kyosho.com (opens in a new tab)
- vz413-56brc.kyosho.com (opens in a new tab)
- Manual (PDF)kyosho.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
