Kyosho FW-06 Chassis Kit

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.

How these numbers were settled

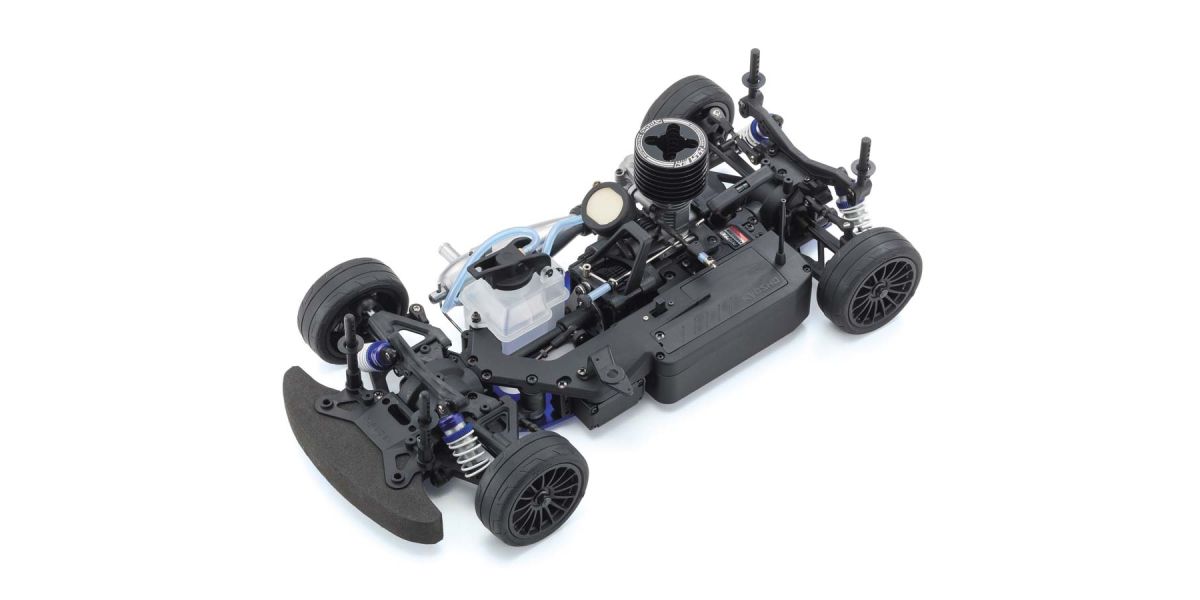

Nitro 1/10 touring car chassis kit that comes with a pre-mounted KE15SP engine and FAT701M tires on wheels, so KV and cell rating do not apply.

• Kyosho's Technical Data gives 'Gear Ratio 7.47 / 5.44：1' for its two-speed transmission, 'Tire(F/R) φ66×25mm' and 'Max Speed 64Km(approx.)'.
• Second gear, 5.44, is stored as the total and 7.47 is first gear.
• The spare-parts list names both a 26T and a 21T second gear, so the stock gear tooth counts and the ratio after the spur are left blank.

Documents

• ManualInstruction manual (Kyosho PDF) (opens in a new tab)
• Exploded viewExploded view (Kyosho PDF) (opens in a new tab)Clutch and center gearbox, p. 47
• Parts listSpare and option parts list (Kyosho PDF) (opens in a new tab)

Sources

• 33216rc.kyosho.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
