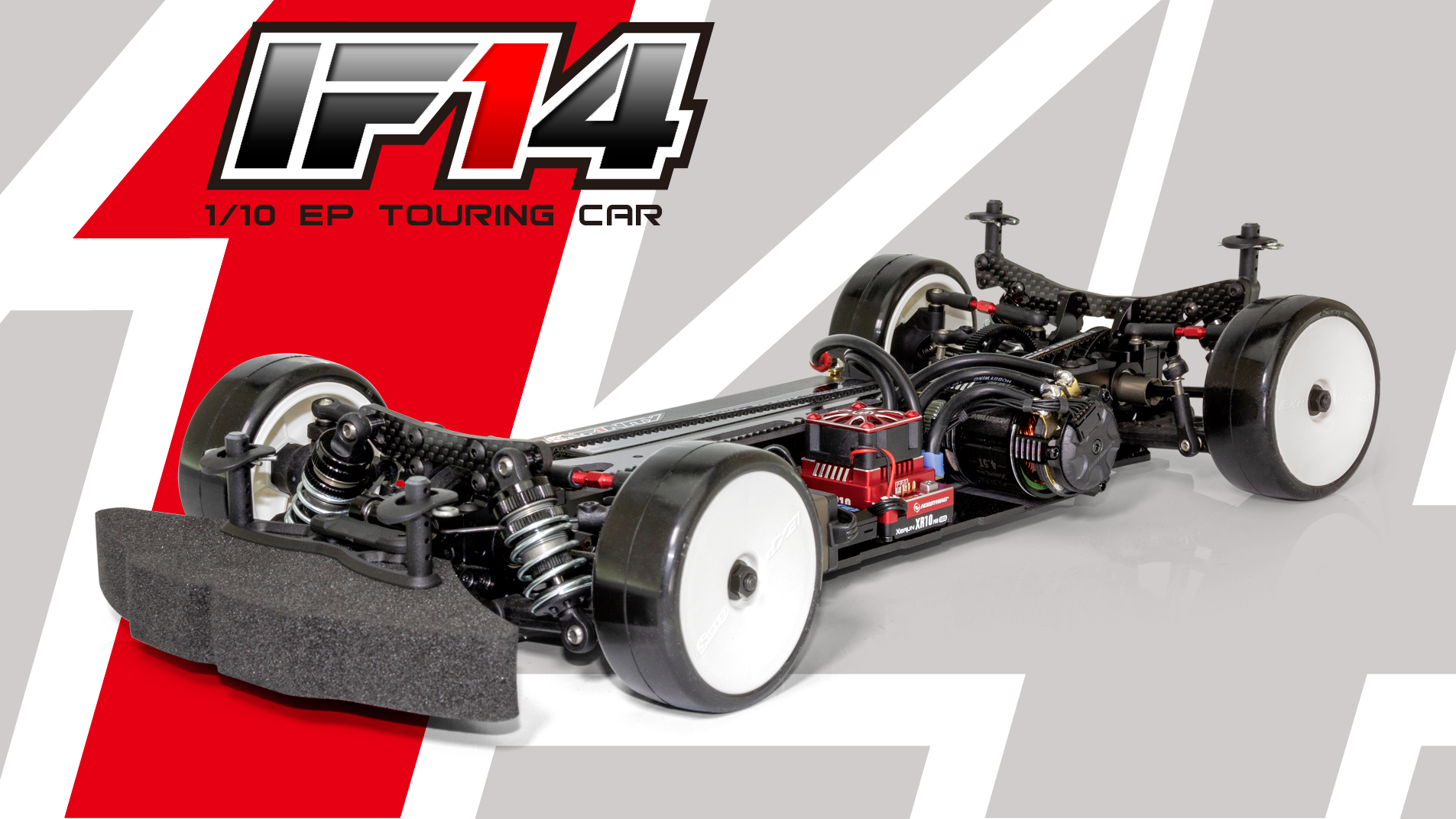

VehiclesInfinity IF14
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not applicable | |
| Spur | 112TStock | Stock |
| Transmission & axle | 1.90:1Stock | Stock |
| Final drive | Not applicable | |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Scale | 1/10 | |
| Class | Touring and drift body | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
How these numbers were settled
The original IF14.
- Touring car kit: the manual's required items list a 64 pitch pinion, motor, speed controller, battery, tires and wheels, so the pinion, KV and cell rating do not apply and the tire size is left blank.
- The manual's 64 pitch gear chart prints 1.9 as the second reduction, which matches the 38T spool pulley and 20T center pulley in its parts list.
- The IF14 manual on Infinity's own shop labels the kit's spur 'Spur Gear 64P 112T'.
Documents
- ManualInstruction manual (Infinity PDF) (opens in a new tab)Spur gear 64P 112T
- Gearing chartIF14 gear ratio chart, 64 pitch (in manual) (opens in a new tab)IF14 GEAR RATIO (64pitch) table
Sources
- if14-1-10-ep-touring-carcreationmodel.net (opens in a new tab)
- Manual (PDF)creationmodel.net (opens in a new tab)
- Manual (PDF)infinity-rcshop.jp (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
