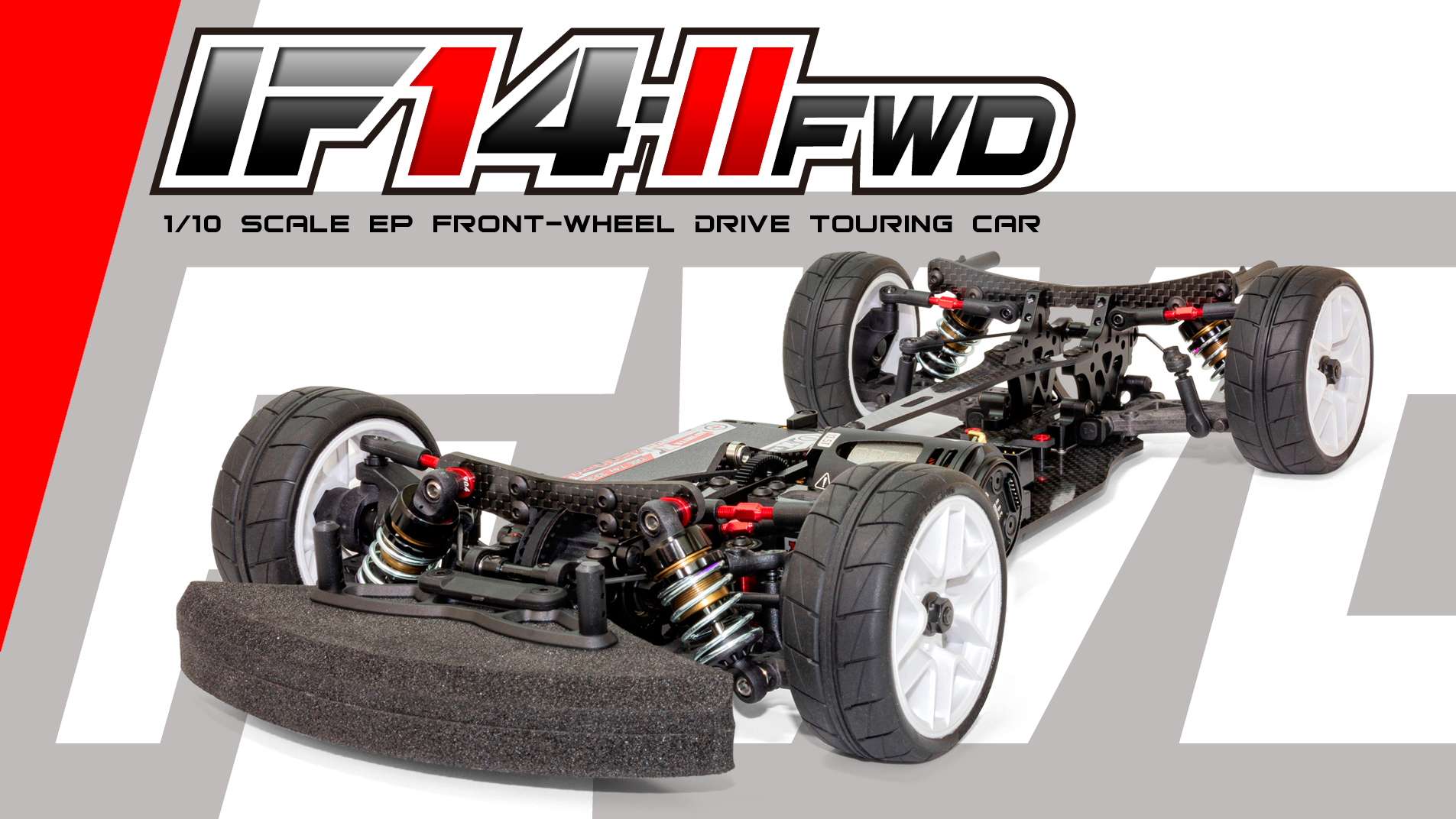

Infinity IF14-II FWD

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.

How these numbers were settled

Front-wheel-drive touring car.

• Touring car kit: the manual's required items list a 64 pitch pinion, motor, speed controller, battery, tires and wheels, so the pinion, KV and cell rating do not apply and the tire size is left blank.
• The manual's gear chart prints 1.810 as the second reduction for spurs from 68T to 80T, and the kit supplies a 78T 64 pitch spur (T296).

Documents

• ManualInstruction manual (Infinity PDF) (opens in a new tab)Spur gear 64P 78T
• Gearing chartIF14-2 gear ratio chart, 64 pitch (in manual) (opens in a new tab)IF14-2 GEAR RATIO (64pitch) table

Sources

• if14-2-fwd-1-10-ep-fwd-tccreationmodel.net (opens in a new tab)
• Manual (PDF)creationmodel.net (opens in a new tab)
• T296infinity-rcshop.jp (opens in a new tab)
• Manual (PDF)infinity-rcshop.jp (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
