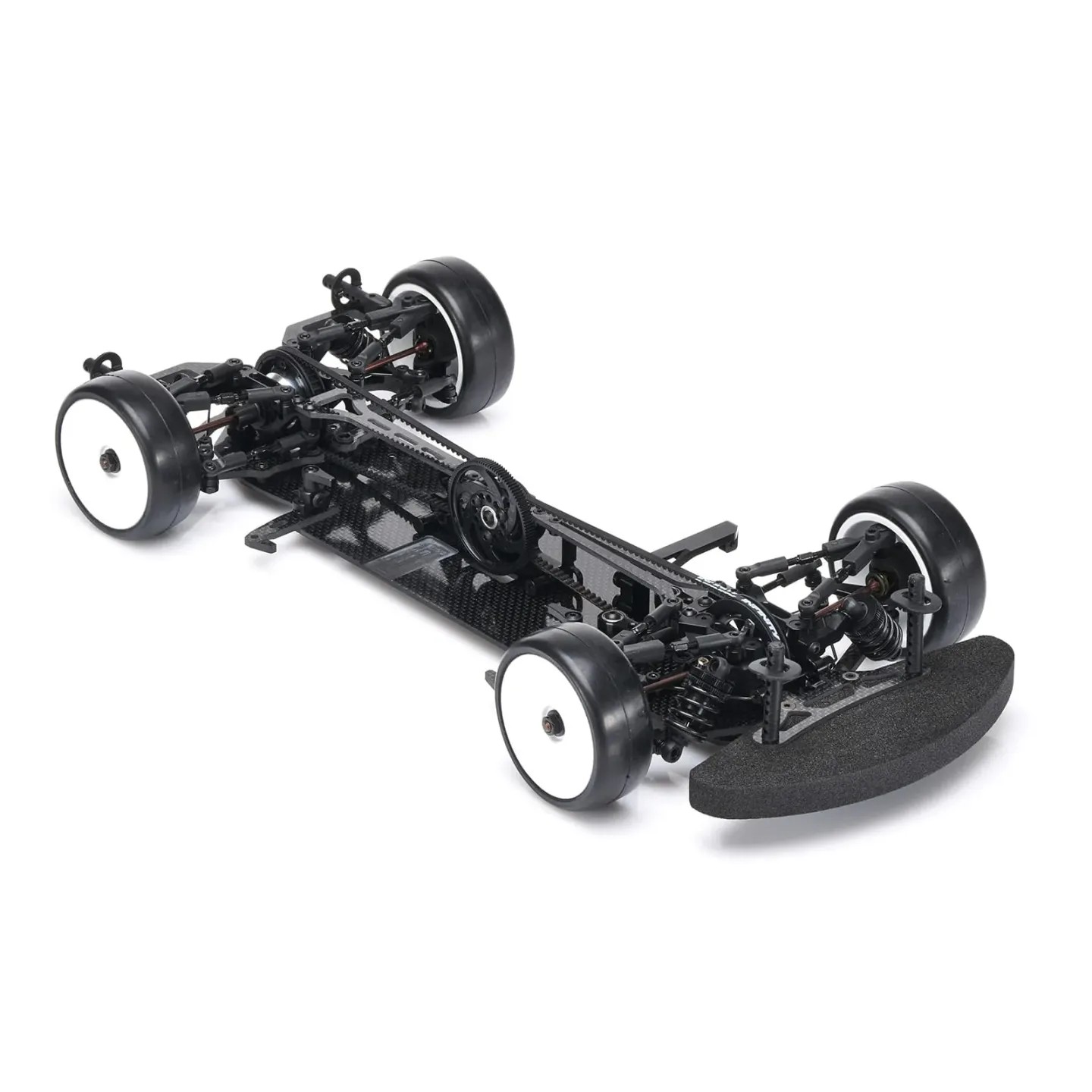

VehiclesInfinity IF14 Speciale
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not applicable | |
| Spur | 112TStock | Stock |
| Transmission & axle | Not published | |
| Final drive | Not applicable | |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Scale | 1/10 | |
| Class | Touring and drift body | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Spur | 112T | 64P | Not applicable | T304 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Touring car kit: the manual's required items list a 64 pitch pinion, motor, speed controller, battery, tires and wheels, so the pinion, KV and cell rating do not apply and the tire size is left blank. The kit supplies a 112T 64 pitch spur and two pulley sets, 40T/22T and 38T/20T, and the manual prints gear charts for both (1.818 and 1.9) without naming one as standard, so the ratio after the spur is left blank.
Documents
- ManualInstruction manual (Infinity PDF) (opens in a new tab)T304 Spur Gear 64pitch (112T)
- Gearing chartIF14 Speciale gear ratio charts, 64DP (in manual) (opens in a new tab)GEAR RATIO CHART -64DP (40/22T) and (38/20T)
- Exploded viewExploded view (Infinity PDF) (opens in a new tab)
Sources
- Manual (PDF)creationmodel.net (opens in a new tab)
- Manual (PDF)infinity-rcshop.jp (opens in a new tab)
- T304infinity-rcshop.jp (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
