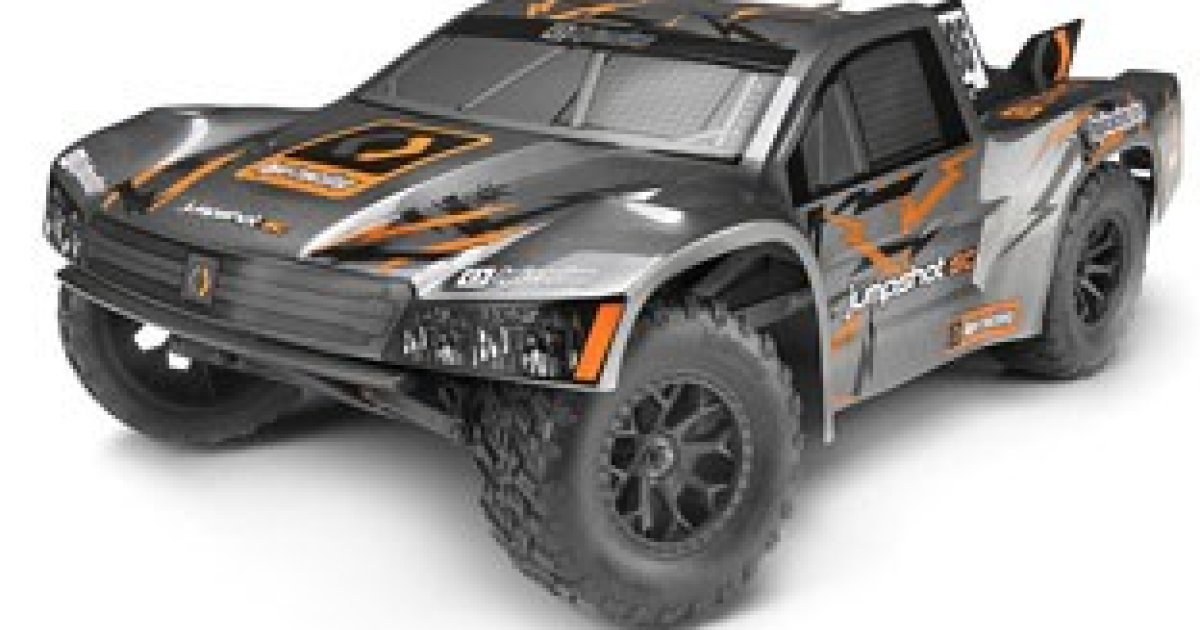

HPI Racing Jumpshot SC

The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with.

• Short course trucks copy full-size desert race trucks, with bodies that cover the wheels so they can bump each other without tangling.

Only one axle is driven, the rear on almost every 2WD RC car.

• It is lighter and simpler, and it takes more throttle control on loose ground.

A brushed motor carries current through carbon brushes that rub on the commutator.

• It is cheaper and smooth at low speed.
• The brushes wear and the motor loses power over time.

Ready to run: built at the factory with the electronics installed.

• Some come without a battery or charger; the maker's box contents say which.

The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement.

• A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
• This one is 560 mm long.

The maker's product number for this exact version.

• A V2, a new color, or a kit instead of an RTR usually has a different number, and parts can differ between them.
• Check it against your box or receipt before ordering parts.

The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite.

• On this car one tooth changes the gearing by about 5.3%.
• A bigger pinion loads the motor and ESC harder, so check the maker's gearing chart and feel the motor temperature after a run.

The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter.

• Pinion and spur must have the same pitch, or tooth size, to mesh.
• The Gearing parts table below shows this car's pitch and part numbers.

Every reduction after the spur, multiplied together: transmission, differentials and axle gears.

• It is fixed by the design; the gearing you change is the pinion and spur.
• This one is worked out from the tooth counts the maker publishes.

How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed.

• Among 1/10 short course trucks in the catalog, the middle half run between 10.2:1 and 12.4:1 on stock gearing; this one is 12.9:1, shorter than most.

The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller.

• At high speed tires can balloon and grow, so the real gearing gets taller as the car goes faster.

The hex on the axle that the wheel locks onto and is driven by. A wheel must match the hex size to fit.

• 12 mm is the common size on 1/10 cars, so most 1/10 wheels fit; offset and width still vary.
• The wheel nut is a separate size, so check its thread too before buying nuts.

Brushed motors are rated by can size and turns rather than KV, so there is no KV to show.

The diameter of the motor's output shaft, which a pinion's bore must match.

• The maker does not publish it.

The highest LiPo cell count the maker rates the electronics for. Each cell is 3.7 V nominal and 4.2 V fully charged.

• 2S is 7.4 V nominal and 8.4 V off the charger.
• Running more cells than this risks the ESC and motor.
• Many cars also run on fewer cells, only slower.

The motor fitted at the factory, as the maker names it.

• Brushed motors are often named by can size, such as 540 or 550, and by turns: fewer turns is faster.

The electronic speed control. It feeds power from the battery to the motor as you work the throttle, and usually powers the receiver and servo too.

• An amp figure in its name is normally the maker's continuous rating.
• A brushed ESC cannot run a brushless motor.
• Set its low-voltage cutoff for LiPo, so a pack is not run flat.

A brushed motor has no KV rating, so no theoretical top speed is worked out. Compare gearing by rollout instead.

The vehicle's weight as the maker states it.

• The maker does not say whether it includes a battery.
• More weight takes more power to accelerate and lands harder on the parts; it changes top speed very little.

Overall length as the maker states it, usually with the body fitted.

• Useful for comparing real size, since scale labels are loose.

Overall width as the maker states it, usually with the body fitted.

• A wider car is more stable in corners and harder to roll over.

Overall height as the maker states it, usually with the body fitted.

• Useful when checking it fits a shelf, a bag or a car trunk.

The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly.
