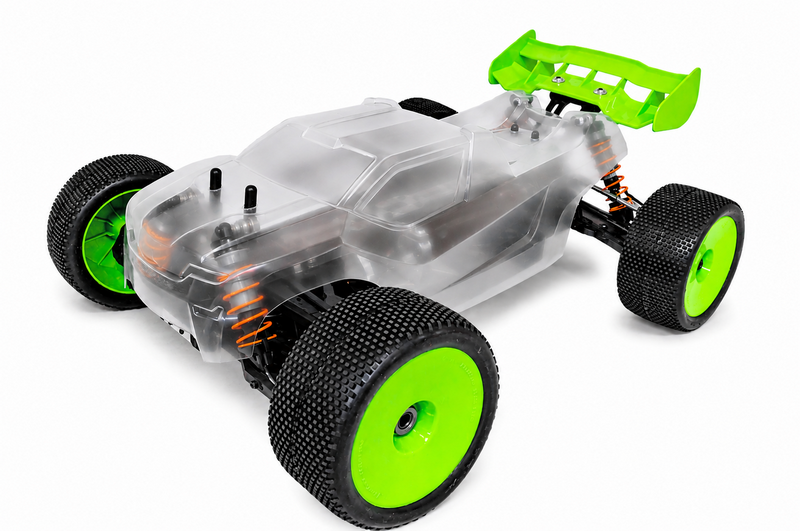

VehiclesHobao Hyper VS2 Truggy Electric ARR
Hobao Hyper VS2 Truggy Electric ARR
1/8 scale · truggy · HB-VSTE
- Final drive
- 14.79:1
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 14TStock | Stock |
| Spur | 45TStock | Stock |
| Transmission & axle | 4.60:1Derived | Derived |
| Final drive | 14.79:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Wheel hex | 17 mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Chassis | ||
| Length | 560 mm22 inStock | Stock |
| Width | 420 mm16.5 inStock | Stock |
| Height | 220 mm8.7 inStock | Stock |
| Wheelbase | 374 mm14.7 inStock | Stock |
| Diff oil, front | 20KStock | Stock |
| Diff oil, center | 20KStock | Stock |
| Diff oil, rear | 7KStock | Stock |
| Vehicle | ||
| Part number | HB-VSTE | |
| Scale | 1/8 | |
| Class | Truggy | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 14T | Not published | 5 mm | 89311 (opens in a new tab) |
| Spur | 45T | Mod 1 | Not applicable | 85204 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The manual fits a 14T motor gear (89311) to the 45T center spur (85204), and its default setup sheet repeats 14T and 45T.
- Hobao's product page prints the 45T MOD 1 spur and a 10T pinion on a 46T crown gear in each diff, 4.6:1.
- The 14.79:1 total is worked out from those tooth counts; Hobao prints no overall ratio.
- Hobao lists 13T/43T and 15T/40T diff gear sets as options.
- Hobao publishes no outside diameter for the pin tires (BT-301), so it is left blank.
- The truggy comes without motor, speed control, radio or servo; the 14T motor gear is in the manual's standard parts list.
- The spec sheet on both the ARR and RTR pages gives one weight, 4185g, so no weight is shown for the ARR.
Documents
- ManualHyper VS2T instruction manual (Hobao USA PDF) (opens in a new tab)Motor gear, PDF p. 8; setup sheet, PDF p. 12
- Parts listParts list, in the VS2T manual (Hobao USA PDF) (opens in a new tab)PDF pp. 14-17
- Exploded viewVS2T exploded view (Hobao USA PDF) (opens in a new tab)
Sources
- hb-vste-hyper-vs2-truggy-el…hobao-usa.com (opens in a new tab)
- Manual (PDF)hobao-usa.com (opens in a new tab)
- VSTE-SPEC.pnghobao-usa.com (opens in a new tab)
- Manual (PDF)hobao-usa.com (opens in a new tab)
- 89311hobao-usa.com (opens in a new tab)
- 85204-center-supr-gear-45thobao-usa.com (opens in a new tab)
- 85202-crown-gear-46thobao-usa.com (opens in a new tab)
- 85205-differential-pinion-g…hobao-usa.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
