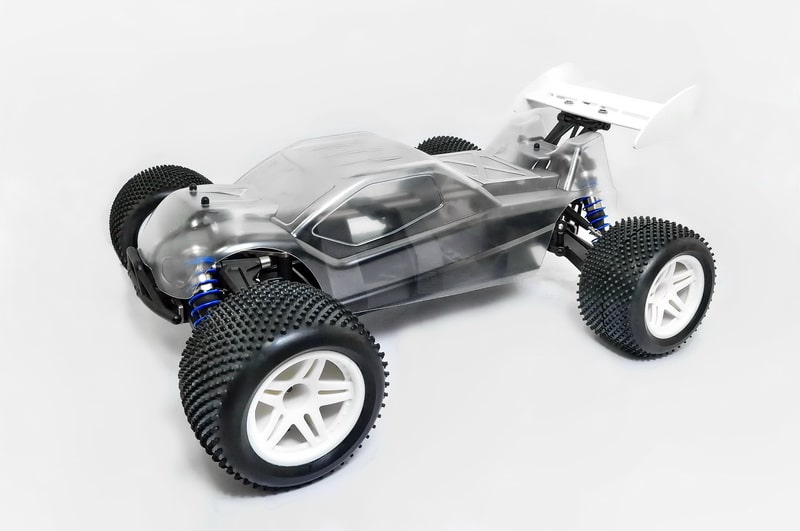

VehiclesHobao Hyper TT2.0 Pro ARR
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 13TStock | Stock |
| Spur | 40TStock | Stock |
| Transmission & axle | 3.90:1Derived | Derived |
| Final drive | 12.00:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Wheel hex | 12 mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Battery space | 143 × 50 mmmax pack, length × widthStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Chassis | ||
| Weight | 1.11 kg (2.4 lb)Stock | Stock |
| Length | 434 mm17.1 inStock | Stock |
| Width | 318 mm12.5 inStock | Stock |
| Height | 176 mm6.9 inStock | Stock |
| Wheelbase | 280 mm11 inStock | Stock |
| Diff oil, front | 5KStock | Stock |
| Diff oil, center | 5KStock | Stock |
| Diff oil, rear | 3KStock | Stock |
| Vehicle | ||
| Part number | HB-TT2E | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 13T | Mod 1 | 3 mm | 11052 (opens in a new tab) |
| Spur | 40T | Mod 1 | Not applicable | 11373 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Hobao's product page and the manual's parts list agree on a 13T motor gear (11052) on the 40T spur (11373), with a 10T pinion driving a 39T crown gear in the front and rear diffs.
- The 12.0:1 total is worked out from those tooth counts; Hobao prints no overall ratio.
- The truck comes without motor, speed control, radio or servo, but the 13T motor gear is in the box and fitted in the manual's motor step.
- Hobao publishes no diameter for the pin-spoke tires (11105 set), so it is left blank.

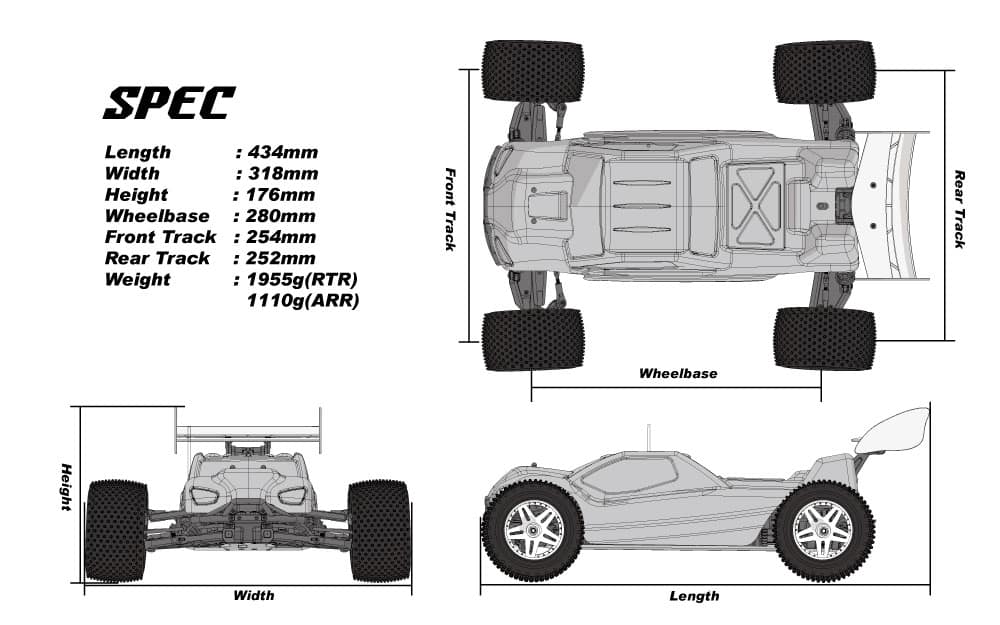

- Hobao's spec sheet gives 1110g for the ARR and 1955g for the RTR.
Documents
- ManualHyper TT 2.0 instruction manual (Hobao USA PDF) (opens in a new tab)Motor gear and spur, steps 21-22
- Parts listParts list, in the TT 2.0 manual (Hobao USA PDF) (opens in a new tab)Printed pp. 15-20
- Exploded viewTT 2.0 exploded view (Hobao USA PDF) (opens in a new tab)
Sources
- hb-tt2e-1-10-hyper-tt2-0-pr…hobao-usa.com (opens in a new tab)
- Manual (PDF)hobao-usa.com (opens in a new tab)
- %E5%B0%BA%E5%AF%B8%E8%A1%A8…hobao-usa.com (opens in a new tab)
- 11052hobao-usa.com (opens in a new tab)
- 11373-spur-gear-40thobao-usa.com (opens in a new tab)
- 11202hobao-usa.com (opens in a new tab)
- %E9%9B%BB%E6%B1%A0%E7%9B%92…hobao-usa.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
