Element RC Enduro24 Crawler RTR

1/24 scale · scale crawler · 20181

Final drive: 62.60:1

Open in Top Speedsourced

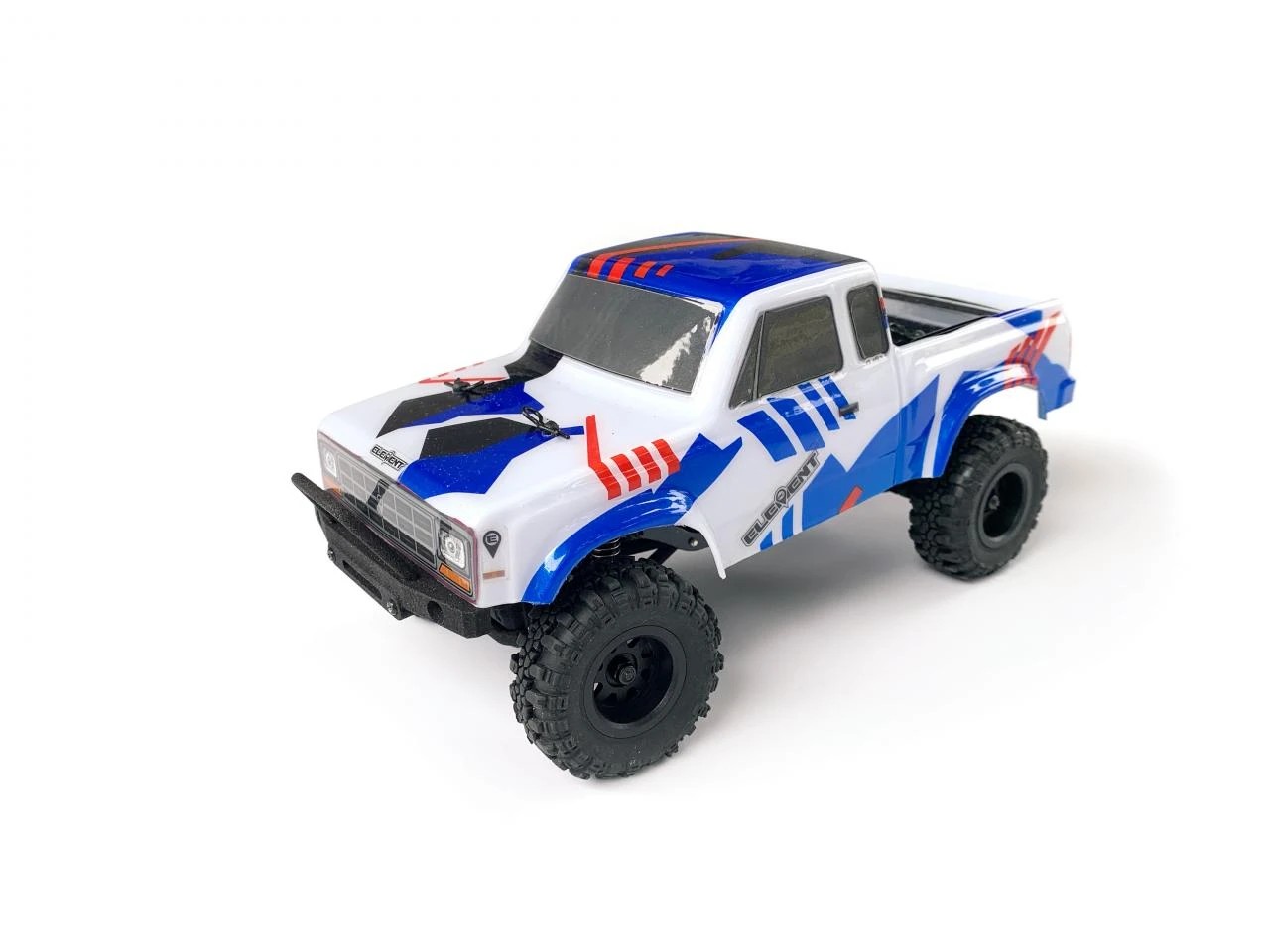

Element RC Enduro24 Crawler RTR — Photo: Element RC

Specifications

Last modified Sep 25, 2026

Spec	Value	Basis
Drivetrain
Pinion	12TStock	Stock
Spur	64TStock	Stock
Transmission & axle	11.76:1Derived	Derived
Final drive	62.60:1Stock	Stock
Wheels & tires
Tire diameter	Not published
Wheel hex	7 mmStock	Stock
Power
Motor	Not published
Motor shaft	1.48 mmStock	Stock
Battery	Not published
Battery connector	Molex 2.0mm Spade 2PStock	Stock
Performance
Theoretical top speed	Not published
Chassis
Length	215 mm8.5 inStock	Stock
Width	102 mm4 inStock	Stock
Wheelbase	128 mm5 inStock	Stock
Vehicle
Part number	20181
Scale	1/24
Class	Scale crawler

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not published means it exists but no source we could find prints it.

Gearing parts

Pinion and spur parts for the Element RC Enduro24 Crawler RTR: fitted, and optional gearing supplied in the box
Component	Teeth	Pitch	Bore	Part number
Fitted at the factory
Pinion	12T	Not published	Not published	Not published
Spur	64T	Not published	Not applicable	Not published

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft (1.48 mm on the stock motor).

How these numbers were settled

Element prints the whole gear train on the product page and in the press release: a 12T pinion on a 64T spur (5.33:1), a 40/16 transmission (2.5:1), a 40/17 transfer case (2.35:1) and 24/12 axle ring and pinion gears (2:1), for a 62.6:1 final drive.

The transmission and axle ratio after the spur, 11.76, is worked out from those tooth counts; multiplied through it gives 62.75, and the maker's 62.6 is kept.
The Sendero comes in red and blue (20181) and black and yellow (20180), and the Trailrunner (20182) and Ecto (20183) versions print the same gearing on the same chassis.
The pinion is pressed onto the motor and the spur is sold only inside the gearbox and motor assembly (21705), so neither has a part number of its own.
No tire diameter is published for the mounted wheels and tires (21708).
Associated does not say what type of motor it is or give a KV, and the 2-in-1 receiver and ESC has no published cell rating; the truck ships with a single-cell 3.7V 520mAh LiPo.

Documents

Parts listEnduro24 1:24 scale parts catalog (Associated PDF) (opens in a new tab)
ManualEnduro24 transmitter manual and quick guide (Associated PDF) (opens in a new tab)
Gearing chartEnduro24 RTR press release with gear ratios (Associated PDF) (opens in a new tab)Gear Ratios p. 2

Sources

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
