VehiclesElement RC Enduro12 Trail Truck Bushido

Element RC Enduro12 Trail Truck Bushido

Name: Element RC Enduro12 Trail Truck Bushido
Brand: Element RC
SKU: 40011C

1/12 scale · crawler · 40011C

Also sold as the Element RC Enduro12 Trail Truck Ecto

Element's Enduro12 Trail Truck Bushido is a ready-to-run 1/12 four-wheel-drive crawler with a Reedy Hi-Torque brushed 380 motor and a Flysky 2-in-1 speed control and receiver.

An 11T pinion and the three-gear transmission give a 46.6:1 final drive, the overall reduction from motor to wheel, which keeps it slow and controllable on rocks. The speed control handles up to a 3S pack. The truck measures 420 mm long on a 252 mm wheelbase, and the shocks run 20 wt oil. If you change the 11T pinion, remember it sets the crawl speed directly.

Final drive: 46.60:1

Crawler

Weight distribution Crawler gearingsourced

Weigh each corner to balance the chassis, then work out reduction and axle overdrive.

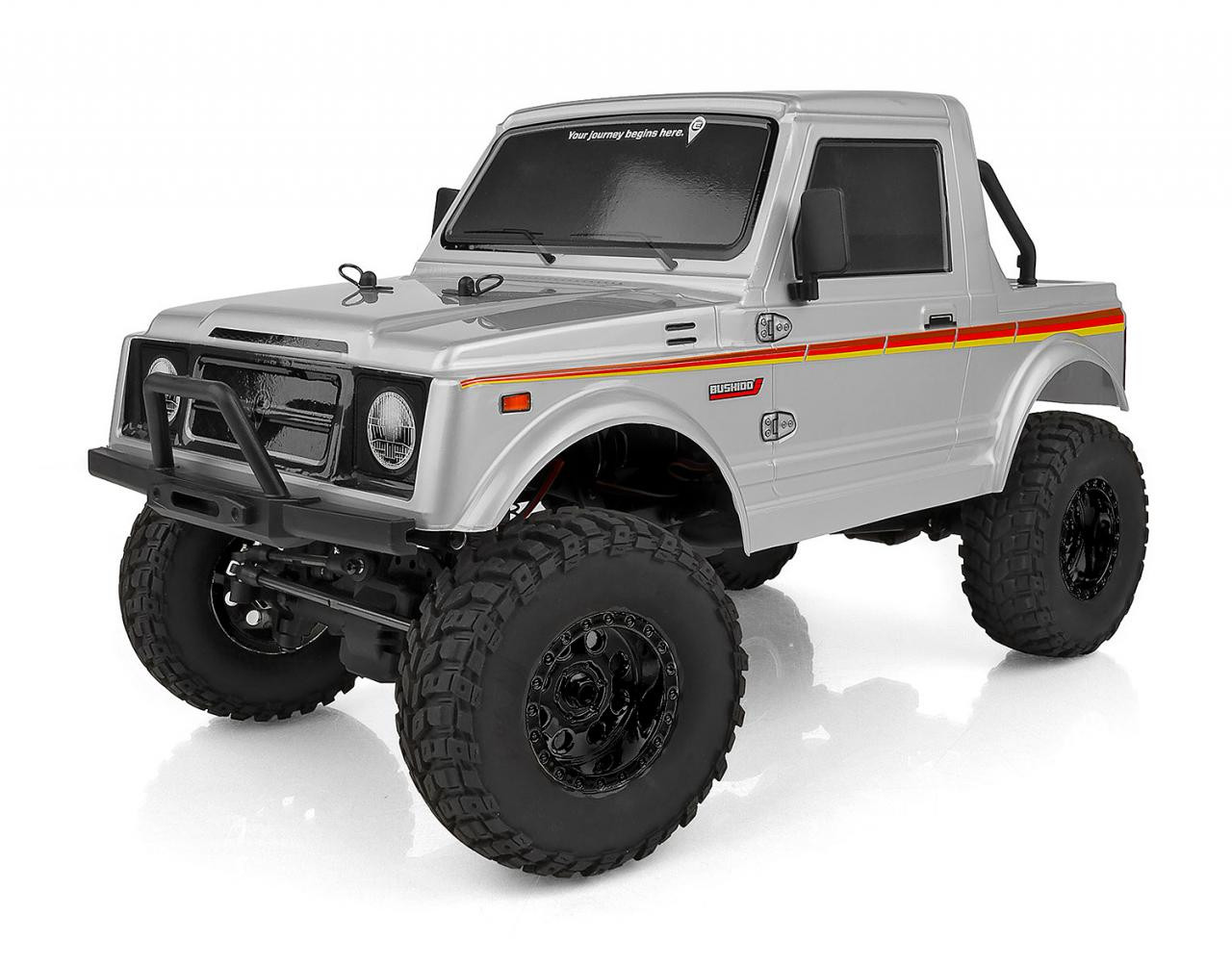

Element RC Enduro12 Trail Truck Bushido — Photo: Element RC

Specifications

Last modified Sep 27, 2026

Spec	Value	Basis
Vehicle
Class	Crawler
Drive	4WD
Power	Brushed
Build	Ready to run
Scale	1/12
Part number	40011C
Drivetrain
Pinion	11TStock	Stock
Spur	Not published
Transmission & axle	Not published
Final drive	46.60:1Stock	Stock
Wheels & tires
Tire diameter	Not published
Power
Motor	Not applicable
Motor shaft	Not published
Battery	Up to 3SLiPoStock	Stock
Stock motor	Reedy Hi-Torque brushed 380Stock	Stock
Stock ESC	Flysky FS-R4D-ESC-BS 2-in-1 ESC/receiverStock	Stock
Performance
Theoretical top speed	Not applicable
Chassis
Length	420 mm16.5 inStock	Stock
Width	190 mm7.5 inStock	Stock
Wheelbase	252 mm9.9 inStock	Stock
Shock oil, front	20 wtStock	Stock
Shock oil, rear	20 wtStock	Stock

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.

Gearing parts

Pinion and spur parts for the Element RC Enduro12 Trail Truck Bushido: fitted, and optional gearing supplied in the box
Component	Teeth	Pitch	Bore	Part number
Fitted at the factory
Pinion	11T	Not published	Not published	41043 (opens in a new tab)Team Associated
Spur	Not published	Not recorded	Not applicable	Not recorded

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.

How these numbers were settled

Element prints a 13.98:1 three-gear transmission, and the manual fits an 11T pinion (#41043) and 12T/40T ring and pinion gears (#41130) in both axles, so the total reduction from motor to wheel works out to about 46.6:1.

The pinion drives a step gear (#41041) that turns a 56T 0.5 module main gear (#41035), but the step gear's tooth counts are not published, so the spur and the ratio after it are left blank.
No diameter is published for the Enduro12 wheel and tire set (#41142).
The Reedy Hi-Torque 380 motor is brushed, so KV does not apply.
Element links the Flysky FS-R4D-ESC-BS manual for the 2-in-1 ESC and receiver, which rates it for 2-3 LiPo cells; the truck ships with an 850mAh 7.4V 2-cell Li-ion pack and charger.
The Enduro12 Ecto (40010C) is the same chassis and running gear with its own body and a 265 mm wheelbase.

Documents

ManualEnduro12 Bushido RTR manual (Element RC PDF) (opens in a new tab)Axles p. 9, gearbox p. 13, pinion p. 14
