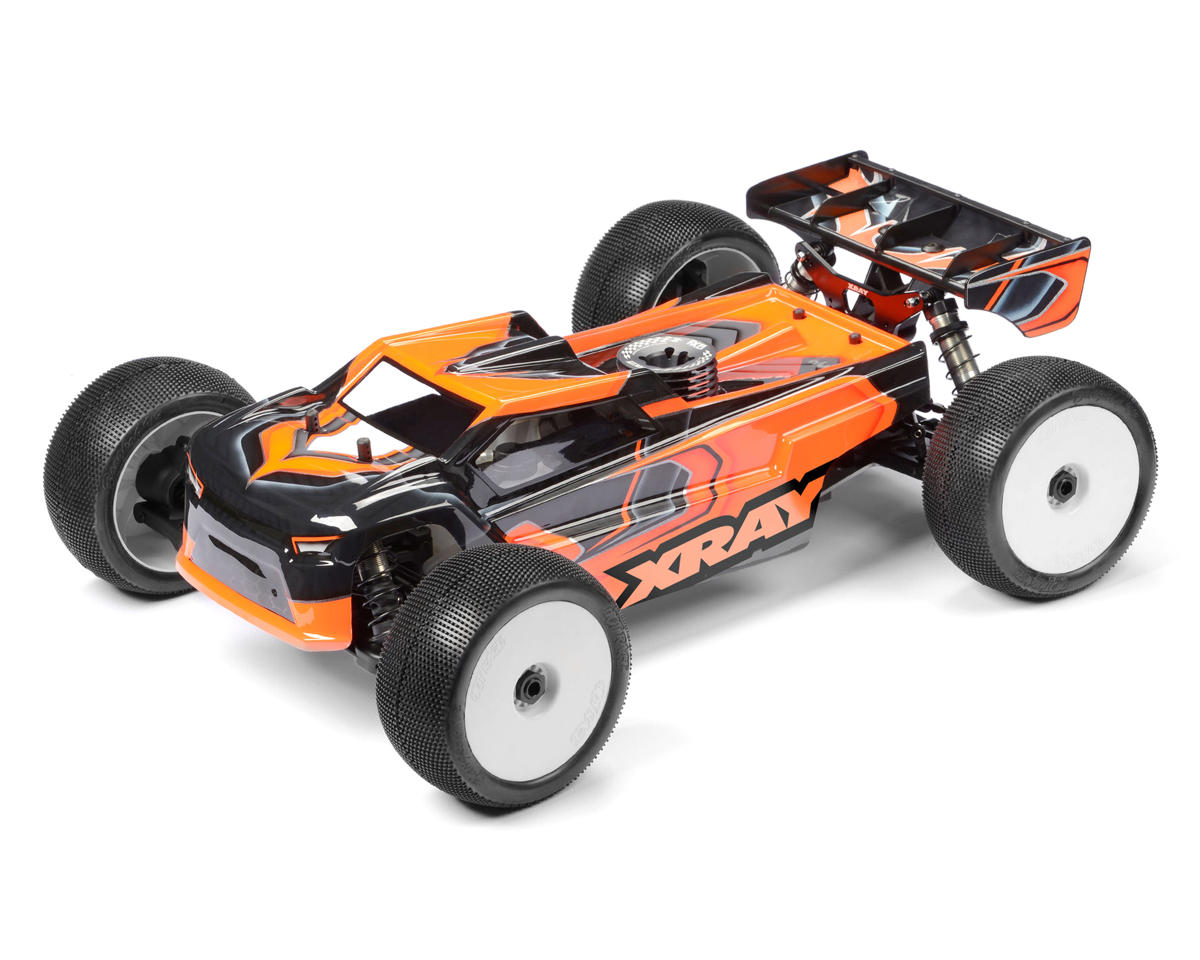

XRAY XT8'24

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft.

How these numbers were settled

Nitro truggy kit: engine, wheels and tires are on the manual's list of items to buy, so the tire size is left blank.

• The manual prints the kit gearing as (50 : 13) x 4.30 = 16.53, with the 13T clutch bell (#358513) and the 50T centre diff spur (#354950) marked as included.
• The 4.30 constant is the 43T diff bevel gear (#355043) against the 10T drive gear (#355108).
• The same manual also covers the electric XT8E'24, whose stock spur could not be read from it, so that version is not listed.

Documents

• ManualInstruction manual, XT8'24 (XRAY PDF) (opens in a new tab)Centre diff spur PDF p. 8; clutch bell and gearing p. 47-49
• Gearing chartFinal drive formula and clutch bell options (XRAY PDF) (opens in a new tab)PDF p. 49
• Exploded viewExploded view, XT8'24 (XRAY PDF) (opens in a new tab)
• Parts listSpare parts list, XT8'24 (XRAY PDF) (opens in a new tab)358513, 354950

Sources

• Manual (PDF)teamxray.com (opens in a new tab)
• p1479766amainhobbies.com (opens in a new tab)
• Manual (PDF)teamxray.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
