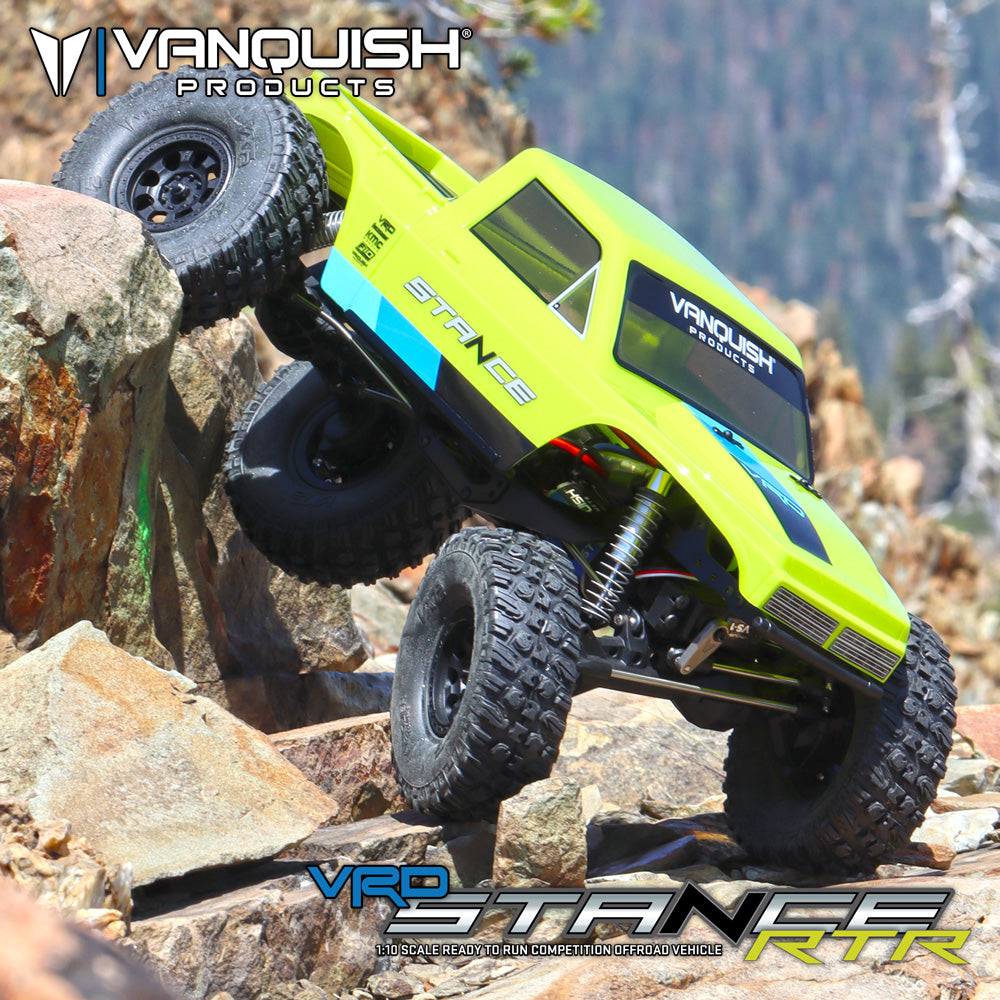

Vanquish Products VRD Stance RTR
1/10 scale · scale crawler · VPS09009A
- Final drive
- 73.40:1
- Tire
- 120.65mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 15TStock | Stock |
| Spur | 56TStock | Stock |
| Transmission & axle | 19.66:1Derived | Derived |
| Portal reduction (included above) | 1.67:1Stock | Stock |
| Spur ÷ pinion | 3.733:1Calculated | Calculated |
| Final drive | 73.40:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 120.7mmStock | Stock |
| Rollout | 5.2mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not published | |
| Battery | Up to 3SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | VPS09009A | |
| Scale | 1/10 | |
| Class | Scale crawler | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 15T | 32P | Not published | Not published |
| Spur | 56T | 32P | Not applicable | Not published |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft.
How these numbers were settled
Vanquish prints 'Front Axle Ratio 5.25:1, Rear Axle Ratio 6.25:1, Pinion 15T 32P, Spur 56T 32P, Overall Front Ratio 57.8:1, Overall Rear Ratio 73.4:1, Final Overdrive 24%'.
- Front and rear run different portal gears, so the rear total is used and the front is 57.8:1.
- The ratio after the spur is the rear reduction, 73.4 x 15 / 56 = 19.66.
- The rear portal reduction is 6.25 / 3.75 = 1.67, using the 8/30T ring and pinion the current version's page names.
- Tires are Vanquish's VXT2 red compound, which the VXT2 tire page prints as 4.75 in tall, so 120.65mm.
- The VM-1 motor is a 35T brushed can, so there is no KV.
- The VE-1 ESC is Vanquish's version of the Hobbywing 1060, and Vanquish states it is 3S LiPo capable.
- Green (A), silver (B), Progress Blue (C) and graphite (D) share the spec; the later C and D add HD lower links and machined ring and pinion gears.
Sources
- vrd-stance-rtr-greenvanquishproducts.com (opens in a new tab)
- vrd-stance-rtr-progress-bluevanquishproducts.com (opens in a new tab)
- vxt2-1-9-tires-2-red-compou…vanquishproducts.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
