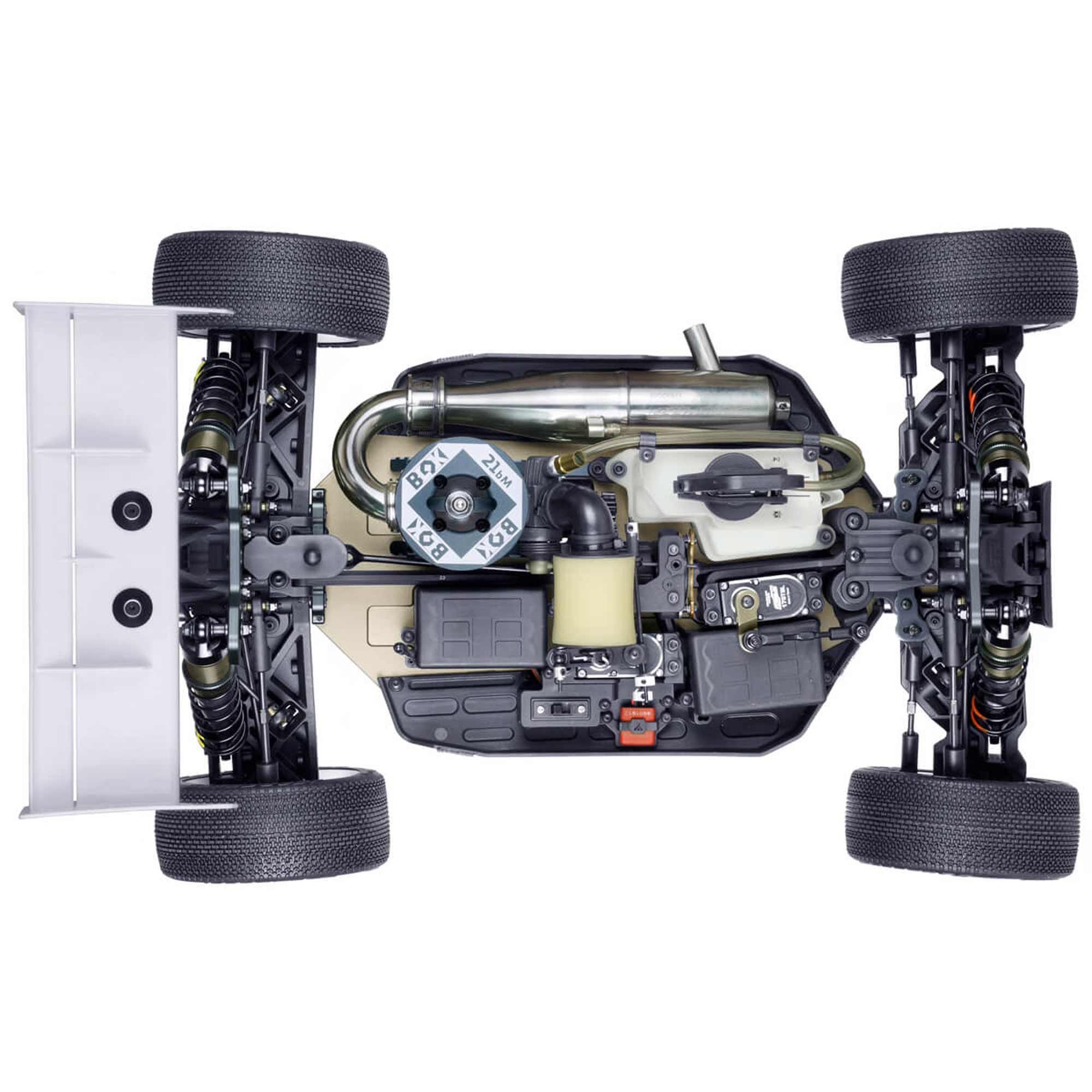

Tekno RC NB48 2.1

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

How does this gearing compare with similar cars? What's a normal final drive for your RC?

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft.

Buying a new pinion or spur? Check what’s fitted first: Why your RC's gear specs might not add up

How these numbers were settled

Released in 2022 and since discontinued, this nitro kit needs its own engine, tuned pipe, radio, servos, fuel equipment, wheels and tires.

• The parts list gives a 48 tooth steel spur gear, a 13 tooth clutch bell, and a differential running a 40 tooth ring gear against a 12 tooth pinion gear.
• Multiplying those together gives a final drive of about 12.3 to 1.

Sources

• Manual (PDF)teknorc.com (opens in a new tab)
• TKR9301towerhobbies.com (opens in a new tab)
• 27blog.teknorc.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
