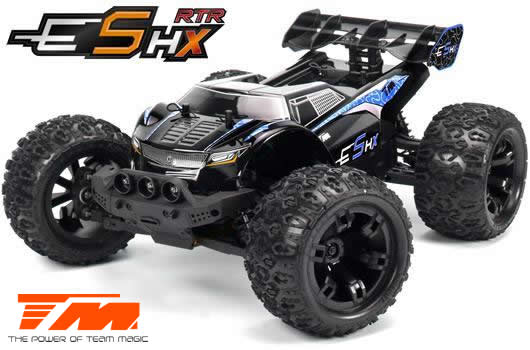

Team Magic E5 HX RTR

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower.

How these numbers were settled

Team Magic's E5 series parts list marks a 9T M1.0 pinion (KF6602-9), the 46T spur (TM510108) and the 43T/11T bevel gears (TM510102) as stock.

• The centre differential is an option on this version, so the spur drives the centre shaft and the 43/11 bevel sets in the axles give 3.91 after the spur; that layout is read from the parts list, not from an exploded view.
• The total is worked out as 46/9 x 3.91 = 19.98.
• The tire is listed by Team Magic Europe as 5.1x3.25x2.75, a 5.1in (130mm) outer diameter.
• The motor is a 550 size 4400KV brushless (THOR 3660 in the parts list) and the 80A ESC is rated for 2-3S LiPo.
• Team Magic's 60 km/h on 2S and 85 km/h on 3S carry an asterisk and sit above what the stock gearing gives (about 45 km/h and 68 km/h at full charge), so they are not recorded as stock claims.
• The parts list dates from 2017; the current page repeats the motor, ESC and tire but not the gearing.

Sources

• article.phpteammagiceurope.net (opens in a new tab)
• Manual (PDF)teammagic-shop.de (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
