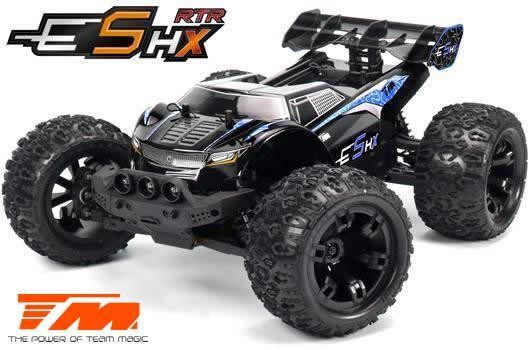

Team Magic E5 HX

The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with.

• Monster trucks have tall tires and long suspension travel, built for jumping and rough ground rather than a race track.

All four wheels are driven. That gives more grip under power, especially on loose ground.

• The cost is more parts to maintain.

A brushed motor carries current through carbon brushes that rub on the commutator.

• It is cheaper and smooth at low speed.
• The brushes wear and the motor loses power over time.

Ready to run: built at the factory with the electronics installed.

• Some come without a battery or charger; the maker's box contents say which.

The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement.

• A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.

The maker's product number for this exact version.

• A V2, a new color, or a kit instead of an RTR usually has a different number, and parts can differ between them.
• Check it against your box or receipt before ordering parts.

The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite.

• It depends on the motor you fit, so the maker does not list one.

The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter.

• Pinion and spur must have the same pitch, or tooth size, to mesh.

Every reduction after the spur, multiplied together: transmission, differentials and axle gears.

• It is fixed by the design; the gearing you change is the pinion and spur.

How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed.

The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller.

• At high speed tires can balloon and grow, so the real gearing gets taller as the car goes faster.

Brushed motors are commonly described by can size and turns. No motor KV is published for this vehicle; turns alone cannot supply an exact value.

The highest LiPo cell count the maker rates the electronics for. Each cell is 3.7 V nominal and 4.2 V fully charged.

• 3S is 11.1 V nominal and 12.6 V off the charger.
• Running more cells than this risks the ESC and motor.
• Many cars also run on fewer cells, only slower.

No motor KV is published for this model, so the stock specification does not calculate top speed. Compare gearing by rollout, or use a labeled motor reference in the calculator.
