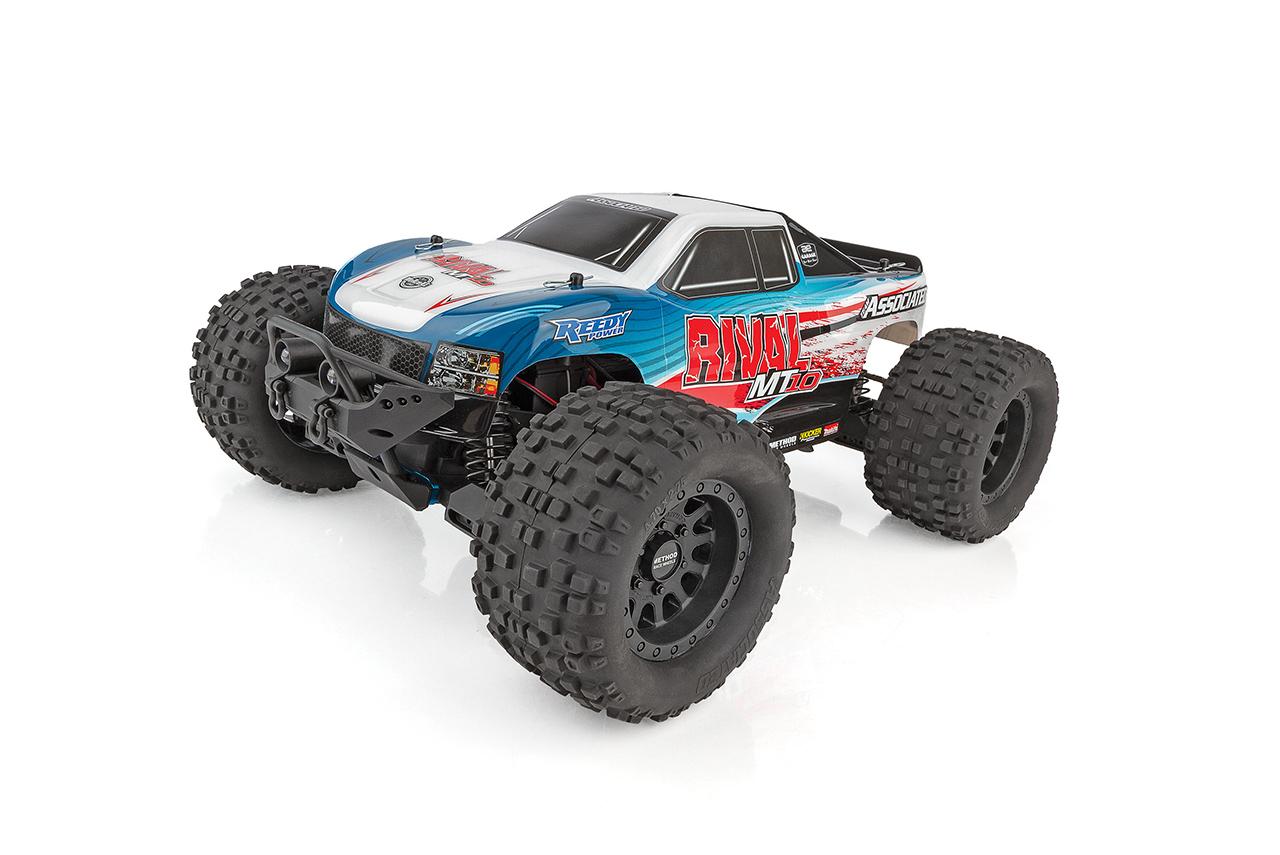

Team Associated Rival MT10 RTR

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.

In our catalog, half of 1/10 monster trucks run between 11.0:1 and 15.2:1 on stock gearing; this one is 12.8:1. What's a normal final drive for your RC?

How these numbers were settled

The original Rival MT10 RTR came out in January 2020 and has since been discontinued, the truck before the Rival MT10 V2.

• Associated's parts list for this part number names a 12 tooth pinion and a 54 tooth spur, and the truck's own specifications page lists an internal gear ratio of 2.85 to 1, which multiplies out to about 12.8 to 1 overall.
• The specifications page also gives the weight as 2850 grams and says the truck runs on 3S LiPo, pairing a Reedy 3300kV brushless motor with a water resistant Reedy speed control.
• A tire diameter was not published.
• A LiPo combo version, part 20516C, is the same truck bundled with a charger and battery.

Sources

• RTRportal.associatedelectrics.com (opens in a new tab)
• specsportal.associatedelectrics.com (opens in a new tab)
• Manual (PDF)img2.associatedelectrics.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.

When a maker’s documents give different figures: Why your RC's gear specs might not add up
