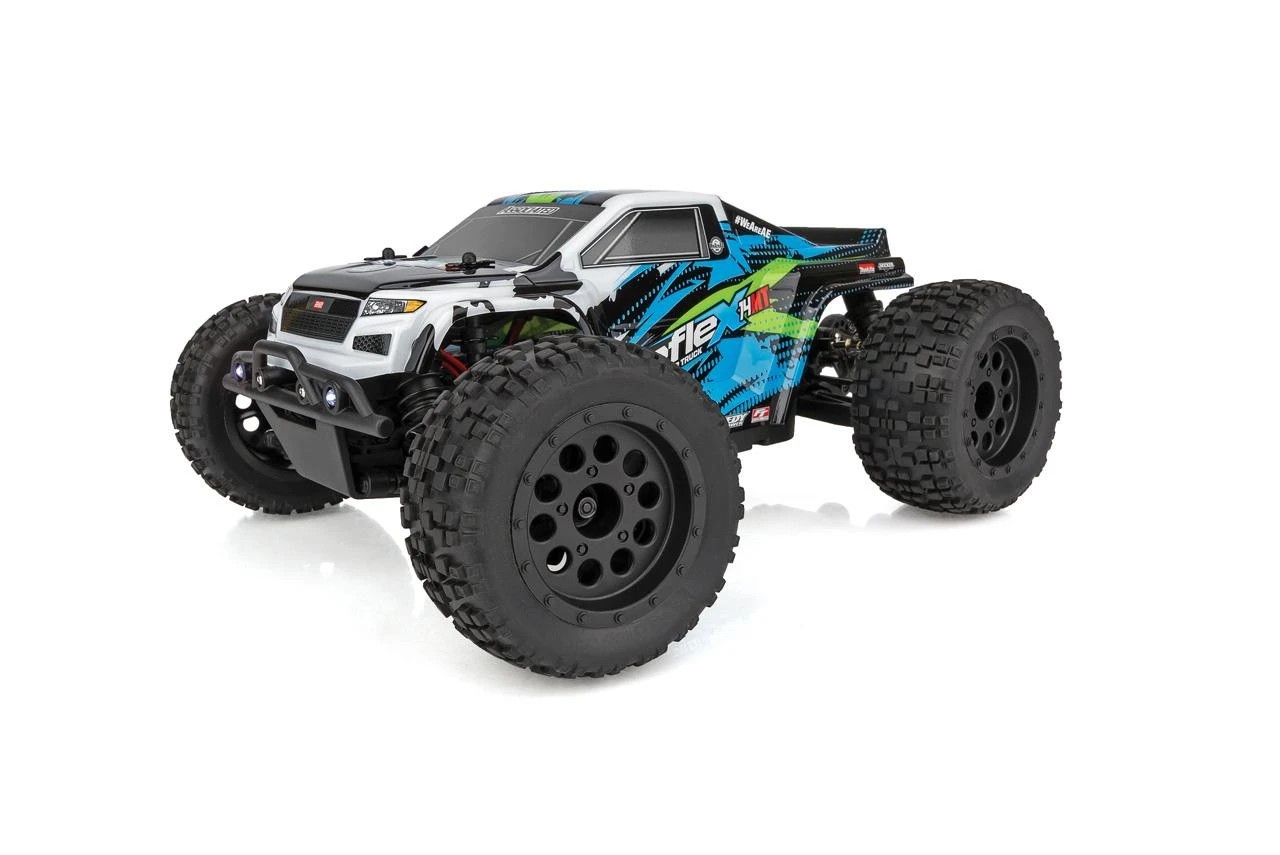

Team Associated Reflex 14MT Monster Truck RTR
1/14 scale · monster truck · 20174
- Final drive
- 8.92:1
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 16TStock | Stock |
| Spur | 58TStock | Stock |
| Transmission & axle | 2.46:1Stock | Stock |
| Final drive | 8.92:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Wheel hex | 12 mmStock | Stock |
| Power | ||
| Motor | 4500KVStock | Stock |
| Motor shaft | Not published | |
| Battery | Up to 2SLiPoStock | Stock |
| Stock motor | Reedy 4500kV brushless motorStock | Stock |
| Stock ESC | Reedy SC300-BLStock | Stock |
| Battery connector | T-PlugStock | Stock |
| Performance | ||
| Theoretical top speed | Not published | |
| Chassis | ||
| Width | 237 mm9.3 inStock | Stock |
| Shock oil, front | 30 wtStock | Stock |
| Shock oil, rear | 30 wtStock | Stock |
| Vehicle | ||
| Part number | 20174 | |
| Scale | 1/14 | |
| Class | Monster truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 16T | Mod 0.5 | 2.3 mm | 21532 (opens in a new tab) |
| Spur | 58T | Mod 0.5 | Not applicable | 21527 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The manual fits a 16T 0.5 mod pinion (21532, p. 15) meshing with a 58T spur (p. 16), and Associated's 1:14 Drive Gear Set (21527) lists the 58T spur as the one used in the RTR.
- Associated prints a 2.46:1 transmission ratio, which matches the 37T ring gear and 15T pinion in each diff (21563), for an 8.918:1 final drive, the same gearing as the Reflex 14B and 14T.
- The Reedy motor is rated 4500kV and the Reedy SC300-BL ESC is rated for 2S LiPo.
- Associated does not publish the diameter of the 14MT tires (21620), so the tire size is left blank.
- The product page prints a 312mm length and the press release 492.4mm, so the length is left blank.
- The blue and purple 14MT (20190) is the same truck in another colour.
