Tamiya DF-02 Chassis

Name: Tamiya DF-02
Brand: Tamiya

1/10 scale · 4WD buggy chassis · sold as kits

Tamiya's DF-02 is a 1/10 four-wheel-drive, shaft-driven buggy chassis built from a kit, sold today as the Aero Avante.

It pairs a 70T spur with a 2.60:1 gearbox and axle stage on a 266 mm wheelbase. Tamiya's chart for that spur runs from 9.58:1 on a 19T pinion to 11.38:1 on a 16T, and the kit pinion sits at the tall end of it. The pinion, motor and tires come with each kit rather than with the chassis, so enter yours in the gearing tool.

Transmission & axle: 2.60:1
Spur: 70T
Wheelbase: 266mm
Introduced: 2004

Gearing Top speedverified

The pinion, motor and tires come with each kit: enter yours in the gearing tool.

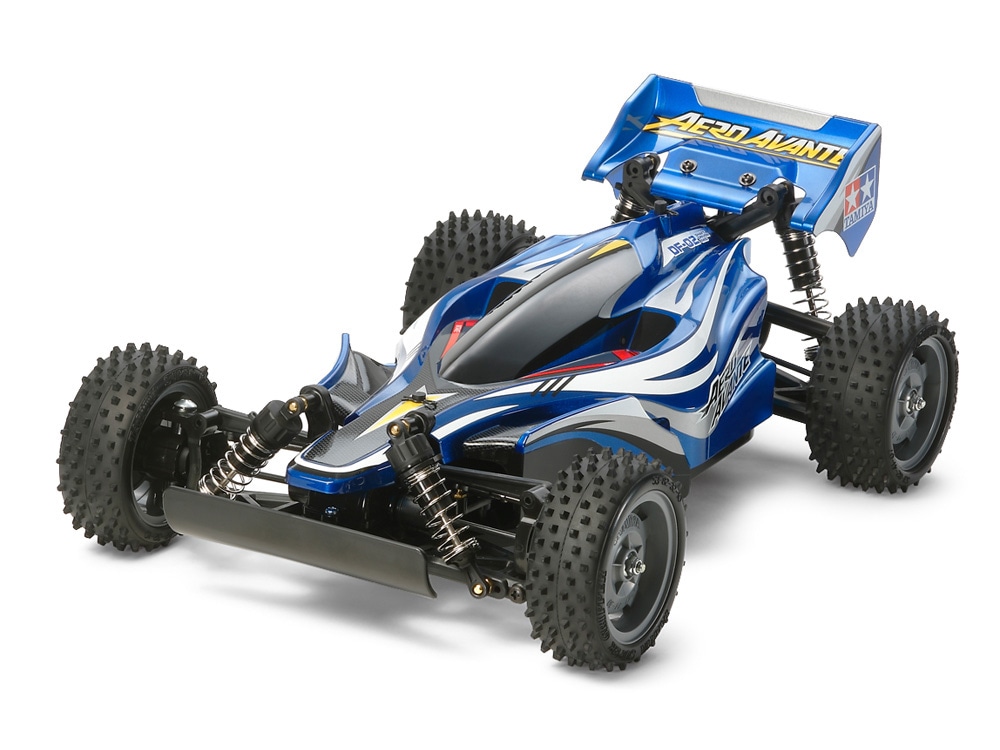

Tamiya DF-02 — Photo: Tamiya (opens in a new tab)

Kits on this chassis Built on the DF-02

Each kit adds its own body, tires, pinion and motor. The chassis figures below apply to all of them.

Kit	Part no.	Maker page
Aero Avante	58550	tamiya.comPage (opens in a new tab)

Specifications

Last modified Sep 28, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Buggies are low, light off-road cars built for jumps and fast corners on dirt, clay or turf tracks. Drive All four wheels are driven. That gives more grip under power, especially on loose ground. The cost is more parts to maintain. Build A kit you build yourself from parts. Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body. The manual lists what to add. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
Class	Buggy
Drive	4WD
Build	Kit
Scale	1/10
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. This one is worked out from the tooth counts the maker publishes. Final drive How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed. The range comes from the maker's gearing chart for the pinions it lists.
Pinion	With each kit
Spur	70TStock	Stock
Transmission & axle	2.60:1Derived	Derived
Final drive	9.58 to 11.38:1 on 19T to 16T pinionsMaker's chart	Maker's chart
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. Race tires wear down over a day, and a smaller tire gears the car shorter.
Tire diameter	With each kit
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	With each kit
Battery	With each kit
Size & weight
Wheelbase The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly.
Wheelbase	266 mm10.5 inStock	Stock

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how.
With each kit means each kit on this chassis brings its own, so enter yours in the gearing tool.
Maker’s chart is the ratios the maker prints for this chassis with the pinions it names.

How these numbers were settled

The DF-02 manual (printed for the Gravel Hound) names the '70T Spur gear' in the rear gearbox (PDF p. 4) and prints a gear ratio chart for it: 16T 11.38, 17T 10.71, 18T 10.11 and the standard 19T 9.58 (PDF p. 7).

Tamiya prints the ratio for the complete drive rather than the stage after the spur, so it is derived: 9.58 x 19/70 = 2.600, and the same 2.6 gives every other cell of the chart.
The Aero Avante page prints 'ギヤ比 9.58' with 'シャフト駆動4WD DF-02' and a 266mm wheelbase.
The pinion, motor and tires come with each kit, so they are not part of the chassis figures: enter yours in the gearing tool.
