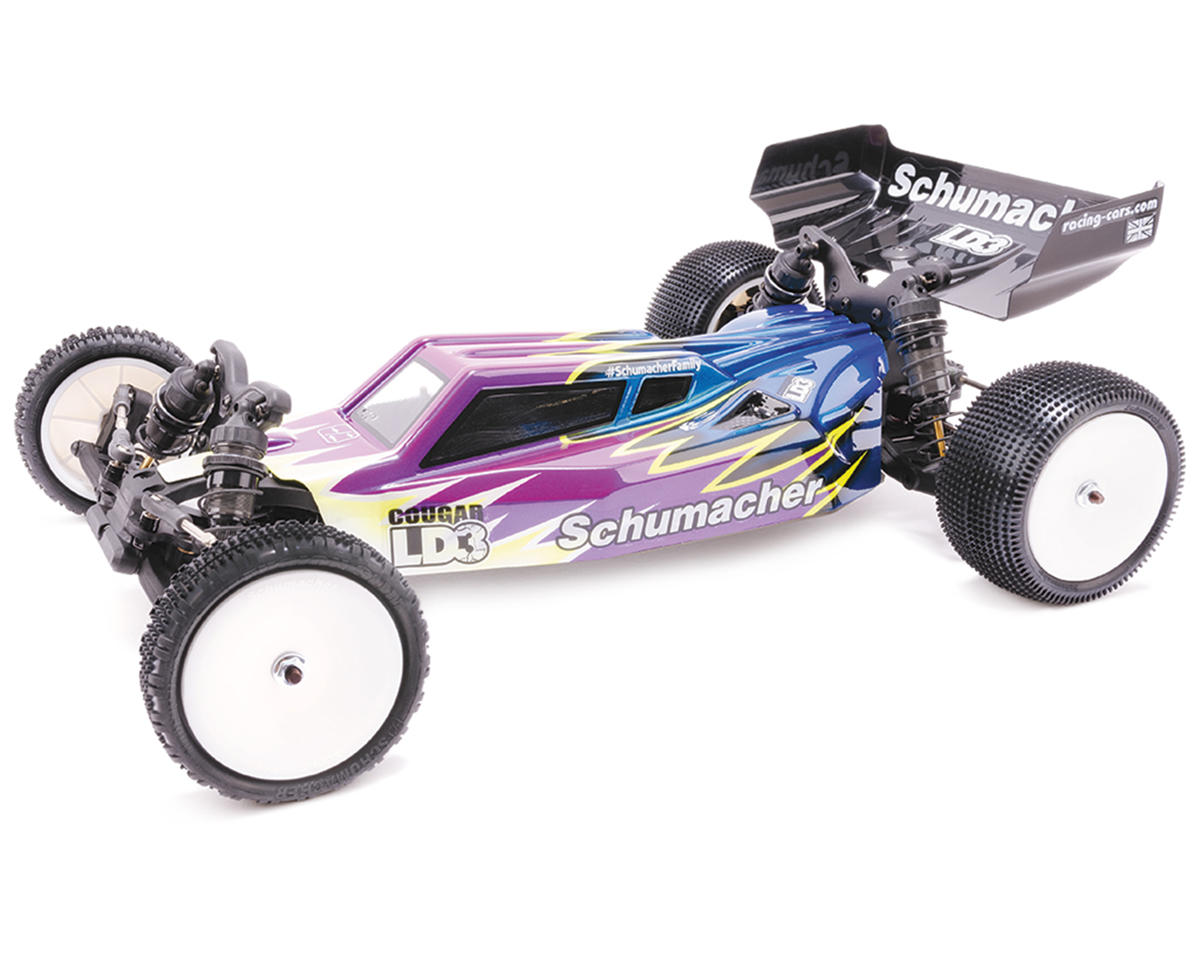

Schumacher Cougar LD3S (Stock Spec)

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.

How these numbers were settled

2WD race kit, Stock spec: the product page lists a slipper lockout assembly with an alloy layshaft and a 71T spur, in place of the Mod kit's 80T slipper.

• The LD3 manual covers both kits, carries the 71T lockout spur (U7671) in its spares list and prints the gear ratio as 2.53:1; its recommended gearing for 17.5T motors is 31/71, a 5.80 total.
• Motor, pinion, speed controller and tyres are not included.

Documents

• ManualInstruction manual (Schumacher PDF) (opens in a new tab)
• Exploded viewExploded diagram (Schumacher PDF) (opens in a new tab)

Sources

• cougar-ld3s-stock-spec-kit-…racing-cars.com (opens in a new tab)
• Manual (PDF)racing-cars.com (opens in a new tab)
• lockout-71t-spur-gear-ld-2-…racing-cars.com (opens in a new tab)
• searchracing-cars.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
