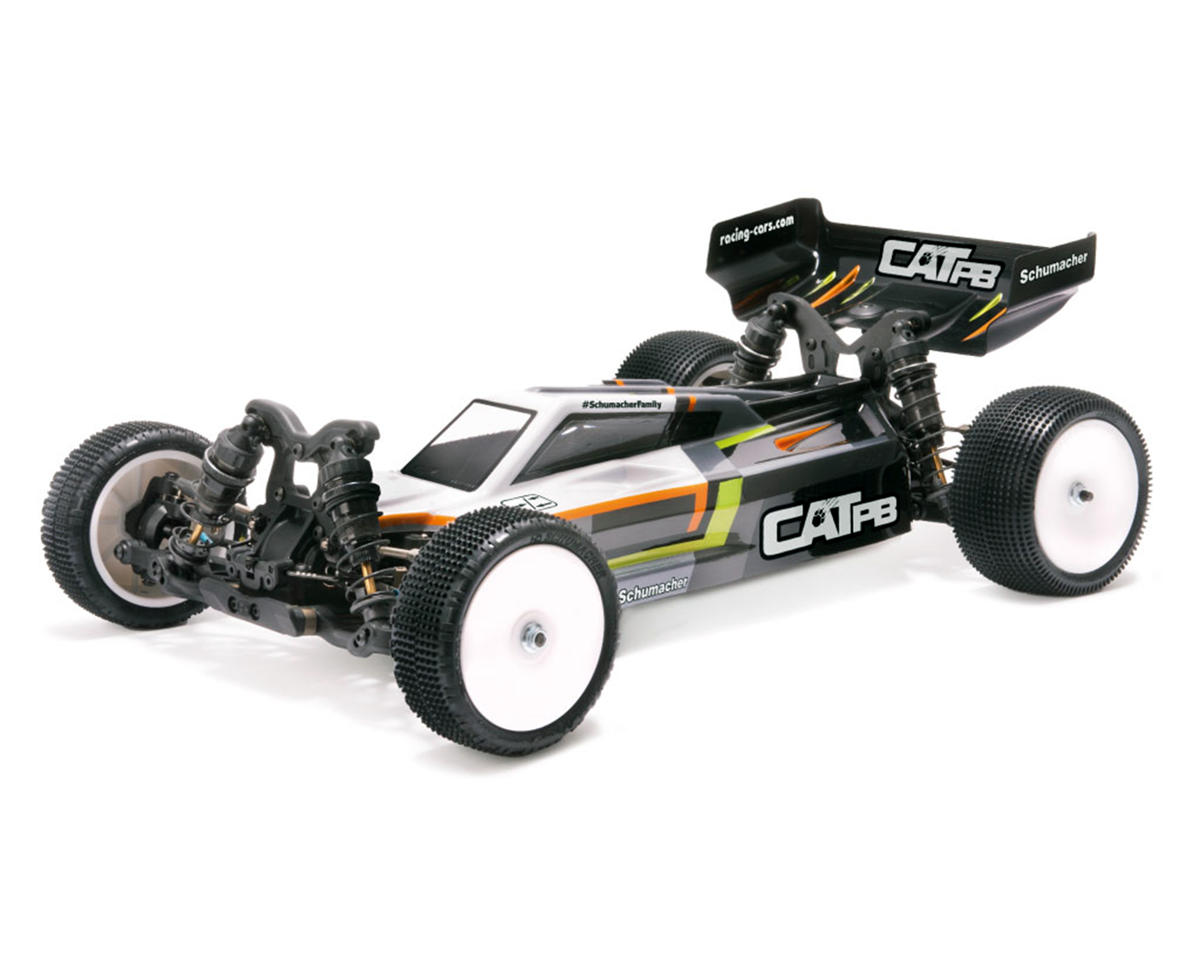

Schumacher CAT PB (PB-M / PB-D)

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.

How these numbers were settled

4WD race kit sold in Mod spec (K222, slipper and front brake unit) and Dirt spec (K223, three diffs); both share the CAT PB manual and its gear chart.

• The manual prints the gear ratio as 2.50:1, and its chart reconciles with spur over pinion times 2.50 (83/16 gives 12.96).
• The stock spur is left blank because Schumacher's sources disagree: the current product pages say an 80T spur, while the manual's spares list and the Mod kit set-up sheet give 83T.
• Motor, pinion, speed controller and tyres are on the list of items to buy.

Documents

• ManualInstruction manual (Schumacher PDF) (opens in a new tab)
• Exploded viewExploded diagram (Schumacher PDF) (opens in a new tab)

Sources

• Manual (PDF)racing-cars.com (opens in a new tab)
• cat-pb-m-kit-k222racing-cars.com (opens in a new tab)
• cat-pb-d-kit-k223racing-cars.com (opens in a new tab)
• Manual (PDF)racing-cars.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
