VehiclesRlaarlo Dragon Scale Knight (DSK) Roller

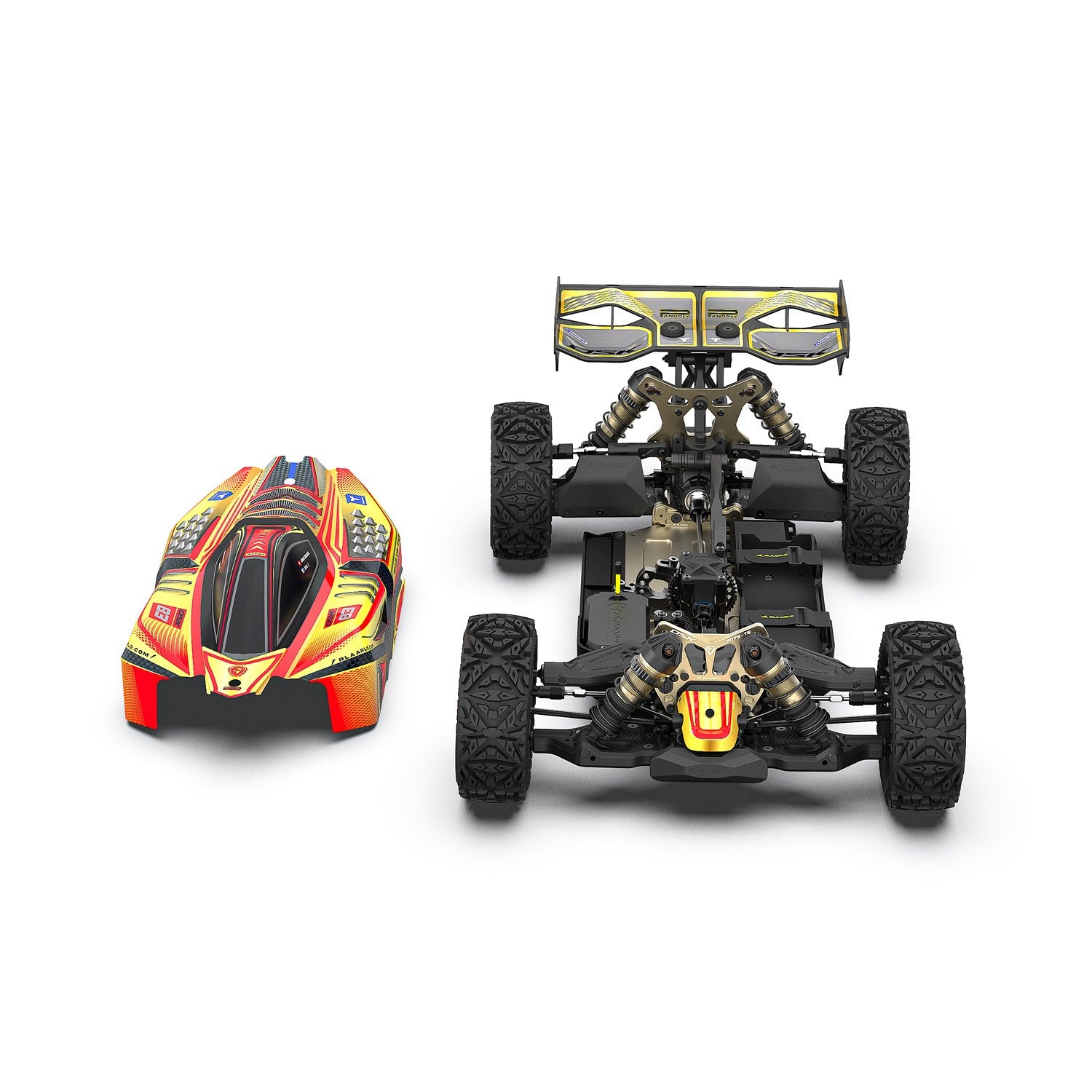

Rlaarlo Dragon Scale Knight (DSK) Roller
1/8 scale · buggy · DSK08-Roller-R
- Final drive
- 9.70:1
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 17TStock | Stock |
| Spur | 46TStock | Stock |
| Transmission & axle | 3.58:1Derived | Derived |
| Final drive | 9.70:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Power | ||
| Motor | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | DSK08-Roller-R | |
| Scale | 1/8 | |
| Class | Buggy | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
How these numbers were settled
Roller: motor, ESC, servo, radio and battery are not included, so KV and cell count are the buyer’s.
- Rlaarlo’s spec table gives a 17T motor pinion, a 46T spur and an overall drive ratio of 9.7; the table’s 2.71 internal drive ratio is the spur over the pinion, so the after-spur figure is worked out as 9.7 x 17 / 46 = 3.585.
- The table lists tire diameters of 118mm for the RTR and 115mm for the kit but does not say which set the roller ships with, so the tire is left blank.
- DSK08-Roller-B is the blue version.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
