VehiclesMugen Seiki MBX8T

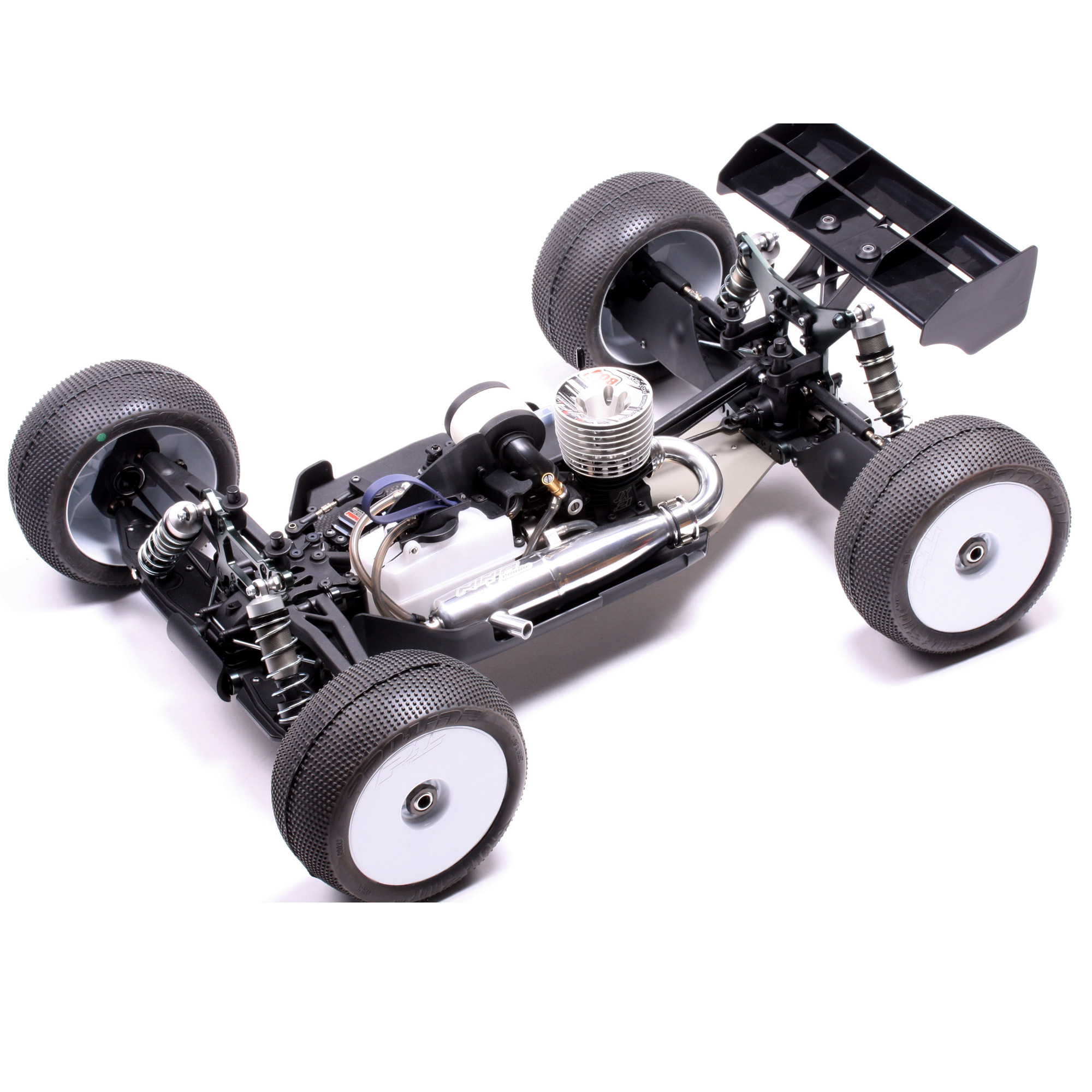

Mugen Seiki MBX8T
1/8 scale · truggy · MUGE2023
Engine powered, so there is no motor KV: compare gearing by rollout.
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Vehicle | ||
| Class | Truggy | |
| Drive | 4WD | |
| Power | Nitro | |
| Build | Kit | |
| Scale | 1/8 | |
| Part number | MUGE2023 | |
| Drivetrain | ||
| Pinion | Not published | |
| Spur | 47TStock | Stock |
| Transmission & axle | 4.60:1Derived | Derived |
| Final drive | Not published | |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Power | ||
| Motor | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
How these numbers were settled
Unveiled in 2018 and since discontinued, this nitro truggy kit pairs a 47 tooth lightweight spur gear with a 10 tooth straight cut bevel gear and a 46 tooth conical gear, a ratio of 4.6 to 1 after the spur.
- The kit box lists a pinion gear as included, but its tooth count is not printed, so the final drive is left blank.
- It needs its own engine, tuned pipe, radio and servos to run.
Sources
- MUGE2023horizonhobby.com (opens in a new tab)
- MUGE2023towerhobbies.com (opens in a new tab)
- mugen-seiki-mbx8t-1-8-off-r…beachrc.com (opens in a new tab)
- mugen-seiki-unveils-new-mbx…liverc.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
