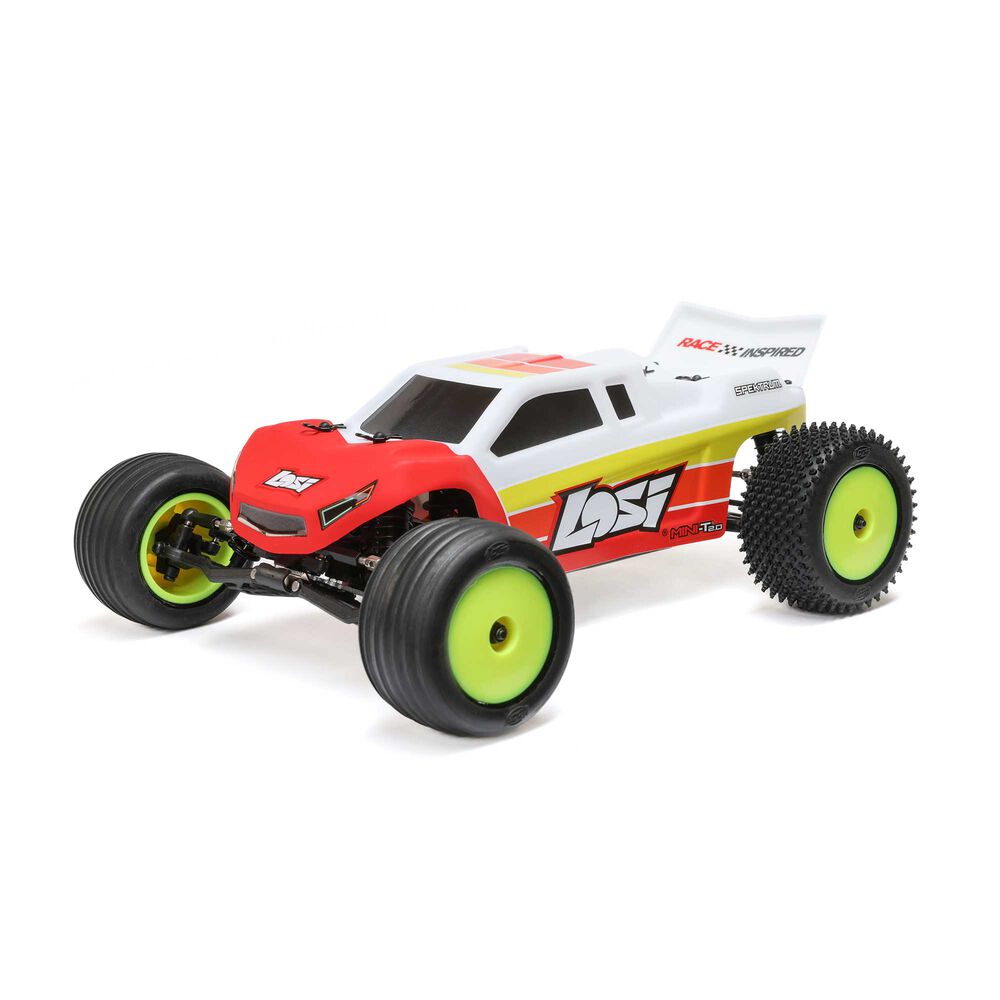

VehiclesLosi Mini-T 2.0 2S 2WD RTR Brushless
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 18TStock | Stock |
| Spur | 60TStock | Stock |
| Transmission & axle | Not published | |
| Final drive | Not published | |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Power | ||
| Motor | 6000KVStock | Stock |
| Motor shaft | Not published | |
| Battery | Up to 2SLiPoStock | Stock |
| Stock motor | Spektrum Firma Brushless Motor/ESC 2-in-1 Combo, 6000KvStock | Stock |
| Stock ESC | Spektrum Firma Brushless Motor/ESC 2-in-1 Combo, 6000KvStock | Stock |
| Battery connector | IC2Stock | Stock |
| Performance | ||
| Theoretical top speed | Not published | |
| Chassis | ||
| Length | 232 mm9.1 inStock | Stock |
| Width | 179 mm7 inStock | Stock |
| Height | 91 mm3.6 inStock | Stock |
| Wheelbase | 160 mm6.3 inStock | Stock |
| Vehicle | ||
| Part number | LOS-1056 | |
| Scale | 1/18 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 18T | Mod 0.5 | 2 mm | LOS212022 (opens in a new tab) |
| Spur | 60T | Mod 0.5 | Not applicable | LOS212016 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Losi's spec table lists an 18T pinion and a 60T spur, and the manual's parts list names the same gears (LOS212022 18T 0.5M pinion, LOS212016 60T 0.5M spur).
- Losi prints no ratio after the spur for this truck, so the transmission ratio and final drive are left blank.
- The Mini-B brushless page prints 2.714 for a transmission that uses the same spur, idler and case part numbers, but Losi does not state it for the Mini-T.
- The brushless truck runs directional front and step pin rear tires, not the BK Bar tires of the brushed Mini-T 2.0, and Losi does not publish their diameter.
- Red (T1) and blue (T2) versions differ only in colour.
Documents
- ManualOwner's manual (Horizon PDF) (opens in a new tab)Replacement parts p. 10 onward
- Exploded viewParts explosion, multilingual (Horizon PDF) (opens in a new tab)
Sources
- LOS-1056horizonhobby.com (opens in a new tab)
- Manual (PDF)production-na01-horizonhobby.demandware.net (opens in a new tab)
- LOS212022horizonhobby.com (opens in a new tab)
- LOS212016horizonhobby.com (opens in a new tab)
- SPMXSEM0503horizonhobby.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
