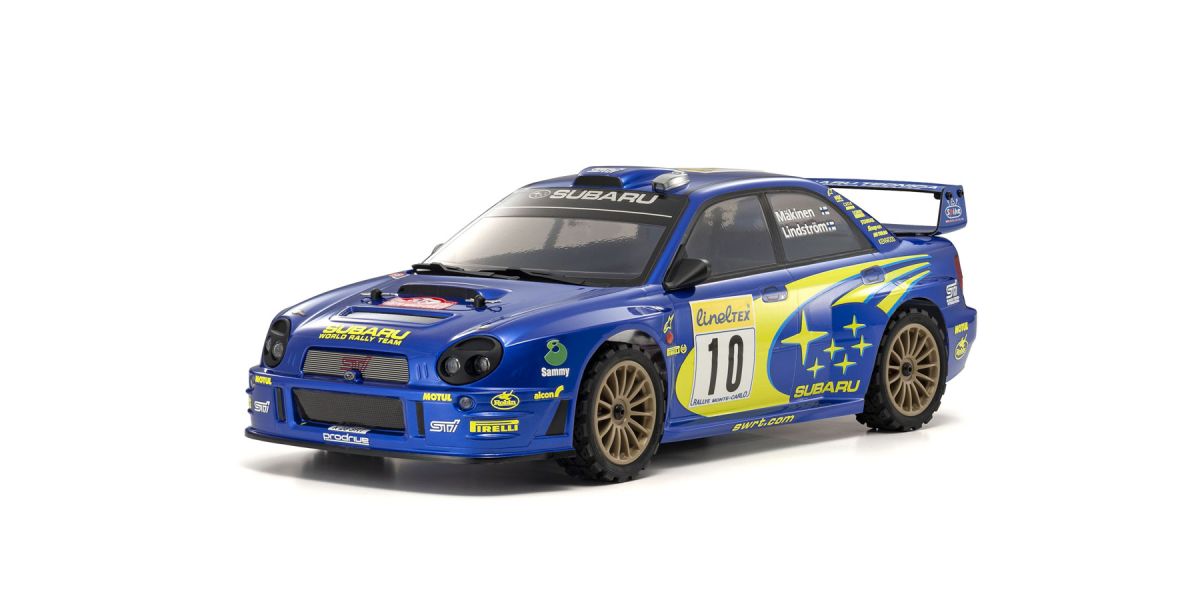

VehiclesKyosho Fazer Mk2 FZ02-R
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 32TStock | Stock |
| Spur | 68TStock | Stock |
| Transmission & axle | 3.08:1Stock | Stock |
| Spur ÷ pinion | 2.125:1Calculated | Calculated |
| Final drive | 6.54:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 70mmStock | Stock |
| Rollout | 33.6mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Battery | Up to 2SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | 34481T1 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
How these numbers were settled
The rally-spec FZ02-R: same 6.54:1 as the FZ02 but on taller 70mm rally tires, which is why it is listed separately.
- Kyosho's Technical Data gives 'Gear Ratio 6.54:1' and 'Tires (F/R): 70x27mm'.
- Same FZ02 driveline as the FZ02L: 32T pinion on Kyosho's spec block, 68T spur confirmed by spare part FA556-68 'TC Spur Gear 68T FZ02', total 6.54:1.
- The G14L is a brushed motor, so there is no KV rating.
Sources
- 34481t1rc.kyosho.com (opens in a new tab)
- 1-10-scale-radio-controlled…kyoshoamerica.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
