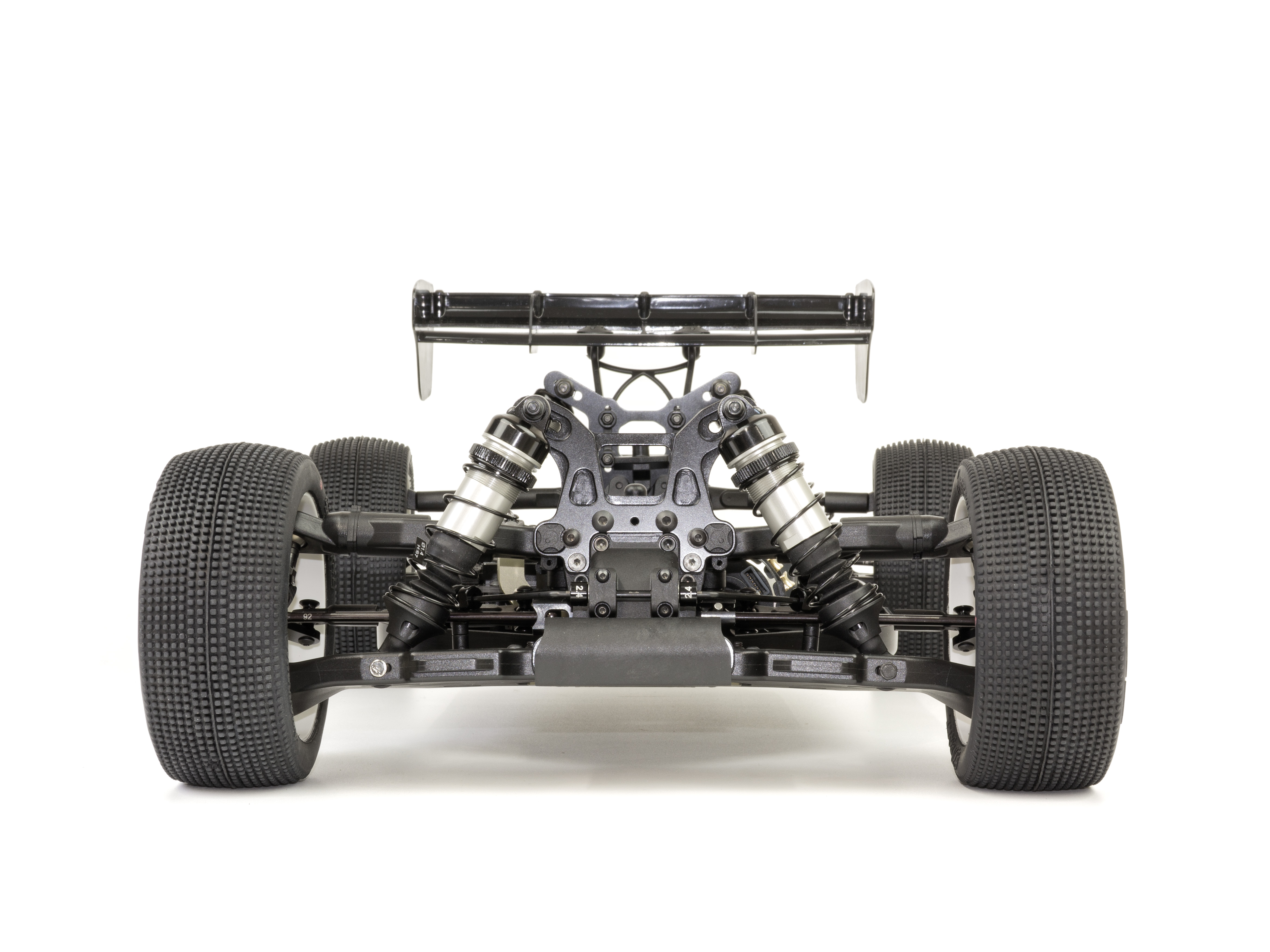

VehiclesInfinity IFB8EV
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 16TStock | Stock |
| Spur | 46TStock | Stock |
| Transmission & axle | 3.31:1Derived | Derived |
| Final drive | 9.51:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | CM-00020 | |
| Scale | 1/8 | |
| Class | Buggy | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 16T | Not published | Not published | M175T16 (opens in a new tab) |
| Spur | 46T | Not published | Not applicable | M096 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Electric 1/8 buggy kit; motor, speed controller, battery, tires and wheels are not included, so KV and cell rating do not apply.
- Bag H (EV) supplies a 16T pinion (M175T16), the center diff carries a 46T spur (M096) with 45T and 47T as options, and each end uses a 43T bevel gear with a 13T pinion. 43/13 = 3.3077 after the spur, and 46/16 x 3.3077 = 9.51 is worked out, not printed.
- The tire size is left blank.
Documents
- ManualInstruction manual (Infinity PDF) (opens in a new tab)M175T16 Pinion Gear 16T, M096 46T Diff Spur Gear
- Exploded viewExploded view (Infinity PDF) (opens in a new tab)
- Parts listParts compatibility table, IFB8 series (Infinity PDF, Japanese) (opens in a new tab)M175T16, M096
Sources
- ifb8ev-1-8-electric-off-roadcreationmodel.net (opens in a new tab)
- Manual (PDF)creationmodel.net (opens in a new tab)
- M175T16infinity-rcshop.jp (opens in a new tab)
- Manual (PDF)infinity-rcshop.jp (opens in a new tab)
- Manual (PDF)infinity-rcshop.jp (opens in a new tab)
- M096infinity-rcshop.jp (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
