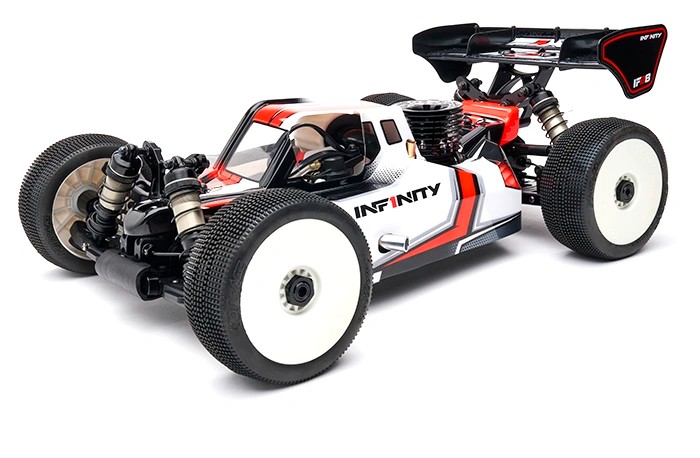

VehiclesInfinity IFB8
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 13TStock | Stock |
| Spur | 46TStock | Stock |
| Transmission & axle | 3.31:1Derived | Derived |
| Final drive | 11.70:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Scale | 1/8 | |
| Class | Buggy | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 13T | Not published | Not applicable | M108 (opens in a new tab) |
| Spur | 46T | Not published | Not applicable | M096 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Nitro 1/8 buggy kit; the .21 engine, tires and wheels are not included.
- Bag H2 supplies a 13T clutch bell (M108), the center diff carries a 46T spur (M096), and each end uses a 43T diff bevel gear (M099) with a 13T pinion (M093). 43/13 = 3.3077 after the spur, and 46/13 x 3.3077 = 11.70 is worked out, not printed.
- The tire size is left blank.
Documents
- ManualInstruction manual (Infinity PDF) (opens in a new tab)M108 Clutch Bell 13T, M096 46T Diff Spur Gear
- Exploded viewExploded view (Infinity PDF) (opens in a new tab)
- Parts listParts compatibility table, IFB8 series (Infinity PDF, Japanese) (opens in a new tab)M108, M096
Sources
- ifb8.creationmodel.netifb8.creationmodel.net (opens in a new tab)
- Manual (PDF)creationmodel.net (opens in a new tab)
- M108infinity-rcshop.jp (opens in a new tab)
- Manual (PDF)infinity-rcshop.jp (opens in a new tab)
- Manual (PDF)infinity-rcshop.jp (opens in a new tab)
- M096infinity-rcshop.jp (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
