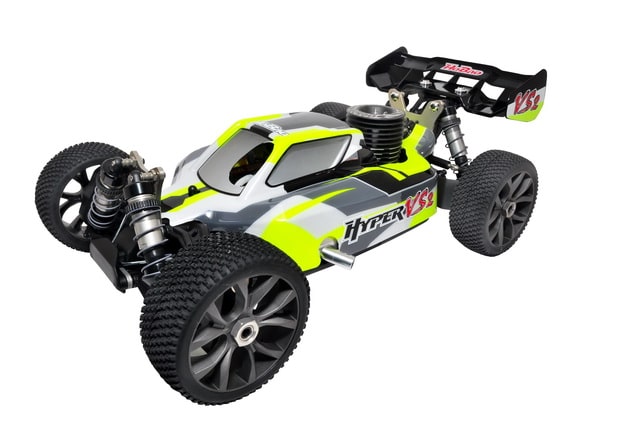

VehiclesHobao Hyper VS2 Nitro RTR
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 17TStock | Stock |
| Spur | 48TStock | Stock |
| Transmission & axle | 3.31:1Derived | Derived |
| Final drive | 9.34:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Wheel hex | 17 mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | HB-VS2-C30Y | |
| Scale | 1/8 | |
| Class | Buggy | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 17T | Not published | Not applicable | FR-24C (opens in a new tab) |
| Spur | 48T | Not recorded | Not applicable | Not recorded |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The RTR page lists a 17T steel clutch bell on the Hyper 30 engine (H-3032T), and the manual gives 16T or 17T for the Hyper 30; Hobao sells the 17T bell as FR-24C.
- The center spur is 48T, and the ratio after the spur is the 43T crown gear against the 13T diff pinion, 3.31:1.
- The 9.34:1 total is worked out from those tooth counts.
- Hobao prints only a 3.3 inch tread figure for the tires, which matches the wheel rather than the tire, so the tire diameter is left blank.
- The engine-less roller sold as HB-VS2 has its own sheet.
Sources
- hb-vs2-c30y-1-8-hyper-vs2-b…hobao-usa.com (opens in a new tab)
- Manual (PDF)hobao-racing.com (opens in a new tab)
- fr-24c-clutch-bell-17t-w-5x…hobao-usa.com (opens in a new tab)
- 85111-new-crown-gear-43t-fo…hobao-usa.com (opens in a new tab)
- 87028hobao-usa.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
