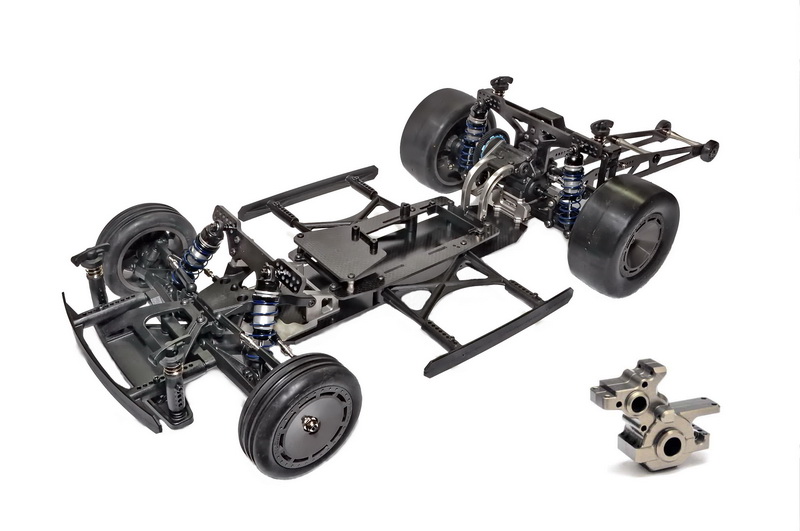

VehiclesHobao EX10
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 21TStock | Stock |
| Spur | 84TStock | Stock |
| Transmission & axle | 2.43:1Derived | Derived |
| Final drive | 9.71:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Wheel hex | 12 mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Chassis | ||
| Weight | 1.4 kg (3.1 lb)Stock | Stock |
| Length | 750 mm29.5 inStock | Stock |
| Width | 275 mm10.8 inStock | Stock |
| Height | 138 mm5.4 inStock | Stock |
| Wheelbase | 328 mm12.9 inStock | Stock |
| Diff oil, rear | 500KStock | Stock |
| Vehicle | ||
| Part number | HB-EX10 | |
| Scale | 1/10 | |
| Class | Street and speed-run body | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 21T | 48P | Not published | 40062 (opens in a new tab) |
| Spur | 84T | 48P | Not applicable | 40118 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The manual (step 35) fits a 21T 48P pinion (40062) to the motor, and it drives an 84T 48P spur (40118) on the slipper.
- Hobao's page lists the transmission as a 21T lay-shaft gear, a 27T idler and a 51T gear on the differential housing, so the ratio after the spur is 2.43:1 (51/21; the idler does not change it) and the total 9.71:1, worked out from the tooth counts.
- Hobao prints no ratio.
- Hobao's page lists a pinion among the items needed to complete the car, while the manual and Hobao USA's standard parts list for the EX10 both include the 21T pinion; the manual's 21T is shown here.
- An optional 94T spur (OP1-0059) and 22T to 24T pinions are sold as options.
- The car comes without body, motor, speed control, servo or radio but with wheels and tires (2.2in front, 3.0in belted rear slicks); Hobao does not publish the tire diameter, so it is left blank.
- The gear differential is filled with 500K silicone oil.
- Hobao USA currently sells it as HB-EX10+OP1-0062, bundled with the aluminium gearbox upgrade.
