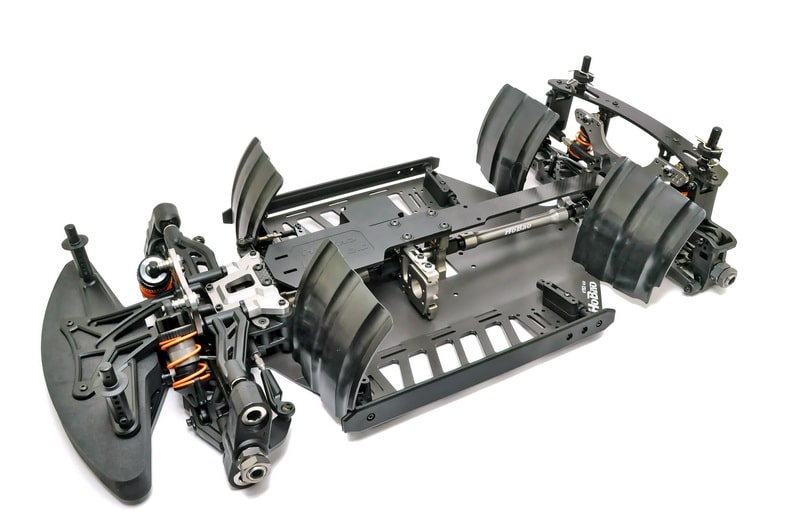

VehiclesHobao Extreme VT2-V2
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not applicable | |
| Spur | 34TStock | Stock |
| Transmission & axle | 3.31:1Derived | Derived |
| Final drive | Not applicable | |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Wheel hex | 17 mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Chassis | ||
| Weight | 2.54 kg (5.6 lb)Stock | Stock |
| Length | 560 mm22 inStock | Stock |
| Width | 302 mm11.9 inStock | Stock |
| Height | 160 mm6.3 inStock | Stock |
| Wheelbase | 413 mm16.3 inStock | Stock |
| Diff oil, front | 500KStock | Stock |
| Diff oil, rear | 50KStock | Stock |
| Vehicle | ||
| Part number | HB-VTE2-V2 | |
| Scale | 1/7 | |
| Class | Touring and drift body | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Spur | 34T | Mod 1 | Not applicable | 85137 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The center spool carries a 34T Mod 1 spur (85137) with an 8mm bore; Hobao says spurs up to 48T fit.
- The front and rear differentials use a 43T crown gear and a 13T pinion (85111, 87028), so the ratio after the spur is 3.31:1, worked out from the tooth counts; a 40T/15T set (OP-0146, OP-0147) is optional.
- The ARR is sold without motor, speed control, pinion, wheels, tires, body, servo or radio, so the pinion, total ratio and tire do not apply.
- The front differential is filled with #500K silicone oil and the rear with #50K; the shocks use #600 oil, a grade with no unit, so it is left blank.

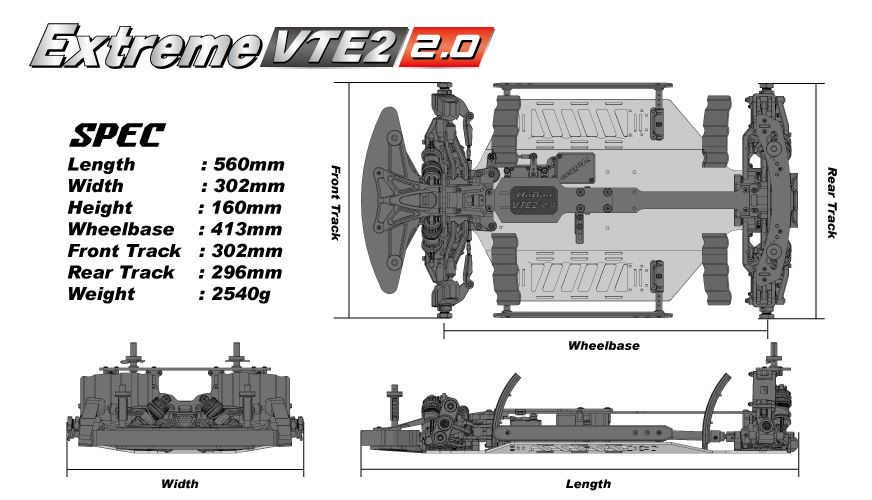

- Hobao's drawing, headed Extreme VTE2 2.0, gives a 413mm wheelbase and 2540g; the 1/8 Extreme VTE2 8 has the same drivetrain on a 360mm wheelbase.
Sources
- hb-vte2-v2-1-7-extreme-vt2-…hobao-usa.com (opens in a new tab)
- 20230907132601@VTE2%202.0%2…hobao-racing.com (opens in a new tab)
- Manual (PDF)hobao-racing.com (opens in a new tab)
- 03.jpghobao-usa.com (opens in a new tab)
- 1-7-on-road-extreme-vt2-v2-…hobao-usa.com (opens in a new tab)
- 85137-motor-gear-34t-1m-8mm…hobao-usa.com (opens in a new tab)
- 85138-center-spool-set-w-34…hobao-usa.com (opens in a new tab)
- 85111-new-crown-gear-43t-fo…hobao-usa.com (opens in a new tab)
- 87028hobao-usa.com (opens in a new tab)
- 85146-17mm-wheel-hub-set-an…hobao-usa.com (opens in a new tab)
- 85147-17mm-wheel-hex-hub-se…hobao-usa.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
