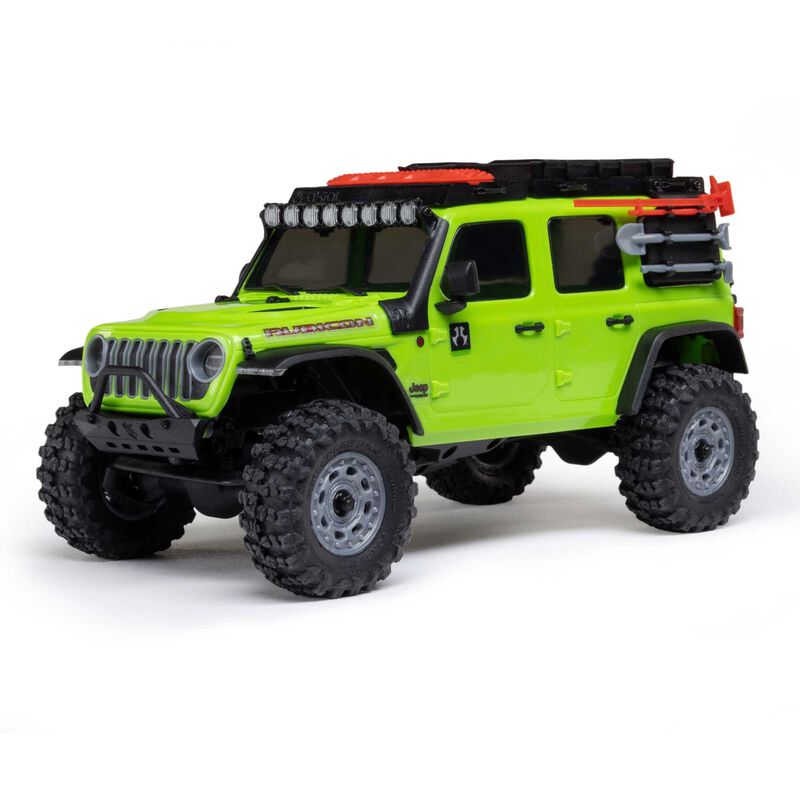

Axial SCX30 Jeep Wrangler JLU

The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with.

• Crawlers are built for slow, controlled climbing over rocks: very low gearing, flexible suspension and locked axles.

All four wheels are driven. That gives more grip under power, especially on loose ground.

• The cost is more parts to maintain.
• A crawler needs every wheel pulling to climb.

A brushed motor carries current through carbon brushes that rub on the commutator.

• It is cheaper and smooth at low speed.
• The brushes wear and the motor loses power over time.
• That low-speed smoothness is why so many crawlers use one.

Ready to run: built at the factory with the electronics installed.

• Some come without a battery or charger; the maker's box contents say which.

The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement.

• A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
• This one is 152 mm long.

The maker's product number for this exact version.

• A V2, a new color, or a kit instead of an RTR usually has a different number, and parts can differ between them.
• Check it against your box or receipt before ordering parts.

The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite.

• On this car one tooth changes the gearing by about 9.1%.
• Crawlers run small pinions for slow, precise wheel speed on climbs; a bigger one is quicker on the trail but harder to control on rocks.

The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter.

• Pinion and spur must have the same pitch, or tooth size, to mesh.

Every reduction after the spur, multiplied together: transmission, transfer case and axle gears.

• That chain is why a crawler's figure is much higher than other classes'.
• It is fixed by the design; the gearing you change is the pinion and spur.

How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed.

• Crawlers run far higher ratios than other classes, so the truck can creep and hold on a climb.

The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller.

• Crawler wheels are named by rim size, such as 1.9 or 2.2 inches; that is the wheel, not this tire diameter.

Brushed motors are rated by can size and turns rather than KV, so there is no KV to show.

The highest LiPo cell count the maker rates the electronics for. Each cell is 3.7 V nominal and 4.2 V fully charged.

• 2S is 7.4 V nominal and 8.4 V off the charger.
• Running more cells than this risks the ESC and motor.
• Many cars also run on fewer cells, only slower.

The motor fitted at the factory, as the maker names it.

• In a name like 3285, the digits usually give the can size: 32 mm across and 85 mm long. A bigger can makes more torque and sheds heat better.
• Brushed motors are often named by can size, such as 540 or 550, and by turns: fewer turns is faster.

The electronic speed control. It feeds power from the battery to the motor as you work the throttle, and usually powers the receiver and servo too.

• An amp figure in its name is normally the maker's continuous rating.
• A brushed ESC cannot run a brushless motor.
• Crawler ESCs usually have a strong drag brake, which holds the truck still on a slope when you let off the throttle.
• Set its low-voltage cutoff for LiPo, so a pack is not run flat.

A brushed motor has no KV rating, so no theoretical top speed is worked out. Compare gearing by rollout instead.

Overall length as the maker states it, usually with the body fitted.

• Useful for comparing real size, since scale labels are loose.

Overall width as the maker states it, usually with the body fitted.

• A wider car is more stable in corners and harder to roll over.

Overall height as the maker states it, usually with the body fitted.

• Useful when checking it fits a shelf, a bag or a car trunk.
