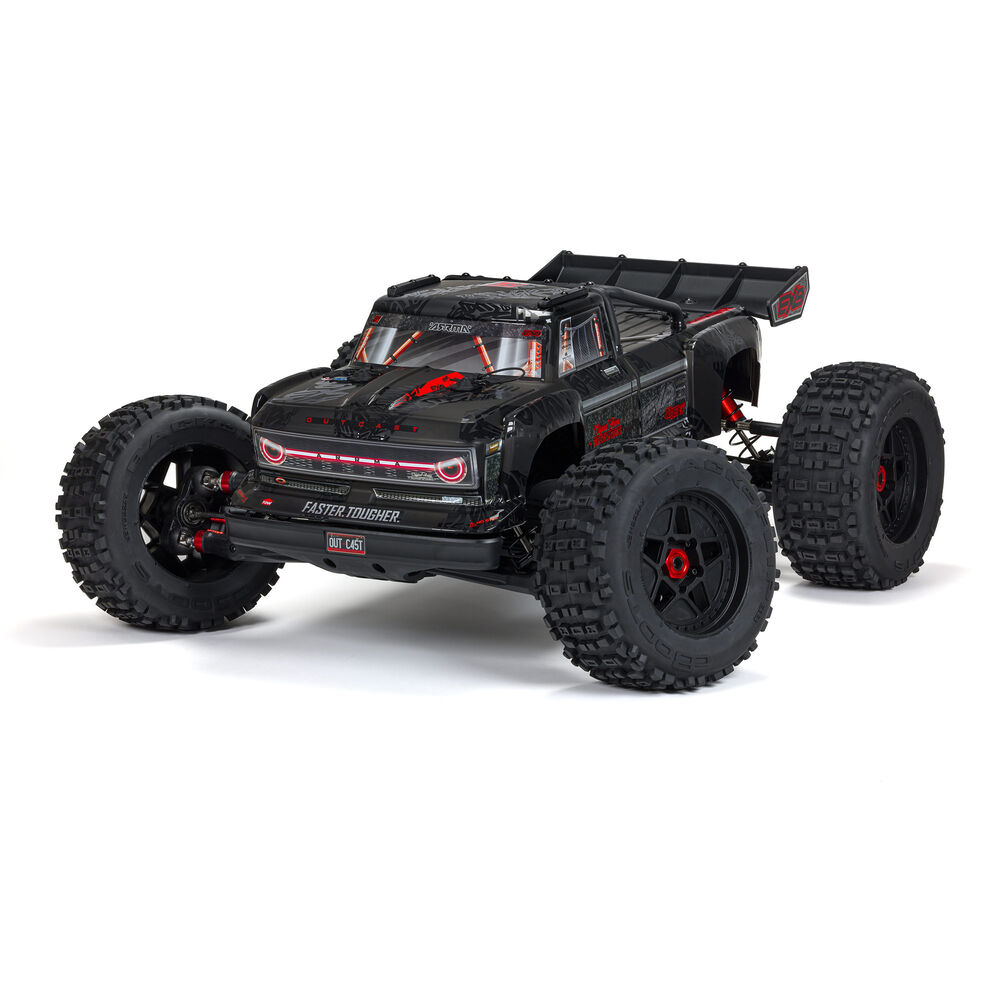

Arrma Outcast 8S EXB V2
1/5 scale · monster truck · ARA5810V2T1
- Final drive
- 18.51:1
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 23TStock | Stock |
| Spur | 47TStock | Stock |
| Transmission & axle | 9.06:1Stock | Stock |
| Final drive | 18.51:1Stock | Stock |
| Speed gearing, in the box | 30T / 47Tpinion / spurStock | Stock |
| Final drive, speed gearing | 14.19:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Power | ||
| Motor | 1100KVStock | Stock |
| Motor shaft | 8 mmStock | Stock |
| Battery | Up to 8SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not published | |
| Vehicle | ||
| Part number | ARA5810V2T1 | |
| Scale | 1/5 | |
| Class | Monster truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 23T | Mod 1 | 8 mm | ARA311043 (opens in a new tab) |
| Spur | 47T | Mod 1 | Not applicable | ARA310920 (opens in a new tab) |
| In the box, not fitted | ||||
| Speed pinion | 30T | Mod 1 | 8 mm | ARA311050 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft (8 mm on the stock motor). Gearing in the box is supplied, not fitted: the fitted set is what the figures and the calculators use. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The EXB version of the 1/5 Outcast 8S stunt truck, with a Spektrum Firma 5687 1100Kv motor and the Firma 160A Smart ESC V2 rated for 3S to 8S.
- Horizon prints Spur Gear 47T and Internal Gear Ratio 9.06, and the standard-parts list shows the 8S drivetrain: 47T spur, 19T idler, 39T spiral ring and 12T input.
- The exploded view, the parts tech pack and the interactive exploded view label the fitted pinion '23T STD 8mm' (ARA311043), so the stock total is 47/23 x 9.06 = 18.51.
- The manual's kit overview lists a supplied 30T Safe D8 'Speed' pinion (ARA311050), which gives 47/30 x 9.06 = 14.19.
- No diameter is published for the stock dBoots Back-Flip Big Block MT tire (ARA550111), so it is left blank too.
Documents
- ManualInstruction manual (Horizon PDF) (opens in a new tab)Change the pinion/motor, p. 29
- Exploded viewExploded view (Horizon PDF) (opens in a new tab)Motor, 23T pinion and 47T spur
- Parts listParts tech pack with Mod1 pinion options (Horizon PDF) (opens in a new tab)Pinion options, p. 2
Sources
- ARA5810V2T1horizonhobby.com (opens in a new tab)
- searchhorizonhobby.com (opens in a new tab)
- Manual (PDF)horizonhobby.com (opens in a new tab)
- Manual (PDF)horizonhobby.com (opens in a new tab)
- Manual (PDF)horizonhobby.com (opens in a new tab)
- ARA311043horizonhobby.com (opens in a new tab)
- interactive-exploded-viewhorizonhobby.com (opens in a new tab)
- ARA310920horizonhobby.com (opens in a new tab)
- ARA311050horizonhobby.com (opens in a new tab)
- SPMXSM4200horizonhobby.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
