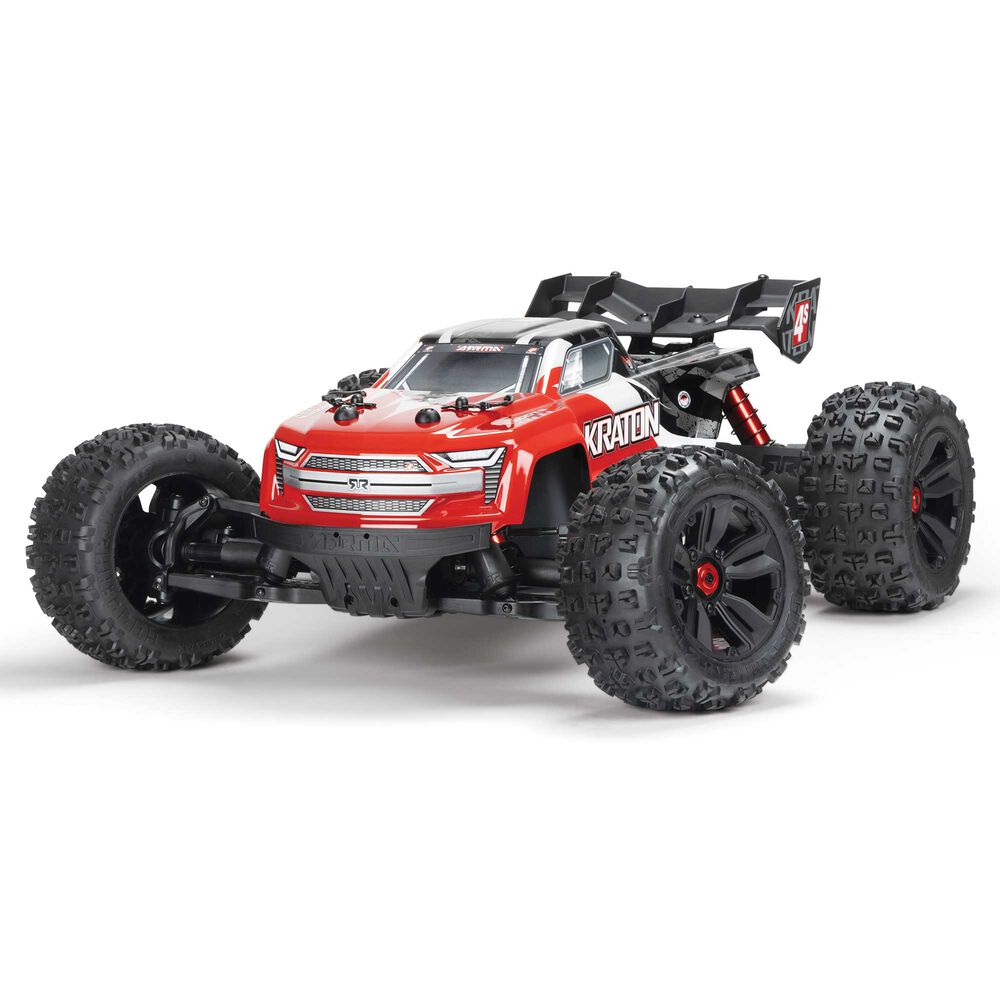

VehiclesArrma Kraton 4S BLX V2
Arrma Kraton 4S BLX V2
1/10 scale · ARA4408V2
- Top speed
- 52mphcalculated
- Final drive
- 12.50:1
- Tire
- 156mm
Open in Top Speedverified
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 13TStock | Stock |
| Spur | 57TStock | Stock |
| Transmission & axle | 2.85:1Stock | Stock |
| Spur ÷ pinion | 4.385:1Calculated | Calculated |
| Final drive | 12.50:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 156mmStock | Stock |
| Rollout | 39.2mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 2400KVStock | Stock |
| Battery | Up to 4SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | 51.9mph on 4SCalculated | Calculated |
| Motor speed | 35,520rpm, no loadCalculated | Calculated |
| Vehicle | ||
| Part number | ARA4408V2 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower.
Sources
Every figure on this page traces to one of these.
