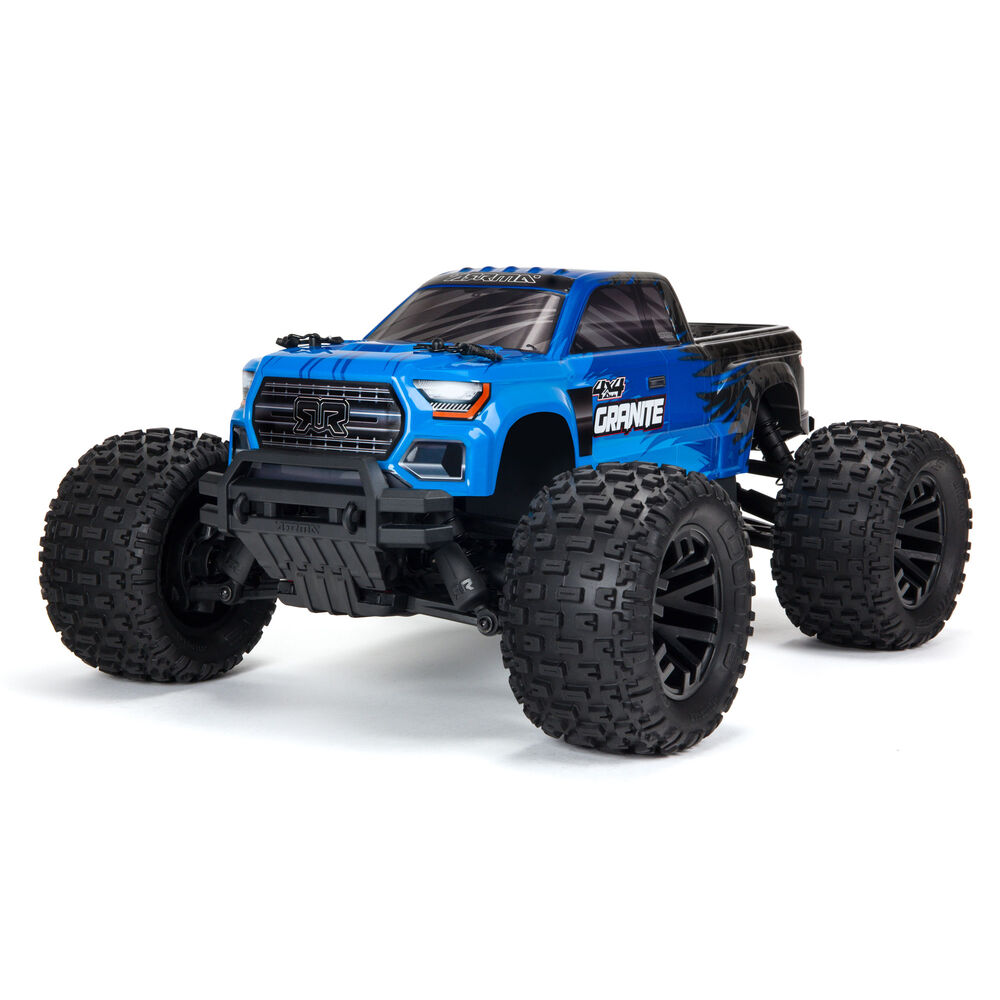

Arrma Granite 4X4 MEGA 550 V3
1/10 scale · monster truck · ARA4202V3
- Final drive
- 18.50:1
- Tire
- 128mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 14TStock | Stock |
| Spur | 91TStock | Stock |
| Transmission & axle | 2.85:1Stock | Stock |
| Spur ÷ pinion | 6.500:1Calculated | Calculated |
| Final drive | 18.50:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 128mmStock | Stock |
| Rollout | 21.7mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not published | |
| Battery | Up to 2SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | ARA4202V3 | |
| Scale | 1/10 | |
| Class | Monster truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 14T | 48P | Not published | ARAC7777 (opens in a new tab) |
| Spur | 91T | 48P | Not applicable | ARA311030 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The earlier brushed Granite 4X4 with a MEGA 550 12T motor, sold with battery and charger.
- Brushed, so there is no KV.
- The ESC is the Arrma MEGA brushed ESC, rated for 2S LiPo; the truck shipped with a 7-cell NiMH pack.
- Horizon prints Pinion 14T, Spur Gear 91T (48 pitch), Internal Gear Ratio 2.85 and Final Drive 18.5, and 91/14 x 2.85 = 18.53.
- The standard-parts list confirms the 14T and 91T gears and the 37T diff sets with 13T input gears.
- Horizon names the tread as dBoots Fortress MT; that tire's own page (ARA550086) prints an overall diameter of 5.0 in (128mm).
- Arrma's 30+ mph figure assumes optional gearing, so no speed check applies.
Documents
Sources
- ARA4202V3horizonhobby.com (opens in a new tab)
- searchhorizonhobby.com (opens in a new tab)
- ARA550086horizonhobby.com (opens in a new tab)
- ARAC7777horizonhobby.com (opens in a new tab)
- interactive-exploded-viewhorizonhobby.com (opens in a new tab)
- ARA311030horizonhobby.com (opens in a new tab)
- ARAG1005horizonhobby.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
